1400 Series Industrial Regulator

Single stage cylinder regulator for ultra-high pressure, industrial gas applications

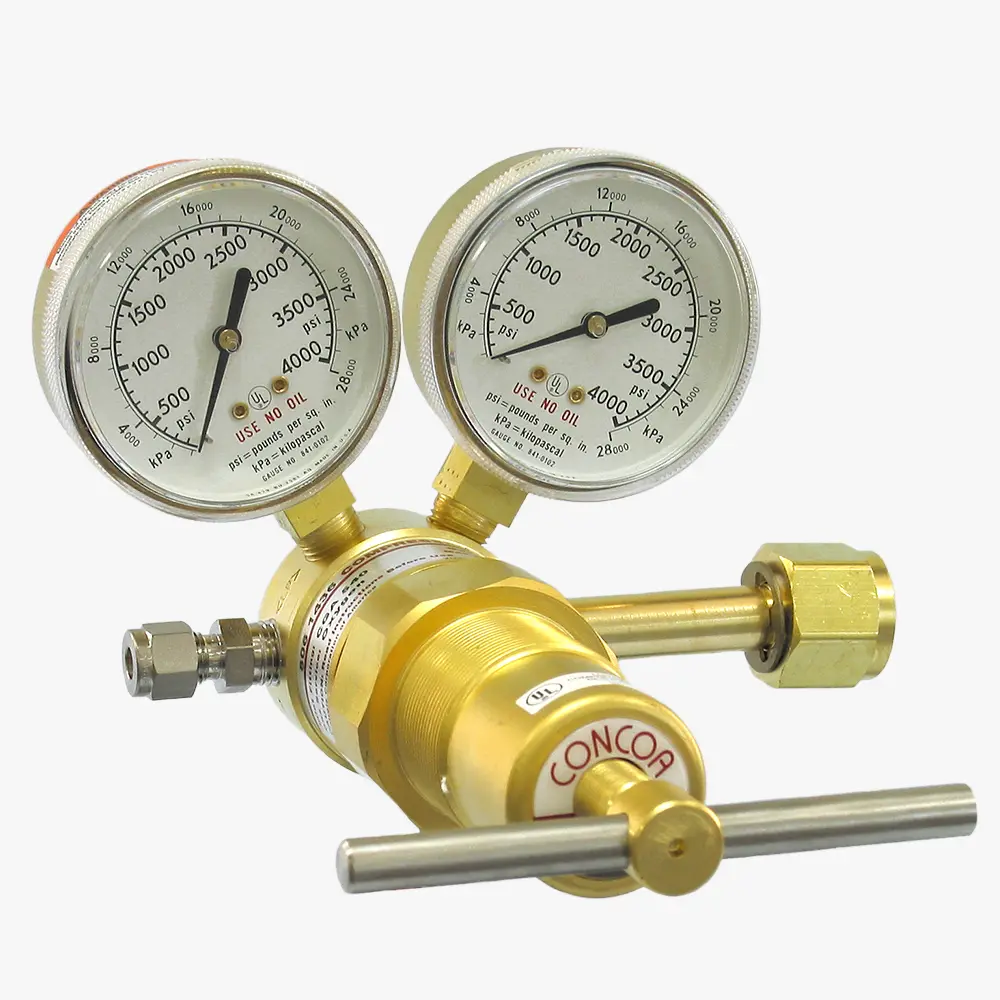

8061436-01-1 shown
Single stage cylinder regulator for ultra-high pressure, industrial gas applications

The 1400 Series ultra-high pressure regulator provides primary control of high pressure gas sources requiring outlet pressures up to 6000 PSIG (415 BAR). The heavy-duty internals enable high delivery pressures, while the brass piston design provides steady and reliable pressure control. The CONCOA 1400 Series regulator is designed for non-corrosive gas service and is ideal for dead-end pressurized systems.

  • Positive seat stop prevents seat deformation
  • FKM piston seals ensure accurate pressure control
  • CAPSULE® seat design supports reliable performance and longer life
  • Body: Brass barstock
  • Bonnet: Brass barstock
  • Gauges: 2 1/2 in (68 mm) diameter brass
  • Filter: 25-micron sintered bronze
  • Temperature range: -40°F - 140°F (-40°C - 60°C)
  • Cv: 0.15
  • Piston: Brass
  • Outlet connection: 1/4 in 316L stainless steel tube
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; CRN OH5216.5R2
◂ scroll to see more ▸
Part Number Gas Service Seat Inlet Connection Max Inlet Pressure Max Delivery Pressure Pressure Gauges
8061411-01-1 Hydrogen, Methane PTFE CGA 350 3000 PSIG
(210 BAR) 		1500 PSIG
(100 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-4000 PSIG/0-28,000 kPa
8061413-01-1 Oxygen PTFE CGA 540 3000 PSIG
(210 BAR) 		750 PSIG
(50 BAR) 		0-1500 PSIG/0-10,000 kPa
and 0-4000 PSIG/0-28,000 kPa
8061414-01-1 Inert Gas PTFE CGA 580 3000 PSIG
(210 BAR) 		750 PSIG
(50 BAR) 		0-1500 PSIG/0-10,000 kPa
and 0-4000 PSIG/0-28,000 kPa
8061415-01-1 Inert Gas PTFE CGA 580 3000 PSIG
(210 BAR) 		1500 PSIG
(100 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-4000 PSIG/0-28,000 kPa
8061416-01-1 Oxygen PTFE CGA 540 3000 PSIG
(210 BAR) 		1500 PSIG
(100 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-4000 PSIG/0-28,000 kPa
8061418-01-1 Breathing Air PTFE CGA 346 3000 PSIG
(210 BAR) 		1500 PSIG
(100 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-4000 PSIG/0-28,000 kPa
8061419-01-1 Inert Gas PTFE CGA 590 3000 PSIG
(210 BAR) 		1500 PSIG
(100 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-4000 PSIG/0-28,000 kPa
8061421-01-1 Hydrogen, Methane PCTFE CGA 695 3000 PSIG
(210 BAR) 		1500 PSIG
(100 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-4000 PSIG/0-28,000 kPa
8061424-01-1 Inert Gas PCTFE CGA 680 5500 PSIG
(380 BAR) 		750 PSIG
(50 BAR) 		0-1500 PSIG/0-10,000 kPa
and 0-6000 PSIG/0-42,000 kPa
8061425-01-1 Inert Gas PCTFE CGA 680 5500 PSIG
(380 BAR) 		1500 PSIG
(100 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-6000 PSIG/0-28,000 kPa
8061426-01-1 Oxygen PCTFE CGA 577 3500 PSIG
(240 BAR) 		1500 PSIG
(100 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-6000 PSIG/0-42,000 kPa
8061428-01-1 Breathing Air PCTFE CGA 347 5500 PSIG
(380 BAR) 		1500 PSIG
(100 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-6000 PSIG/0-42,000 kPa
8061431-01-1 Hydrogen, Methane PCTFE CGA 350 3000 PSIG
(210 BAR) 		2500 PSIG
(170 BAR) 		0-4000 PSIG/0-28,000 kPa
and 0-4000 PSIG/0-28,000 kPa
8061435-01-1 Inert Gas PTFE CGA 580 3000 PSIG
(210 BAR) 		2500 PSIG
(170 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-4000 PSIG/0-28,000 kPa
8061436-01-1 Oxygen PTFE CGA 540 3000 PSIG
(210 BAR) 		2500 PSIG
(170 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-4000 PSIG/0-28,000 kPa
8061438-01-1 Breathing Air PTFE CGA 346 3000 PSIG
(210 BAR) 		2500 PSIG
(170 BAR)		 0-4000 PSIG/0-280,000 kPa
and 0-4000 PSIG/0-28,000 kPa
8061439-01-1 Breathing Air PTFE CGA 590 3000 PSIG
(210 BAR) 		2500 PSIG
(170 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-4000 PSIG/0-28,000
8061441-01-1 Hydrogen, Methane PCTFE CGA 695 5500 PSIG
(380 BAR) 		4500 PSIG
(310 BAR)		 0-6000 PSIG/0-42,000 kPa
and 0-6000 PSIG/0-42,000 kPa
8061445-01-1 Hydrogen, Methane PCTFE CGA 680 5500 PSIG
(380 BAR) 		4500 PSIG
(310 BAR)		 0-6000 PSIG/0-42,000 kPa
and 0-6000 PSIG/0-42,000 kPa/
8061446-01-1 Oxygen PCTFE CGA 577 3500 PSIG
(240 BAR) 		2500 PSIG
(170 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-6000 PSIG/0-42,000 kPa/
8061448-01-1 Breathing Air PCTFE CGA 347 5500 PSIG
(380 BAR) 		4500 PSIG
(310 BAR)		 0-6000 PSIG/0-42,000 kPa
and 0-6000 PSIG/0-42,000 kPa
8061451-01-1 Hydrogen, Methane PCTFE CGA 695 5500 PSIG
(380 BAR) 		2500 PSIG
(170 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-6000 PSIG/0-42,000 kPa
8061455-01-1 Inert Gas PCTFE CGA 680 5500 PSIG
(380 BAR) 		2500 PSIG
(170 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-6000 PSIG/0-42,000 kPa
8061458-01-1 Breathing Air PCTFE CGA 347 5500 PSIG
(380 BAR) 		2500 PSIG
(170 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-6000 PSIG/0-42,000 kPa
8061461-01-1 Inert Gas PEEK CGA 677 6000 PSIG
(415 BAR) 		1500 PSIG
(100 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-10,000 PSIG/0-70,000 kPa
8061462-01-1 Inert Gas PEEK CGA 677 6000 PSIG
(415 BAR) 		2500 PSIG
(170 BAR)		 0-4000 PSIG/0-28,000 kPa
and 0-10,000 PSIG/0-70,000 kPa
8061465-01-1 Inert Gas PEEK CGA 677 6000 PSIG
(415 BAR) 		4500 PSIG
(310 BAR)		 0-6000 PSIG/0-42,000 kPa
and 0-10,000 PSIG/0-70,000 kPa
8061466-01-1 Inert Gas PEEK CGA 677 6000 PSIG
(415 BAR) 		6000 PSIG
(415 BAR) 		0-10,000 PSIG/0-70,000 kPa
and 0-10,000 PSIG/0-70,000 kPa
