2500 Series Regulator

Single stage cylinder preset regulator for balloon filling

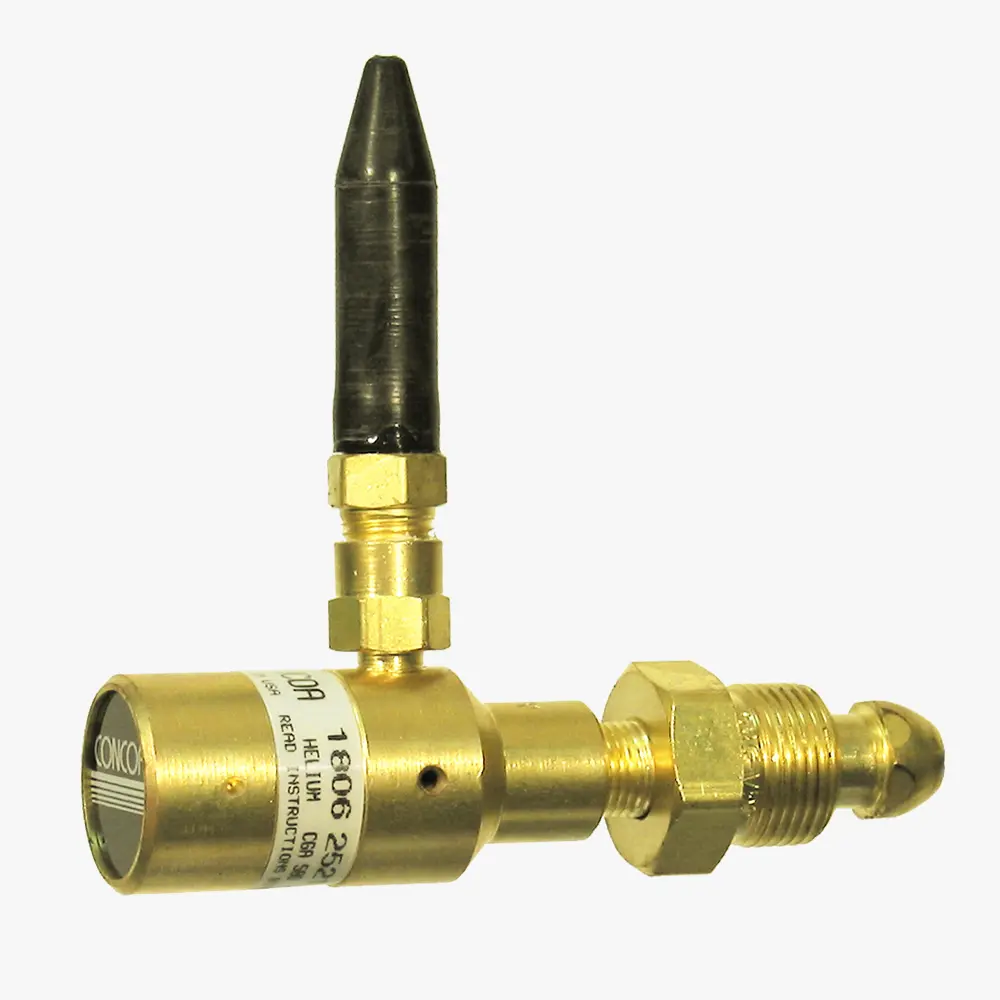

8062521-01-1 shown
Single stage cylinder preset regulator for balloon filling

The 2500 Series helium balloon filling regulator provides steady and reliable control of high pressure helium using inlet pressures up to 3000 PSIG (210 BAR). The rubber tilt valve enables a rapid and safe filling process, while the overpressure relief port mitigates damage to the regulator.

  • Rubber tilt valve ensures quick and safe fill
  • Overpressure relief port prevents regulator damage
  • Tie hook ready style prohibits accidental discharge
  • Max inlet pressure: 3000 PSIG (210 BAR)
  • Body: Brass barstock
  • Seat: PTFE
  • Filter: 10-micron sintered bronze
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Cv: 0.1
  • Inlet connections: Brass
  • Filling nozzle: Rubber tilt
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; CRN OC17947.5
◂ scroll to see more ▸
Part Number Description Inlet Connection Pressure Gauge
8062521-01-1 Preset Regulator for Helium Service without Cylinder Pressure Gauge CGA 580 N/A
8062522-01-1 Preset Regulator for Helium Service without Cylinder Pressure Gauge CGA 580H N/A
8062523-01-1 Preset Regulator for Helium Service with Cylinder Pressure Gauge CGA 580 0-4000 PSIG
8062524-01-1 Preset Regulator for Helium Service with Cylinder Pressure Gauge CGA 580H 0-4000 PSIG
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
2500 Series Special Purpose Regulators Catalog Page
English
IN2500SR
M
Download
Balloon-Fill Regulators Installation and Operation
English
ADI3008
B
Download
CRN File OC17947
English
CRNOC17947
26
