Active
302 Series Regulator
Four-port, chrome-plated brass barstock, single stage cylinder regulator for high purity inert gas applications

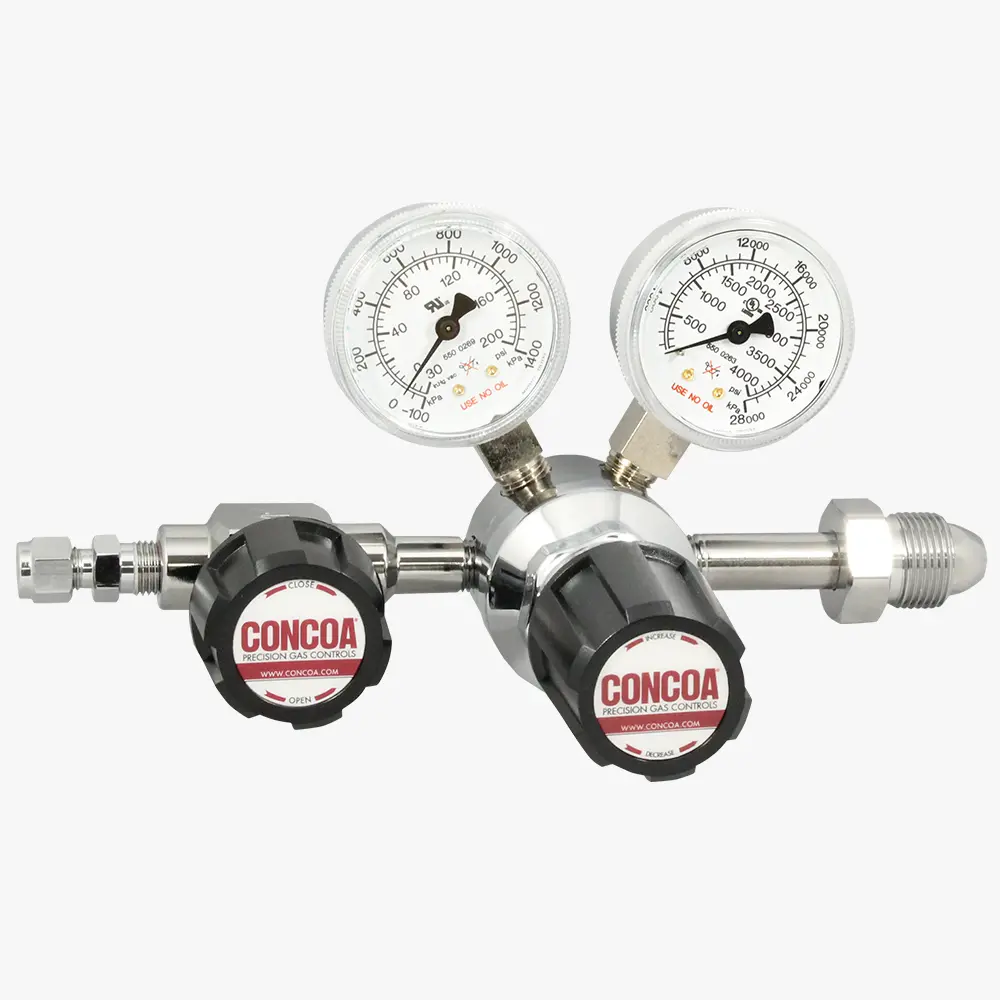

3023331-01-580 shown
The 302 Series single stage regulator is intended for primary pressure control of non-corrosive, high purity, or liquefied gases. Due to the pressure rise associated with high pressure cylinder depletion, CONCOA recommends single stage regulators for primary pressure control of cylinders filled under 500 PSIG (34 BAR) and in applications where minor fluctuations in outlet pressure due to diminishing inlet supply can be tolerated or where inlet pressure is constant.
- 316L stainless steel diaphragm protects against inboard diffusion
- CAPSULE® seat design features integral 360° filtration
- Field adjustable pressure limit supports application customization
- Rear panel mount eases installation
- Spectometric helium leak check verifies leak integrity
