5230 Series Resonator Regulator

Point-of-use regulator for carbon dioxide laser resonator gases

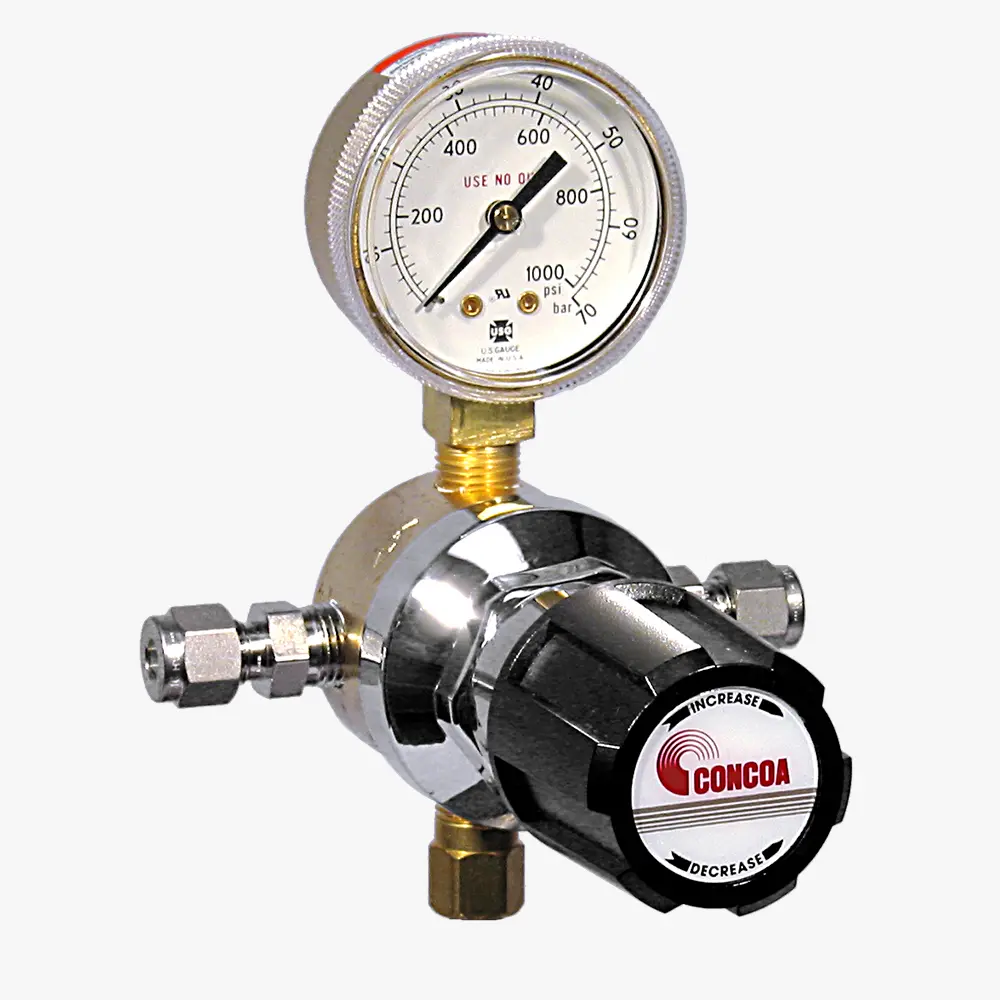

8065230-01-1 shown
Point-of-use regulator for carbon dioxide laser resonator gases

The 5230 Series resonator regulator is intended for primary pressure control of laser gases supplied from cryogenic liquid cylinders or other low-pressure sources where pressure fluctuations can be tolerated. The CONCOA 5230 Series resonator regulator is the right choice for material processing, shielding, and other industrial and manufacturing applications.

  • Rear panel mountable eases installation
  • CAPSULE® seat design provides maximum reliability and easy maintenance
  • 316L diaphragm prevents inboard diffusion
  • Low wetted surface area minimizes purge requirements
  • Field adjustable pressure limit supports application customization
  • Gas service: Non-corrosive laser gases
  • Max Inlet Pressure: 3000 PSIG (210 BAR)
  • Body: Brass barstock
  • Bonnet: Chrome-plated, die-cast zinc
  • Inlet/outlet connections: 1/4 in stainless steel compression tube fittings
  • Gauge: 2 in (50 mm) diameter brass
  • Seat: PTFE
  • Filter: 10-micron sintered bronze
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Diaphragm: 316L stainless steel
  • Cv: 0.2
  • Helium leak integrity: 1 x 10⁻⁸ scc/sec
  • Ports: 1/4 in FNPT
  • Internal seals: PTFE
  • Weight: 2.8 lbs (2.16 kg)
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; CRN OH5216.5R2
◂ scroll to see more ▸
Part Number Max Delivery Pressure Outlet Gauge
8065230-01-1 500 PSIG (35 BAR) 0-1000 PSIG/0-70 BAR
8065232-01-1 250 PSIG (17 BAR) 0-400 PSIG/0-27 BAR
8065233-01-1 100 PSIG (7 BAR) 30VAC-0-200 PSIG/-1VAC-0-14 BAR
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
5230 Series Regulators Catalog Page
English
LA5230R
J
Download
Regulators Installation and Operation Instructions
English
ADI1608
L
Download
CRN File OH5216
English
CRNOH5216
26
