5260 Series Liquid Cylinder Regulator

Single stage, four-port, liquid cylinder regulator for industrial laser process gases

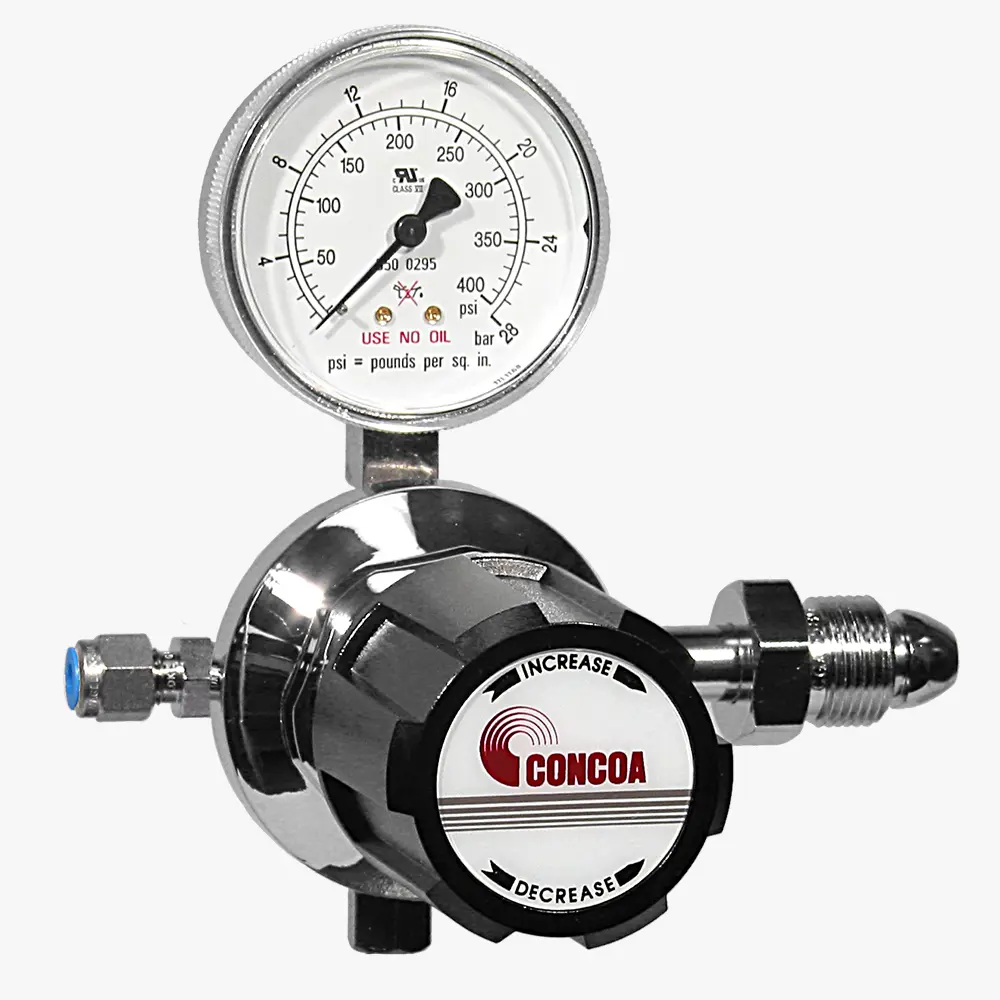

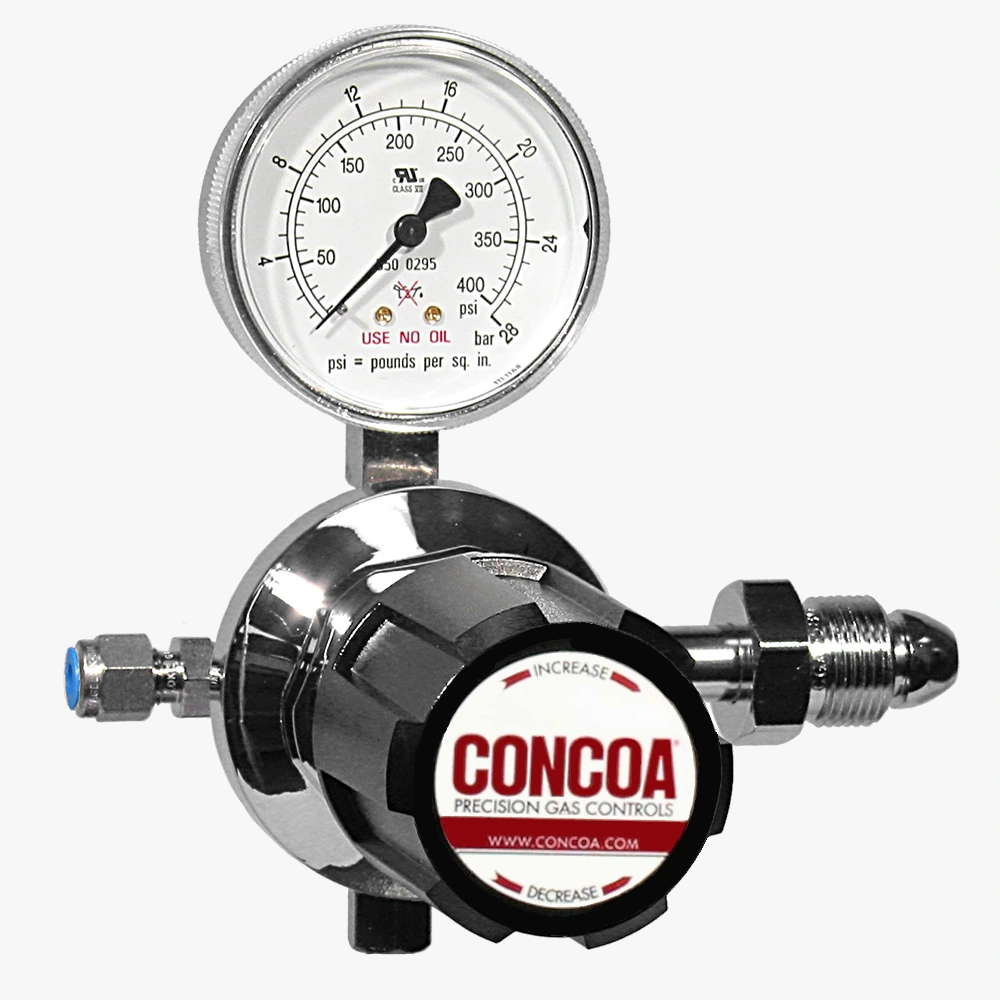

8065265-01-1 shown
Single stage, four-port, liquid cylinder regulator for industrial laser process gases

The 5260 Series regulator is designed specifically for primary pressure control of assist gases supplied from cryogenic liquid cylinders. The regulator is used in medium-flow applications up to 1500 SCFH (708 LPM), and medium pressure-flow applications up to 200 PSIG (14 BAR).

  • Large CAPSULE® seat design enables flow rates unobtainable with conventional regulators
  • Field adjustable pressure limit supports application customization
  • Convoluted 316L stainless steel diaphragm eliminates friction and ensures smooth pressure changes
  • Standard relief valve offers diaphragm and gauge protection
  • Max inlet pressure: 3000 PSIG (210 BAR)
  • Max delivery pressure: 200 PSIG (14 BAR)
  • Body: Chrome-plated forged brass
  • Bonnet: Chrome-plated, die-cast zinc
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Gauges: 2 1/2 in (68 mm) diameter brass
  • Ports: 1/4 in FNPT
  • Helium leak integrity: 1 x 10⁻⁸ scc/sec
  • Cv: 0.28
  • Seat: PTFE
  • Filter: 10-micron sintered bronze
  • Diaphragm: 316L stainless steel
  • Internal seals: PTFE
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; CRN OH5216.5R2
◂ scroll to see more ▸
Part Number Gas Service Inlet Connection Outlet Connection Pressure Gauge(s)
8065260-01-1 Oxygen, Nitrogen, Argon, Helium (inert gas) 1/4 in Stainless Steel
Compression Tube 		1/4 in Stainless Steel
Compression Tube 		0-400 PSIG/0-28 BAR Outlet
8065261-01-1 Carbon Dioxide CGA 320 1/4 in Stainless Steel
Compression Tube 		0-400 PSIG/0-28 BAR Outlet
8065263-01-1 Oxygen, Nitrogen, Argon, Helium (inert gas) 1/4 in FNPT 1/4 in FNPT 0-400 PSIG/0-28 BAR Outlet
8065265-01-1 Nitrogen, Argon, and Helium (inert gas) CGA 580 1/4 in Stainless Steel
Compression Tube 		0-400 PSIG/0-28 BAR Outlet
8065266-01-1 Oxygen CGA 540 1/4 in Stainless Steel
Compression Tube 		0-400 PSIG/0-28 BAR Outlet
8065267-01-1 Oxygen CGA 540 1/4 in Stainless Steel
Compression Tube 		0-400 PSIG/0-28 BAR Inlet and
0-4000 PSIG/0-280 BAR Outlet
8065268-01-1 Nitrogen, Argon, and Helium (inert gas) CGA 580 1/4 in Stainless Steel
Compression Tube 		0-400 PSIG/0-28 BAR Inlet and
0-4000 PSIG/0-280 BAR Outlet
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
5260 Series Liquid Cylinder Regulators Catalog Page
English
LA5260R
J
Download
Regulators Installation and Operation
English, Spanish, French
ADI2062
M
Related Products

Universal mounting bracket kit for CONCOA regulators
Regulator Mounting Bracket Kit
Universal mounting bracket kit for CONCOA regulators

Tee purge for high purity gas applications
502 Series Tee Purge
Tee purge for high purity gas applications

502 Series Straight Purge
Straight purge for high purity gas applications
