5500 Series Flowgauge Regulator

Single stage flowgauge regulator for medium duty MIG and TIG welding and blanketing applications

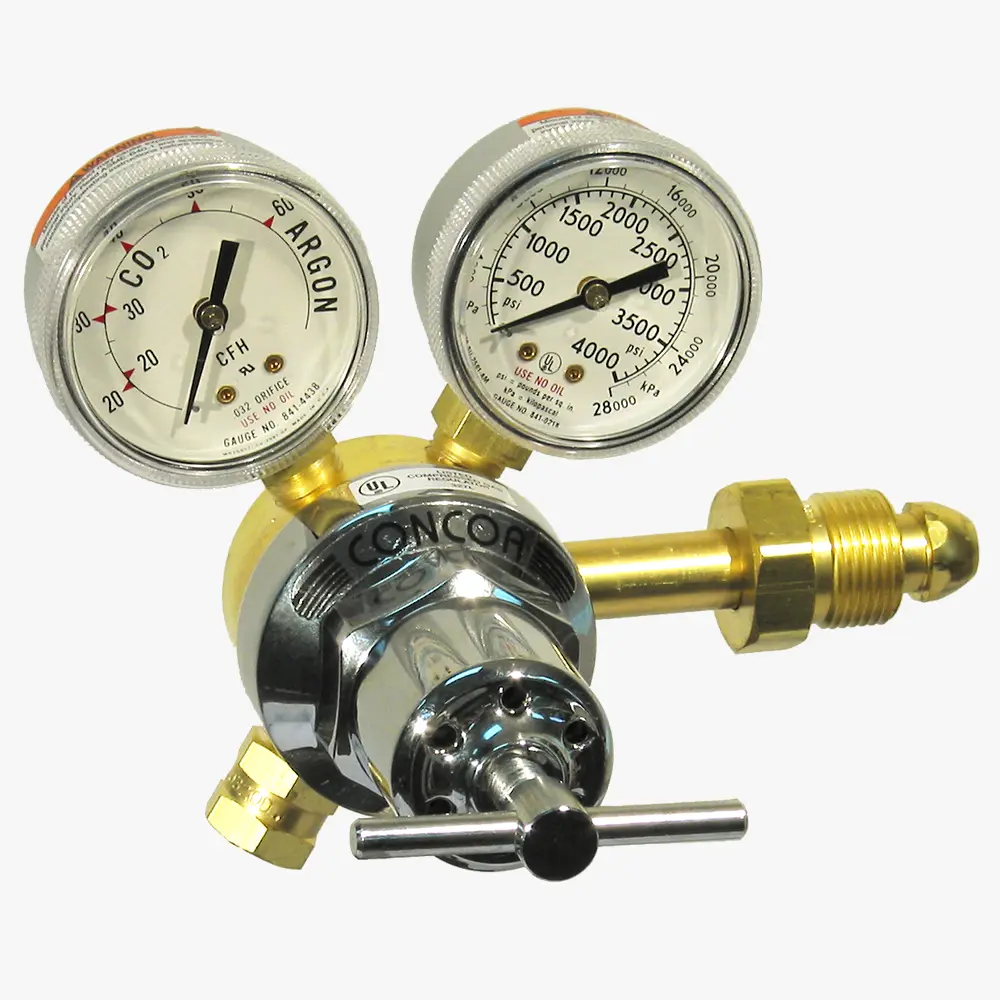

8065517-01-1 shown
Single stage flowgauge regulator for medium duty MIG and TIG welding and blanketing applications

The 5500 Series flowgauge regulator provides primary flow control for accurate measurement of gas flow in applications requiring inlet pressures up to 5500 PSIG (38,000 kPa) and flow rates up to 200 SCFH. The rugged forged brass construction provides high durability while the encapsulated seat design provides accurate pressure control and an extended component lifecycle.

  • Chloroprene diaphragm enables steady pressure control
  • Medium-large seat displacement permits good flow capacity
  • CAPSULE® seat assembly provides increased life and serviceability
  • Body: Forged brass
  • Bonnets: Chrome-plated, die-cast zinc
  • Gauges: 2 in (50 mm) diameter brass
  • Filter: 25-micron sintered bronze
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Diaphragm: Chloroprene
  • Outlet connections: 5/8 in -18 (B) RH Int
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; CRN OH5216.5R2
◂ scroll to see more ▸
Part Number Gas Service Seat Inlet Connection Max Inlet Pressure Gauges
8065505-01-1 Carbon Dioxide PTFE CGA 320 3000 PSIG
(210 BAR) 		15-50 SCFH Carbon Dioxide/15-60 SCFH Argon Flowgauge
and 0-4000 PSIG/0-28,000 kPa Inlet Gauge
8065517-01-1 Argon PTFE CGA 580 3000 PSIG
(210 BAR) 		20-60 SCFH Argon/20-30 SCFH Carbon Dioxide Flowgauge
and 0-4000 PSIG/0-28,000 kPa Inlet Gauge
8065547-01-1 Argon/Carbon Dioxide PCTFE CGA 680 5500 PSIG
(380 BAR) 		20-60 SCFH Argon/20-30 SCFH Carbon Dioxide Flowgauge
and 0-6000 PSIG/0-40,000 kPa Inlet Gauge
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
5500 Series Flowgauge Regulators Catalog Page
English
IN5500FG
M
Download
Regulators Installation and Operation Instructions
English
ADI1608
L
Download
Regulador Instrucciones Y Componentes
Spanish
ADI3049-ESP
C
Download
CRN File OH5216
English
CRNOH5216
26
Related Products

6590 Series Flowmeter Regulator
Rugged flowmeter regulator for medium heavy-duty heating and cutting applications

Single stage flowmeter regulator for medium heavy-duty welding and blanketing applications
6500 Series Flowmeter Regulator
Single stage flowmeter regulator for medium heavy-duty welding and blanketing applications

Rugged, flowmeter regulator for heavy-duty welding and blanketing applications
9400 Series Flowmeter Regulator
Rugged, flowmeter regulator for heavy-duty welding and blanketing applications

Single stage flowmeter regulator for medium duty welding and blanketing applications
5500 Series Flowmeter Regulator
Single stage flowmeter regulator for medium duty welding and blanketing applications

WARNING: This product can expose you to chemicals including Lead, Chromium, Nickel, and 1-3 Butadiene, which are known to the state of California to cause cancer, birth defects, or other reproductive harm. And, this product can expose you to chemicals including Bisphenol A (BPA) which is known to the State of California to cause female reproductive harm. For more information go to www. PSWarnings.ca.gov.
