6700 Series Manifold Regulator

High flow manifold regulator for heavy-duty industrial gas applications

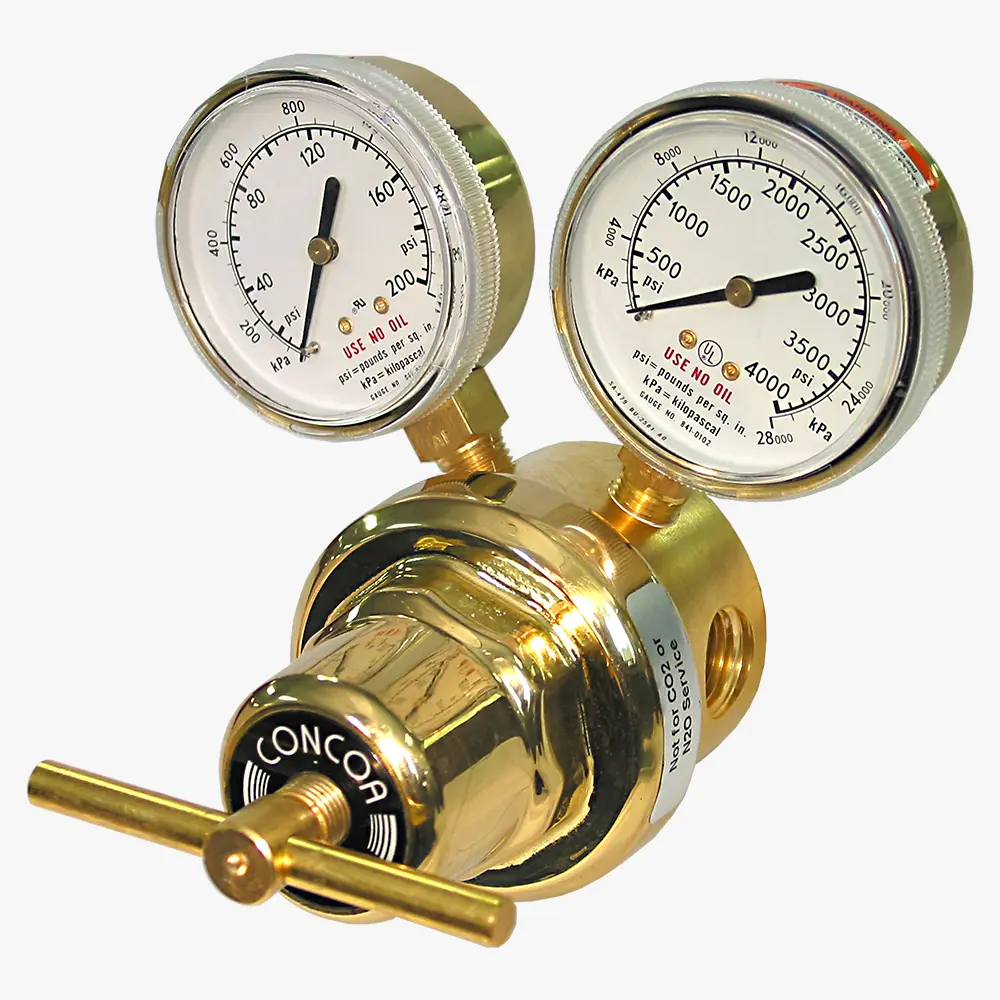

8066725-01-1 shown
High flow manifold regulator for heavy-duty industrial gas applications

The 6700 Series manifold regulator provides steady and reliable pressure control in industrial gas manifold applications requiring high flow rates. The balanced stem seat design mitigates fluctuations in outlet pressure caused by variable inlet pressures while the large orifice seat and 1/2-inch ports provide high flow capacity.

  • Pressure ranges from 0-15 PSIG (0-1 BAR) to 0-200 PSIG (0-14) supports a broad range of applications
  • Balanced stem seat design provides steady pressure control even with decaying inlet conditions
  • Rugged forged brass bonnet offers high durability for industrial applications
  • Max inlet pressure: (without peripherals): 3000 PSIG (210 BAR)
  • Body: Brass barstock
  • Bonnet: Forged brass
  • Gauges: 2 1/2 in (62 mm) diameter brass
  • Filter: 40-micron 316L stainless steel
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Inlet/Outlet connections: 1/2 in FNPT
  • Diaphragm: Chloroprene
  • Cv: 2.0
  • Ports: 1/4 in FNPT (gauge and relief ports)
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; CRN OF11809.2
◂ scroll to see more ▸
Part Number Gas Service Seat Max Delivery Pressure Pressure Gauges Inlet Position
8066700-01-1 Acetylene Chloroprene 15 PSIG (1 BAR) 0-30 PSIG/0-200 kPa and
0-400 PSIG/0-2800 kPa 		RH
8066715-01-1 Carbon Dioxide,
Inert Gas		 EPDM 15 PSIG (1 BAR) 0-30 PSIG/0-200 kPa and
0-400 PSIG/0-2800 kPa 		RH
8066725-01-1 Inert Gas FKM 120 PSIG (8 BAR) 0-200 PSIG/0-1400 kPa and
0-4000 PSIG/0-28,000 kPa 		RH
8066740-01-1 Fuel Gas Chloroprene 40 PSIG (3 BAR) 0-60 PSIG/0-400 kPa and
0-400 PSIG/0-2800 kPa 		RH
8066745-01-1 Inert Gas FKM 200 PSIG (14 BAR) 0-400 PSIG/0-2800 kPa and
0-4000 PSIG/0-28,000 kPa 		RH
8066753-01-1 Carbon Dioxide,
Inert Gas		 EPDM 120 PSIG (8 BAR) 0-200 PSIG/0-1400 kPa and
0-4000 PSIG/0-28,000 kPa 		RH
8066754-01-1 Carbon Dioxide,
Inert Gas		 EPDM 200 PSIG (14 BAR) 0-400 PSIG/0-2800 kPa and
0-4000 PSIG/0-28,000 kPa 		RH
8066770-01-1 Acetylene Chloroprene 15 PSIG (1 BAR) 0-30 PSIG/0-200 kPa and
0-400 PSIG/0-2800 kPa 		LH
8066771-01-1 Carbon Dioxide,
Inert Gas 		EPDM 15 PSIG (1 BAR) 0-30 PSIG/0-200 kPa and
0-400 PSIG/0-2800 kPa 		LH
8066772-01-1 Fuel Gas Chloroprene 40 PSIG (3 BAR) 0-60 PSIG/0-400 kPa and
0-400 PSIG/0-2800 kPa 		LH
8066773-01-1 Inert Gas FKM 120 PSIG (8 BAR) 0-200 PSIG/0-1400 kPa and
0-4000 PSIG/0-28,000 kPa		 LH
8066774-01-1 Inert Gas FKM 200 PSIG (14 BAR) 0-400 PSIG/0-1400 kPa and
0-4000 PSIG/0-28,000 kPa 		LH
8066775-01-1 Carbon Dioxide,
Inert Gas 		EPDM 120 PSIG (8 BAR) 0-200 PSIG/0-1400 kPa and
0-4000 PSIG/0-28,000 kPa 		LH
8066776-01-1 Carbon Dioxide,
Inert Gas		 EPDM 200 PSIG (14 BAR) 0-400 PSIG/0-2800 kPa and
0-4000 PSIG/0-28,000 kPa 		LH
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
6700 Series Manifold Regulators Catalog Page
English
IN6700MR
M
Download
Regulators Installation and Operation Instructions
English
ADI1608
L
Download
CRN File OH5216
English
CRNOH5216
26
