Regulator gauges for CONCOA industrial regulators

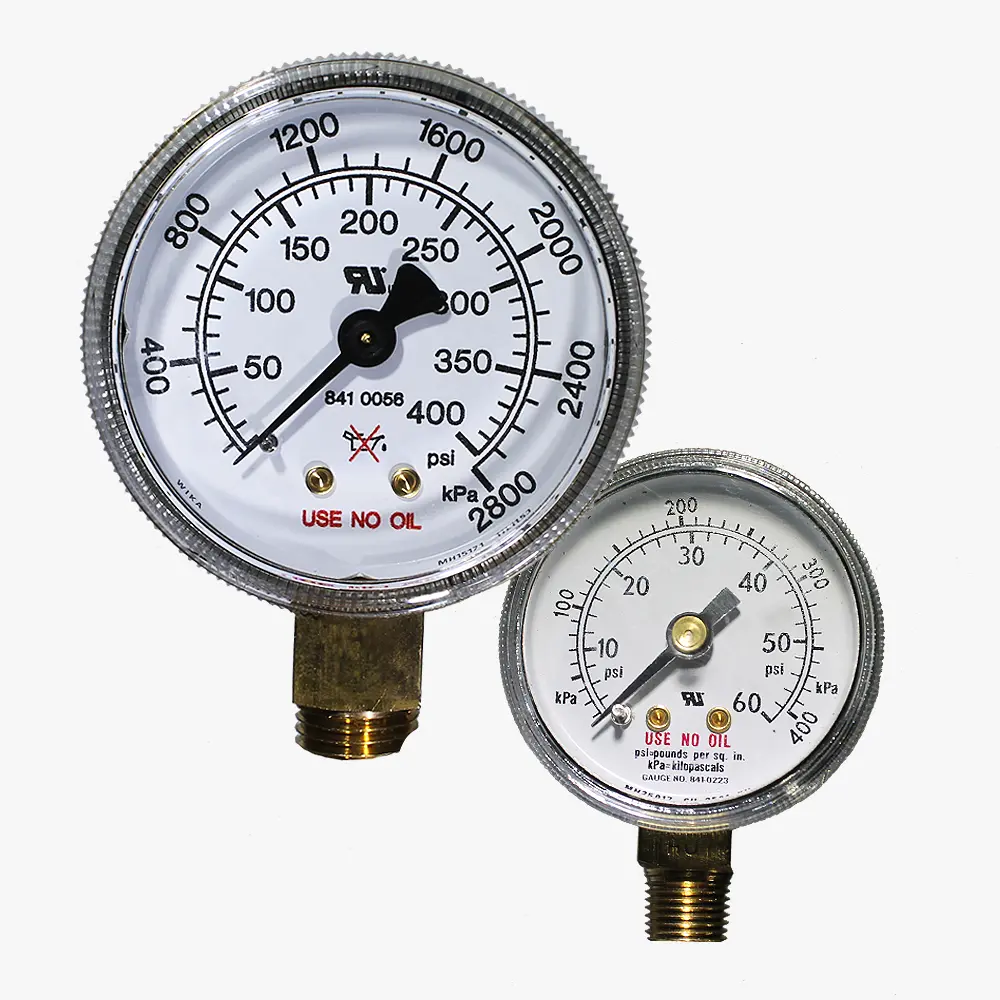

8410233 and 8410056 shown
Regulator gauges for CONCOA industrial regulators

CONCOA industrial gauges are designed to provide steady and reliable pressure display in any processing environment worldwide. Gauge sizes and outlet ranges combined with high durability materials deliver the flexibility and reliability users demand in industrial gas applications.

  • Pressure/Flow ranges from 0-6000 PSIG and 0-2000 SCFH accommodates a wide range of industrial applications
  • Bottom or center back mount allows easy installation
  • Spring-suspended pin movement provides high reliability and durability
  • Window: Shatter-resistant polycarbonate
  • Accuracy: Grade B ±3/2/3% of full scale
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; UL listed; CRN OF2026.2 (WIKA Gauges); CRN OF8241.5 (Ametek Gauges)
◂ scroll to see more ▸
Part Number Description Pressure/Flow Range Increments
8410003 2.5 in Diameter, 1/4 in MNPT, Brass-plated Stainless Steel Case 0-30 PSIG/0-200 kPa 5 PSIG/50 kPa
8410005 2.5 in Diameter, 1/4 in MNPT, Brass-plated Stainless Steel Case 0-200 PSIG/0-1400 kPa 40 PSIG/200 kPa
8410007 2.5 in Diameter, 1/4 in MNPT, Brass-plated Stainless Steel Case 0-400 PSIG/0-2800 kPa 50 PSIG/400 kPa
8410014 2.5 in Diameter, 1/4 in MNPT, Brass-plated Stainless Steel Case 0-100 PSIG/0-700 kPa 50 PSIG/100 kPa
8410056 2 in Diameter, 1/4 in MNPT, Brass-plated Stainless Steel Case 0-400 PSIG/0-2800 kPa 5 PSIG/50 kPa
8410057 2 in Diameter, 1/4 in MNPT, Brass-plated Stainless Steel Case 0-30 PSIG, 0-200 kPa 5 PSIG/50 kPa
8410076 2 in Diameter, 1/4 in MNPT, Brass-plated Stainless Steel Case 0-60 PSIG/0-400 kPa 10 PSIG/100 kPa
8410077 2.5 in Diameter, 1/4 in MNPT, Brass-plated Stainless Steel Case 0-60 PSIG/0-400 kPa 10 PSIG/100 kPa
8410098 2 in Diameter, 1/4 in MNPT, Brass-plated Stainless Steel Case 0-1500 PSIG/0-10,000 kPa 300 PSIG/2000 kPa
8410102 2.5 in Diameter, 1/4 in MNPT, Brass-plated Stainless Steel Case 0-4000 PSIG/0-28,000 kPa 500 PSIG/4000 kPa
8410124 1.5 in Diameter, 1/8 in MNPT, Polished Brass Case 0-200 PSIG/0-1400 kPa 40 PSIG/200 kPa
8410126 1.5 in Diameter, 1/8 in MNPT, Polished Brass Case 0-2000 PSIG/0-14,000 kPa 400 PSIG/2000 kPa
8410158 1.5 in Diameter, 1/8 in MNPT, Polished Brass Case 0-200 SCFH 25 SCFH
8410207 1.5 in Diameter, 1/8 in MNPT (back mount),
Polished Brass Case		 0-4000 PSIG 500 PSIG
8410223 1.5 in Diameter, 1/8 in MNPT, Brass-plated Stainless Steel Case 0-60 PSIG/0-400 kPa 10 PSIG/100 kPa
8410224 1.5 in Diameter, 1/8 in MNP, Brass-plated Stainless Steel Case 0-400 PSIG/0-2800 kPa 100 PSIG/400 kPa
8410225 2.5 in Diameter, 1/4 in MNPT, Brass-plated Stainless Steel Case 0-30 PSIG/0-210 kPa 5 PSIG/25 kPa
8414437 2 in Diameter, 1/4 in MNPT, Brass-plated Stainless Steel Case 20-60 SCFH Argon/
20-50 SCFH Carbon Dioxide		 10 SCFH
8414438 2 in Diameter, 1/4 in MNPT, Brass-plated Stainless Steel Case 20-60 SCFH Argon/
20-30 SCFH Carbon Dioxide		 10 SCFH
8416000 2.5 in Diameter, 1/4 in MNPT, Brass-plated Stainless Steel Case 0-6000 PSIG/0-42,000 kPa 1000 PSIG/5000 kPa
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Accessories: Guards~ Wrenches and Gauges Catalog Page
English
INGG1
M

WARNING: This product can expose you to chemicals including Lead, Chromium, Nickel, and 1-3 Butadiene, which are known to the state of California to cause cancer, birth defects, or other reproductive harm. And, this product can expose you to chemicals including Bisphenol A (BPA) which is known to the State of California to cause female reproductive harm. For more information go to www. PSWarnings.ca.gov.
