Tube Trailer Hose

Flexible all-metal hose designed for use in tube trailer applications

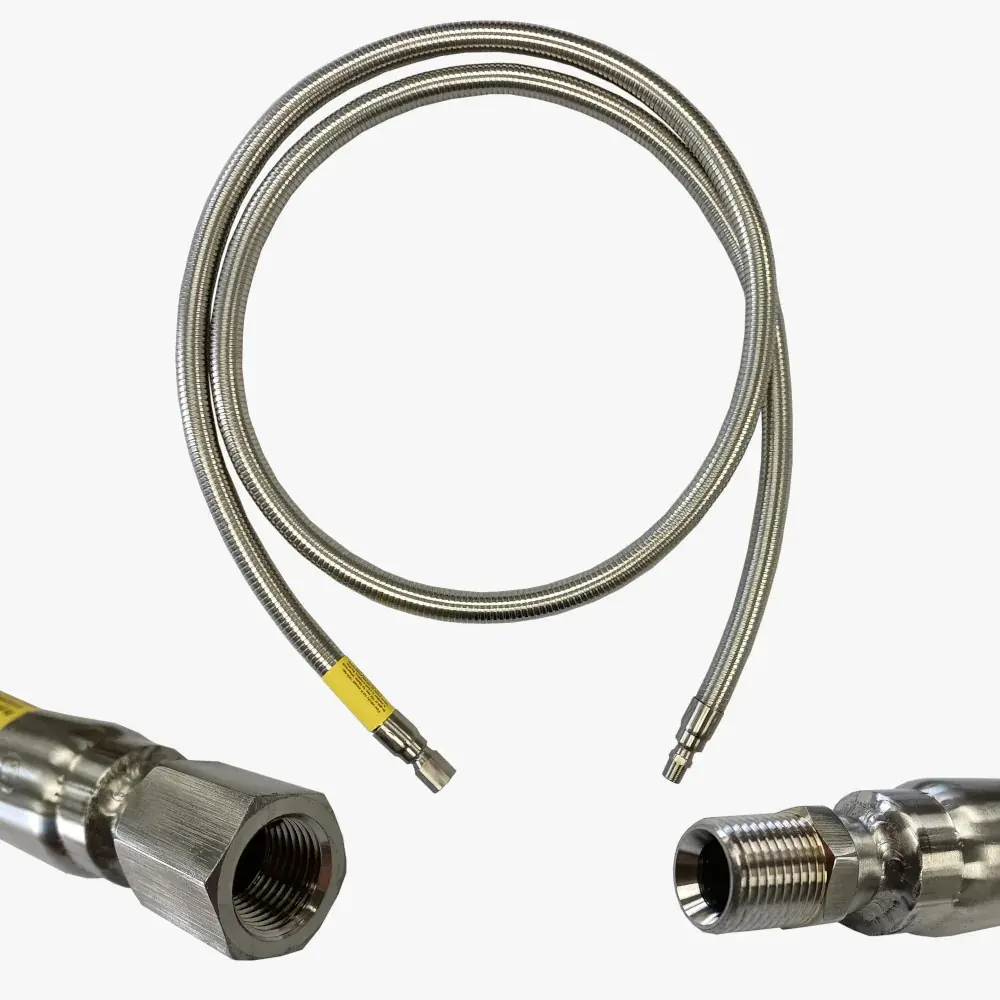

5290260 shown
Flexible all-metal hose designed for use in tube trailer applications

CONCOA Tube Trailer Hose with higher working pressure and close-packed inner core for faster flow are specifically designed for use in tube trailer discharge or as a flexible line for large cylinder manifolds. These zero permeation hoses meet the purity requirements of laser gases and are suitable for flammable, toxic, high-purity, and small molecule gases.

  • Heavy-duty, 316L stainless steel end fittings provide high durability and long life
  • All-welded construction eliminates permeation
  • Close-packed, corrugated 316L stainless steel inner core offers extreme flexibility
  • Kink-resistant, full armor casing protects the hose from damage and abrasions
  • Double stainless steel braid between core and outer casing promotes hose pressure containment
  • Max working pressure: 3,700 PSIG (255 BAR)
  • Minimum burst pressure: 14,800 PSIG (1020 BAR)
  • Minimum bend radius: 8 in (10 cm)
  • Inner core: 316L stainless steel
  • Outer casing: Stainless steel armor
  • Inner diameter: 0.500 in
  • Outer diameter: 1.25 in
  • Connections: 1/2 in FNPT x 1/2 in MNPT 316L stainless steel
  • Temperature range: -450°F to 1500°F (-265°C to 815°C)
  • Conformances: Cleaned for oxygen service; CRN OD18143.50
◂ scroll to see more ▸
Part NumberDescription
5290260 12 ft (3.7 m) Tube Trailer Hose
5290261 18 ft (5.5 m) Tube Trailer Hose
529026224 ft (7.3 m) Tube Trailer Hose
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Tube Trailer and Flexible Hoses Catalog Page
English
INFH1
M

WARNING: This product can expose you to chemicals including Lead, Chromium, Nickel, and 1-3 Butadiene, which are known to the state of California to cause cancer, birth defects, or other reproductive harm. And, this product can expose you to chemicals including Bisphenol A (BPA) which is known to the State of California to cause female reproductive harm. For more information go to www. PSWarnings.ca.gov.
