205 Series Regulator

Four-port, chrome-plated forged brass, point-of-use regulator for high purity inert gas applications

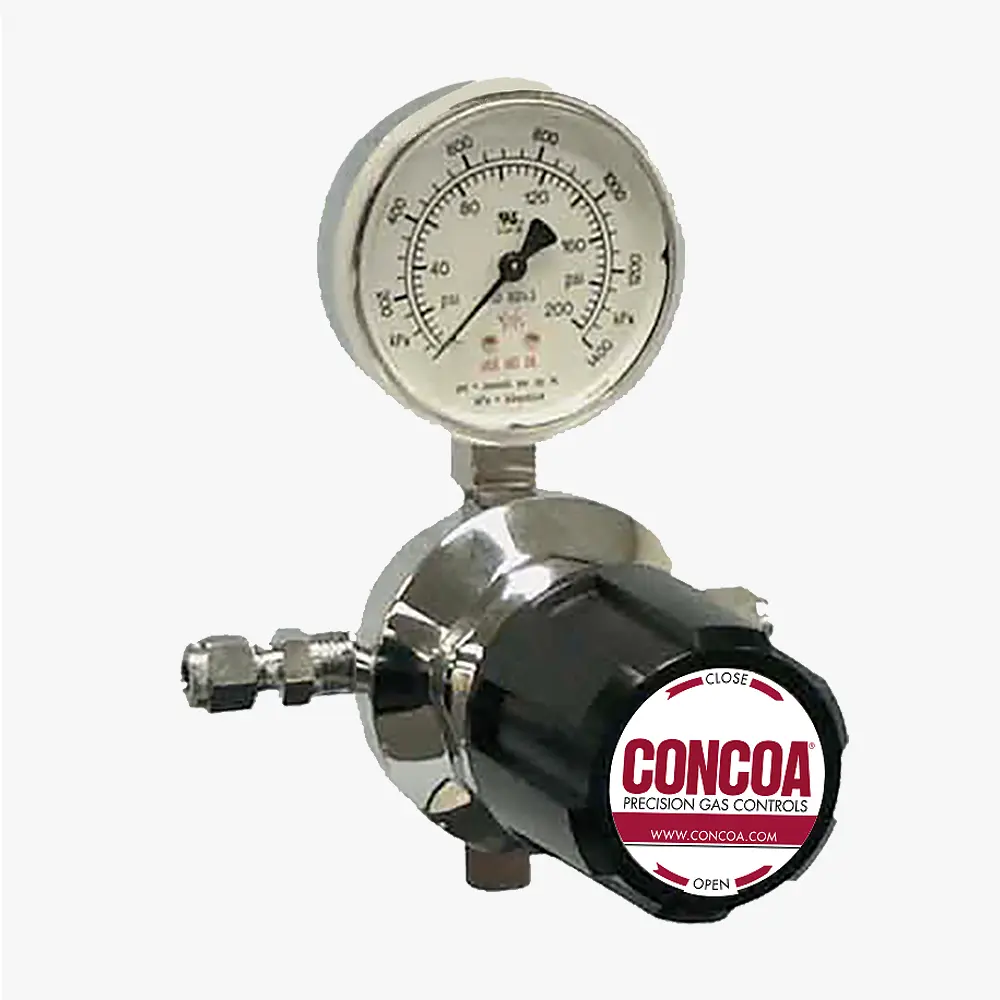

2053021-01-TF4 shown

The 205 Series regulator provides secondary pressure control of non-corrosive, liquified, high purity inert gases (up to grade 4.5) or point-of-use pressure control in high purity gas distribution systems. Like almost all CONCOA regulators, the maximum inlet pressure for the CONCOA 205 Series line regulator is at least 3000 PSIG (210 BAR) or greater, depending on system configuration. Available options installed at the factory permit these regulators to be configured as a single station manifold with or without purge.

  • 316L stainless steel diaphragm prevents inboard diffusion
  • CAPSULE® seat design features integral 360° filtration
  • 3000 PSIG (210 BAR) inlet pressure rating permits safe use with high pressure cylinders
  • Standard relief valve protects diaphragm and gauges
  • Spectometric helium leak check verifies leak integrity
  • Max inlet pressure (bare body): 3000 PSIG (210 BAR)
  • Body: Chrome-plated forged brass
  • Bonnet: Chrome-plated, die-cast zinc
  • Gauge: 2 1/2 in (68 mm) diameter plated case
  • Seat: PTFE
  • Filter: 10-micron sintered bronze
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Diaphragm: 316L stainless steel
  • Cv: 0.28
  • Helium leak integrity: 1 x 10⁻⁸ scc/sec
  • Internal seal: PTFE
  • Ports (bare body): 1/4 in FNPT
  • Conformances: Cleanliness meets or exceeds CGA G-4-1; PED 2014/68/EU; ANSI/ASME B40.1; CRN OH5216
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
Document
Language
ID Number
Revision
205 Series Regulators Catalog Page
English
RS205S
AG
Regulators, Reguladores, Détendeurs Installation and Operation Instructions
English, Spanish, French
ADI2062
M
CRN File OH5216
English
CRNOH5216
26
