304 Series Regulator

Three-port, chrome-plated brass barstock, point-of-use regulator for high purity inert gas applications

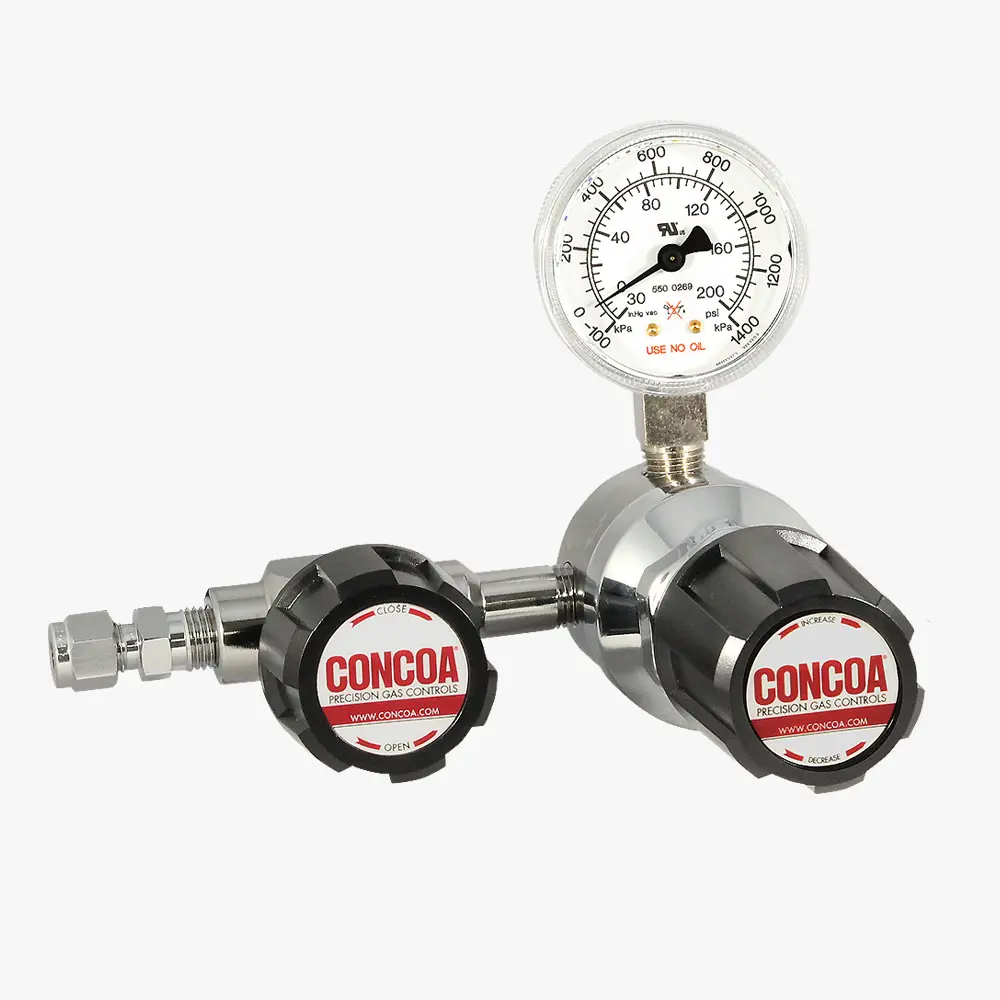

3043031-01-000 shown
Single stage point-of-use regulator for high purity inert gas applications

The 304 Series single stage, pressure reducing regulator decreases delivery pressure in one step. They are intended for secondary pressure control of non-corrosive, liquefied, or high purity (up to grade 5.5) gases or as point-of-use pressure control in high purity gas distribution systems. With features like high purity compatibility and durable construction, CONCOA 300 Series single stage regulators are a cost-effective option for final line regulation in applications that can tolerate fluctuations in outlet pressure due to diminishing inlet supply. Like almost all CONCOA regulators, the maximum inlet pressure for the CONCOA 304 Series regulator is at least 3000 PSIG (210 BAR) or more, depending on the configuration.

  • 316L stainless steel diaphragm prevents inboard diffusion
  • CAPSULE® seat design features integral 360° filtration
  • Low wetted surface area minimizes purge requirements
  • Rear panel mount eases installation
  • Spectrometric helium leak check verifies leak integrity
  • Max inlet pressure (bare body): 3000 PSIG (210 BAR)
  • Body: Chrome-plated brass barstock
  • Bonnet: Chrome-plated, die-cast zinc
  • Gauges: 2 in (50 mm) diameter plated case
  • Seat: PTFE
  • Filter: 10-micron sintered bronze
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Diaphragm: 316L stainless steel
  • Cv: 0.1
  • Helium leak integrity: 1 x 10⁻⁸ scc/sec
  • Internal seals: PTFE
  • Ports (bare body): 1/4 in FNPT
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; PED 2014/68/EU; ANSI/ASME B40.1; CRN OH5216
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
304 Series Regulators Catalog Page
English
RS304S
AH
Download
Regulators, Reguladores, Détendeurs Installation and Operation Instructions
English, Spanish, French
ADI2062
M
Download
CRN File OH5216
English
CRNOH5216
26
