530 Series Switchover

Brass pressure differential switchover for ultra-high pressure gas applications

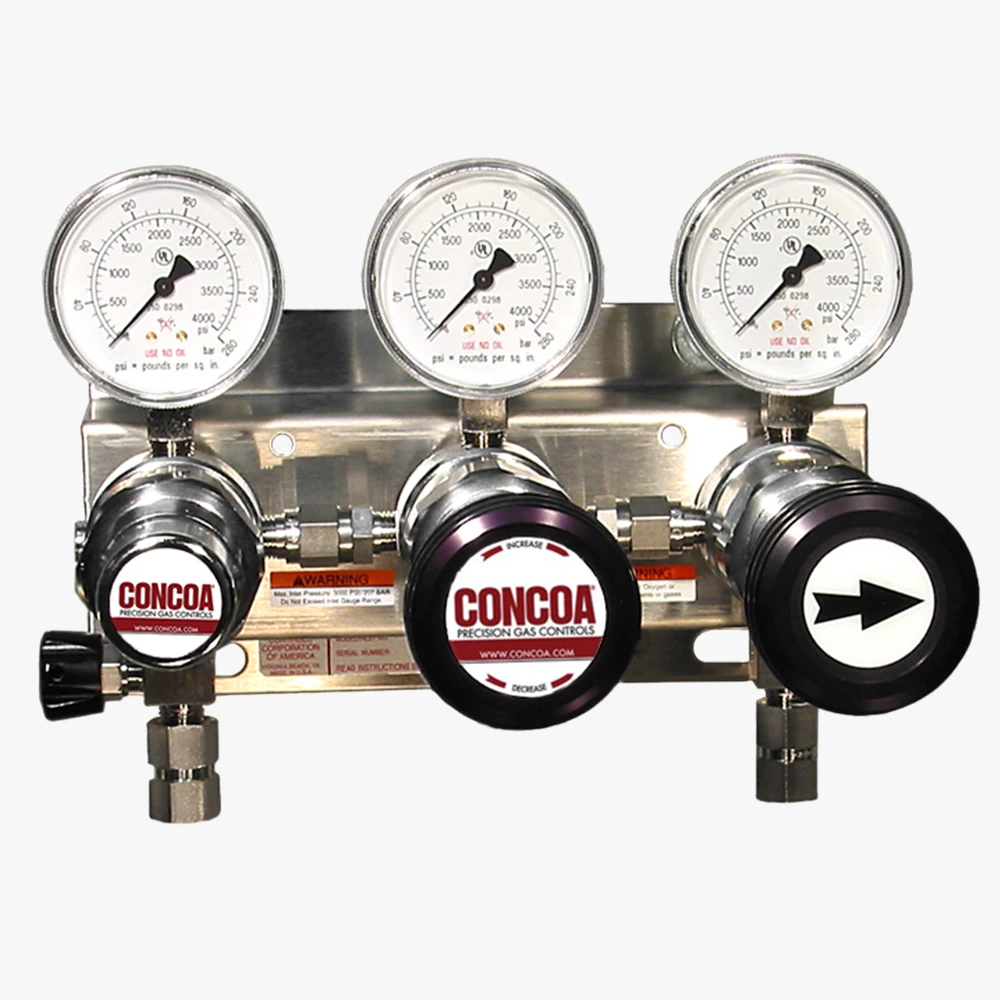

5301112-01-000 shown

The 530 Series Switchover System provides a continuous supply of non-corrosive, non-oxidizing gas in applications requiring 400 PSIG (27.6 BAR) or more. The system includes options for multiple inlet configurations permitting use with up to two cylinders per side. The CONCOA 530 Series pressure differential switchover is constructed from chrome-plated brass and is ideal for use with nitrogen, helium, argon, or hydrogen, where cylinder fill pressures can be as high as 6000 PSIG (415 BAR). Optional Altos 2 remote alarm capability provides audible and visible warnings of cylinder depletion.

  • 492 Series style regulators with CAPSULE® seat design increases serviceability and life
  • Single knob priority valve permits easy switch of cylinder priority
  • Optional piston sensed outlet regulator provides stable line pressure during a changeover
  • Check valve in optional regulator hose inlet gland prevents contamination and backflow
  • Max inlet pressure: 3000 PSIG (210 BAR); 4500 PSIG (310 BAR); or 6000 PSIG (415 BAR)
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Gauges: 2 1/2 in (68 mm) diameter chrome-plated brass (non-pressure switch models); 2 1/2 in (68 mm) diameter stainless steel (pressure switch models)
  • Outlet connections: 1/4 in compression tube fitting
  • Cv: 0.1
  • Regulator bodies: Chrome-plated brass barstock
  • Cartridges: Brass barstock
  • Seats: Arlon® (switchover regulators); PCTFE (line regulators)
  • Filters: 10-micron sintered bronze
  • Internal seals: FKM
  • Weight: 22.5 lbs (10.2 kg)
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; PED 2014/68/EU; CRN OH5216.5; CRN OC17947.5
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
ID Number
530 Series Switchovers Catalog Page
530 Series Automatic Switchover Systems Installation and Operation
CRN File OC17947
CRN File OH5216
