5F Series Custom Modular Point-of-Use Panel
Custom-built modular point-of-use panels for high purity laboratory applications

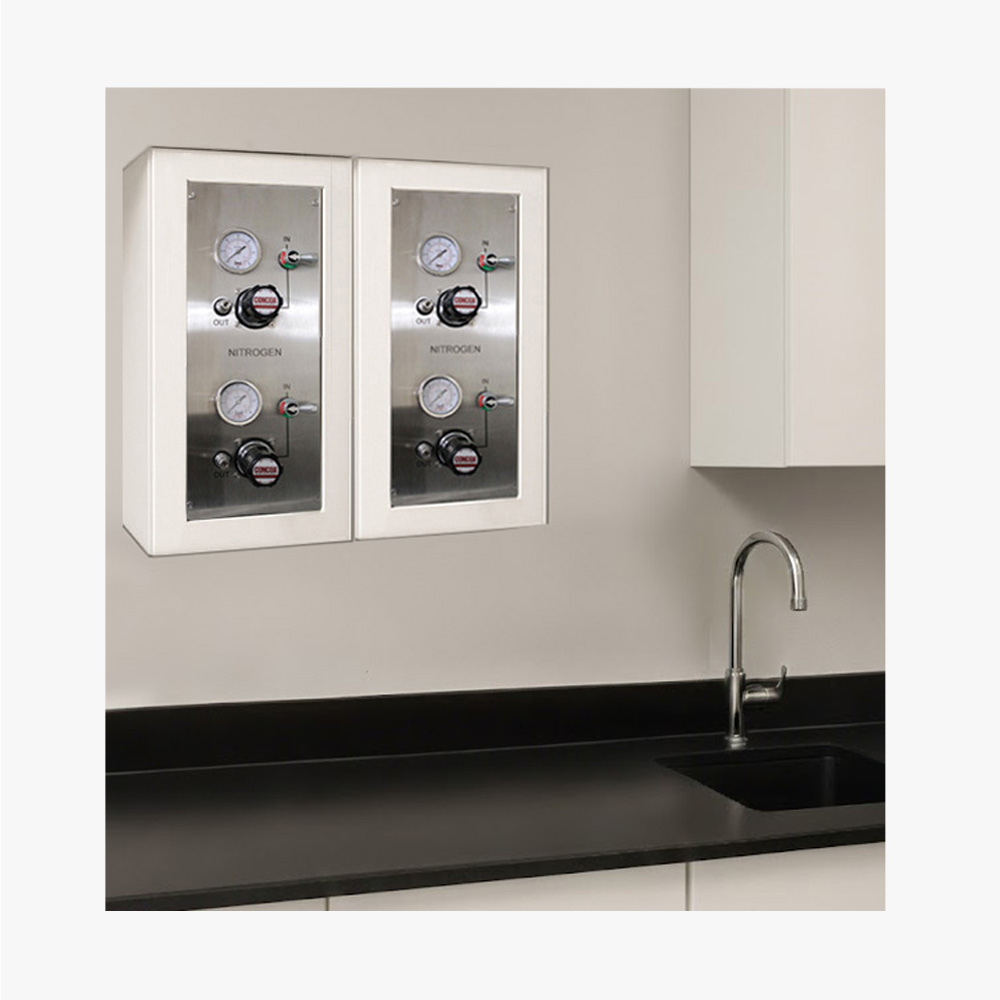

casework installation shown
5F Series Custom Modular Point-of-Use Panels are specifically engineered for critical analytical applications demanding high purity and precise control, as well as the flexibility required for today’s dynamic laboratory environments. 5F modular panels offer highly customizable, cost-effective solutions tailored to application-specific demands by incorporating a range of quality fittings, regulators, purifiers, and flow devices into a single, compact point-of-use panel. The design process begins with defining operational requirements, which in-house engineers translate into a detailed drawing that includes main and branch gas lines, pressure regulation points, and the full scope of customized, integrated components within the point-of-use panel.
The engineer's drawing then becomes the primary reference for verifying compliance with design parameters, operational considerations, and applicable regulatory standards. Upon customer approval, the custom designed panel is manufactured in strict accordance with relevant governing codes within CONCOA's ISO 9001-certified quality environment, ensuring precision, safety, and long-term reliability. Regardless of gas service, all fabricated components are cleaned to meet or exceed CGA E-4 standards. Each modular panel undergoes rigorous inspection and testing including a spectrometric helium leak check, material certification, and dimensional verification before being delivered for installation.
To facilitate visual connectivity and research collaboration, the 5F Series modular point-of-use panels are expertly designed to integrate seamlessly with existing laboratory furniture, including workbenches, casework, and fume hoods. Panel size, shape, color, laser etching, and mounting options are tailored to fit the laboratory's physical environment, and operational components are clearly marked to simplify use and reduce the potential for user error. For a fully customized point-of-use solution that meets your exact laboratory needs, talk to an experienced CONCOA gas equipment specialist today.
- Custom-built panel ensures exact pressure, flow control, and purity for application specific demands
- Tailored mounting options enable flexible installation and accommodate spatial limitations
- Multiple outlet points serve one or more laboratory instruments from a single panel
- Modular design allows future scalability as laboratory needs evolve
- Fewer threaded connections minimize leak paths and maintain gas purity to point-of-use
- Spectrometric helium leak check (as an assembly) verifies leak integrity
