642 Series IntelliSwitch II

Web-enabled, high flow electronic switchover for industrial gas applications

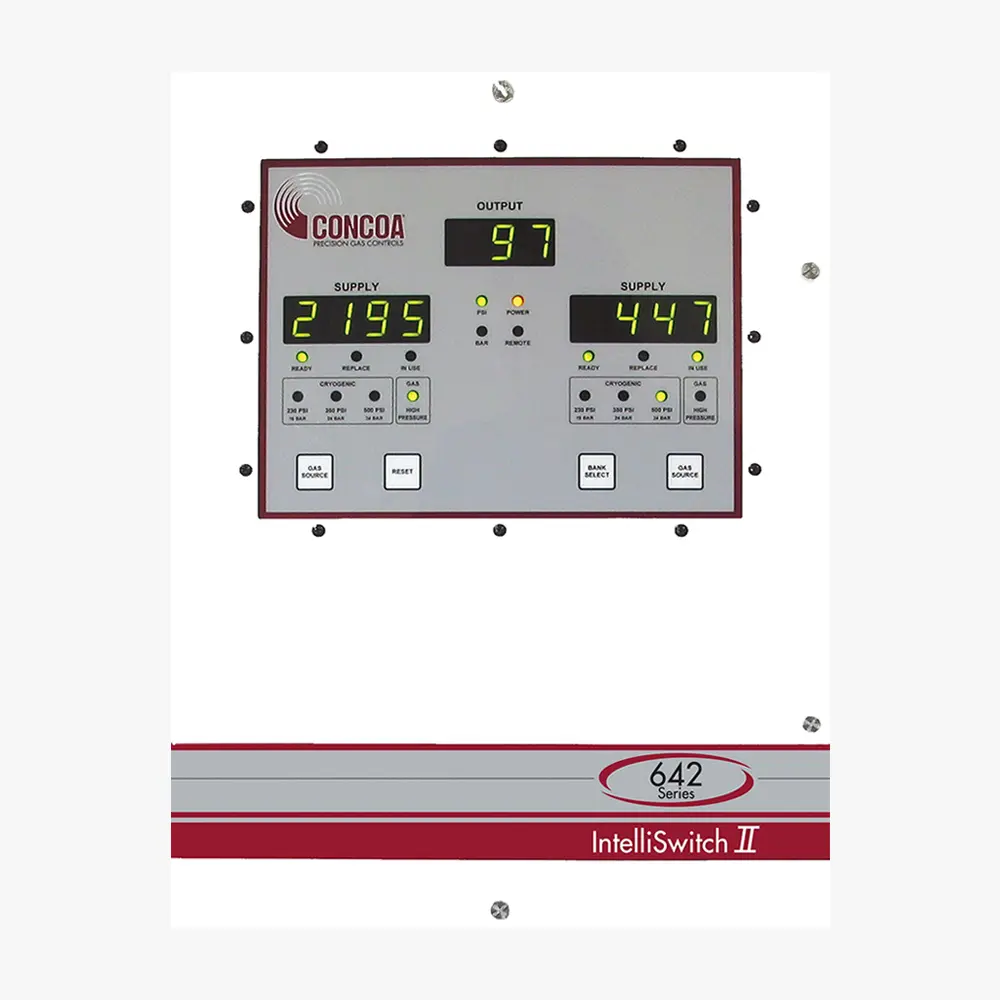

6423007-01-1010 shown

The web-enabled 642 IntelliSwitch™ II gas switchover is the industrial solution for integrated gas management systems. The CONCOA IntelliSwitch II offers continuous pressure and flow control from either liquid cylinder or high pressure cylinder sources, or any combination of both. The ideal mode of supply is selected by a simple push of a button. The CONCOA proprietary, web-based technology allows remote monitoring, secure system configuration, and email notification of real-time system status and events. The 642 IntelliSwitch II allows the user to maximize the use of liquid cylinder gases by eliminating the primary cylinders' residual return loss and economizing the reserve cylinders' excess pressure. In addition, the 642 IntelliSwitch II is designed to interface with the CONCOA Altos 2 remote alarm system.

  • Integral web server technology enables remote access and configuration updates
  • Integral email notification provides continuous system monitoring
  • Microprocessor control provides fully automatic priority assignment
  • Indicator lights display system status at any given time
  • Max inlet pressure: 3000 PSIG (210 BAR)
  • Filter: 40-micron
  • Temperature range: 0°F to 100°F (-18°C to 40°C)
  • Mechanical inlet/outlet connections: 1/2 in FNPT
  • Communication connectivity: Two-channel NO/NC output relay alarm contacts
  • Cv: 1.0
  • Power requirement: 110 or 240 VAC (terminal block with 1/2 in conduit hole)
  • Valve bodies: Brass barstock
  • Valve seats: FKM and PCTFE
  • Seals: PTFE, PCTFE, and Chloroprene
  • Hose core: PTFE
  • Hose fittings: Brass
  • Hose casing: Armor-cased stainless steel
  • Enclosure: NEMA 4, powder-coated steel
  • Weight: 67 lbs (30 kg)
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; PED 2014/68/EU; CE marked; CRN OH5216.5; CRN OH17950.5
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
Document
Language
ID Number
Revision
642 Series IntelliSwitch™ II Catalog Page
English
IN642IS2
M
IntelliSwitch™ II Electronic Switchover Installation and Operating Instructions
English
ADI9515
M
IntelliSwitch™ II Web Server Installation and User's Guide (for units with separate check valve block and standard line regulator/shipped after August 2023)
English
ADI9535
A
IntelliSwitch™ II Web Server Installation and User's Guide (for units with line regulator integrated into check valve block/shipped prior to September 2023)
English
ADI9514
E
IntelliSwitch™ II Servidor Web INSTRUCIÓNES DE INSTALACIÓN Y OPERACIÓN
Spanish
ADI9514-ESP
E
Serveur Web IntelliSwitch™ II GUIDE D’INSTALLATION ET D’UTILISATION
French
ADI9514-FR
E
Switchover Central Electrónica IntelliSwitch™ II INSTRUCIONES DE INSTALACION Y OPERACION
Spanish
ADI9515-ESP
L
Centrale d’inversion électronique IntelliSwitch™ II CONSIGNES D’INSTALLATION ET D’UTILISATION
French
ADI9515-FR
L
CONCOA IntelliSwitch™ Systems Brochure
English
SPF500
A
CRN File OH17950
English
CRNOH17950
26
CRN File OH5216
English
CRNOH5216
26
