Cylinder Barricade Racks

Gas cylinder barricade racks for indoor or outdoor cylinder storage
Gas cylinder barricade racks
Gas cylinder barricade racks

CONCOA Cylinder Barricade Racks are engineered for reliable indoor or outdoor bulk cylinder storage. Constructed from square steel structural tubing, each rack is seam-welded at all junctions and finished with an exterior grade powder-coating for long lasting durability. Tops are ground smooth and fitted with high-density polyethylene caps to prevent corrosion and reduce risk of injury. Dual-level welded steel chains, secured to the rack with clasps, ensure each cylinder is safely restrained. Barricade racks can be used as free-standing units, or floor mounted via predrilled holes.

  • Heavy-duty welded steel construction provides superior durability and stability
  • Powder-coated painted finish ensures chemical resistance and long service life
  • Dual-level safety chains ensure each cylinder is securely restrained
  • Polyethylene end caps prevent injury from sharp edges
  • Stand material: Powder-coated steel
  • Cylinder diameter capacity: 4in to 12in (102mm to 305mm)
  • Cylinder Bay Width: 12in (305mm)
  • Mount type: Floor
  • Chains: Heavy-duty steel
◂ scroll to see more ▸
Part Number Description Dimensions (W x D x H)
5185011 One-Cylinder Rack Barricade; 1 Wide x 1 Deep 16" x 16" x 30" (406mm x 406mm x 762mm)
5185012 Two-Cylinder Rack Barricade; 1 Wide x 2 Deep 16" x 26" x 30" (406mm x 660mm x 762mm)
5185013 Three-Cylinder Rack Barricade; 1 Wide x 3 Deep 16" x 38" x 30" (406mm x 965mm x 762mm)
5185014 Four-Cylinder Rack Barricade; 1 Wide x 4 Deep 16" x 50" x 30" (406mm x 1270mm x 762mm)
5185021 Two-Cylinder Rack Barricade; 2 Wide x 1 Deep 30" x 16" x 30" (762mm x 406mm x 762mm)
5185022 Four-Cylinder Rack Barricade; 2 Wide x 2 Deep 30" x 26" x 30" (762mm x 660mm x 762mm)
5185023 Six-Cylinder Rack Barricade; 2 Wide x 3 Deep 30" x 38" x 30" (762mm x 965mm x 762mm)
5185024 Eight-Cylinder Rack Barricade; 2 Wide x 4 Deep 30" x 50" x 30" (762mm x 1270mm x 762mm)
5185031 Three-Cylinder Rack Barricade; 3 Wide x 1 Deep 44" x 16" x 30" (1118mm x 406mm x 762mm)
5185032 Six-Cylinder Rack Barricade; 3 Wide x 2 Deep 44" x 26" x 30" (1118mm x 660mm x 762mm)
5185033 Nine-Cylinder Rack Barricade; 3 Wide x 3 Deep 44" x 38" x 30" (1118mm x 965mm x 762mm)
5185034 Twelve-Cylinder Rack Barricade; 3 Wide x 4 Deep 44" x 50" x 30" (1118mm x1270mm x 762mm)
5185041 Four-Cylinder Rack Barricade; 4 Wide x 1 Deep 58" x 16" x 30" (1473mm x 406mm x 762mm)

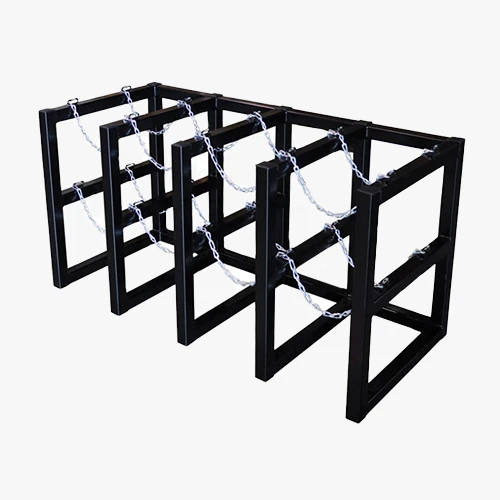

5185042 Eight-Cylinder Rack Barricade; 4 Wide x 2 Deep 58" x 26" x 30" (1473mm x 660mm x 762mm)
5185043 Twelve-Cylinder Rack Barricade; 4 Wide x 3 Deep 58" x 38" x 30" (1473mm x 965mm x 762mm)
5185044 Sixteen-Cylinder Rack Barricade; 4 Wide x 4 Deep 58" x 50" x 30" (1473mm x 1270mm x 762mm)
5185051 Five-Cylinder Rack Barricade; 5 Wide x 1 Deep 70" x 16" x 30" (1778mm x 406mm x 762mm)
5185052 Ten-Cylinder Rack Barricade; 5 Wide x 2 Deep 72" x 26" x 30" (1829mm x 660mm x 762mm)
5185053 Fifteen-Cylinder Rack Barricade; 5 Wide x 3 Deep 70" x 38" x 30" (1778mm x 965mm x 762mm)
5185054 Twenty-Cylinder Rack Barricade; 5 Wide x 4 Deep 70" x 50" x 30" (1778mm x 1270mm x 762mm)
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Cylinder Barricade Racks Catalog Page
English
RS_RAC
AH
