Intrinsic Safety Barrier for Pressure Transducer

Intrinsic safety barrier for products using pressure transducers

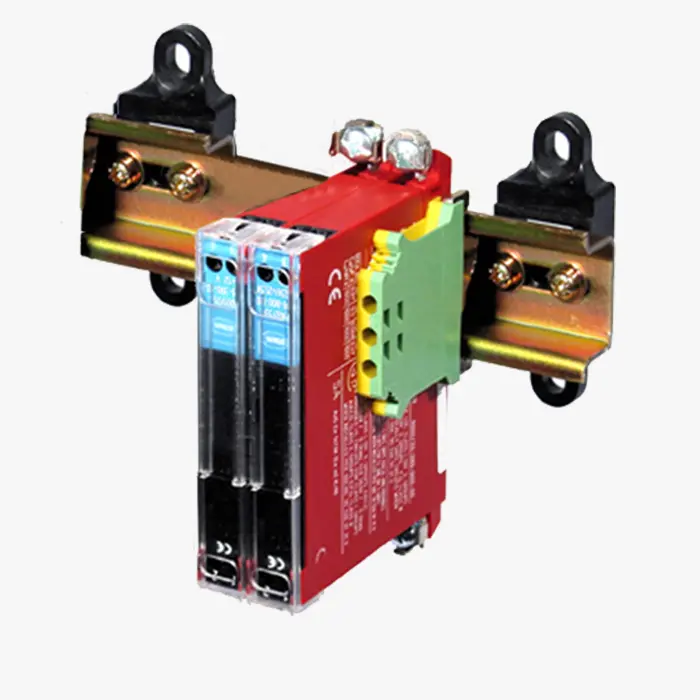

5295361 shown

The single and dual-channel intrinsic safety barrier for pressure transducer products are essential components of intrinsically safe applications. The CONCOA single and dual-channel intrinsically safe barrier permits the safe operation of electrical equipment in hazardous areas by limiting the current, voltage, and total energy to a safe level. The CONCOA intrinsic safety barrier for pressure transducers controls the source of ignition, never allowing enough energy to make ignition possible. Creating an intrinsically safe environment is a superior method for hazardous locations since it prevents an explosion from taking place. Please note that intrinsic safety barriers have been validated only with CONCOA pressure transducers specifically intended for hazardous environments and CONCOA remote alarms, monitors, and controllers. This model is not intended for use with CONCOA pressure transducers for non-hazardous service or for use with CONCOA pressure switch gauges.

Features

Easily accessible components allow calibration and maintenance while the system is in operation
Durable polyamide enclosure resists impact and wear even in harsh environments
Single and dual-channel safety barrier includes 4 inch mounting rail and adapter
Standard wiring techniques permit easy installation

Specifications

Dimensions: 2.990 in x 5.835 in x 3.736 in (76 mm x 148 mm x 95 mm)
Operational voltage: 24 V
Short circuit current: 67 mA
Temperature range: -4°F to 140°F (-20°C to 60°C)
Potential channel 1: Positive
Potential channel 2: Positive with diode
Mounting location: Zone 2, Div. 2, and in safe area
Grounding method: Designated ground electrode with #12 AWG size conductor or larger; Ground path resistance not to exceed 1 ohm
Weight: 0.24 lb (0.11 kg)
Conformances: UL approved

Ordering Information

◂ scroll to see more ▸

Part Number	Description
5295361	Intrinsic Safety Barrier for use with a Single Intrinsically Safe, 4-20 mA Pressure Transducer (not suitable for use with a pressure switch gauge or with a transducer that is not designed for use with barriers)
5295362	Intrinsic Safety Barrier for use with Two Intrinsically Safe, 4-20 mA Pressure Transducers (not suitable for use with a pressure switch gauge or with a transducer that is not designed for use with barriers)

Product Documents

◂ scroll to see more ▸

Document

Language

ID Number

Revision

Download

Intrinsic Safety Barriers Catalog Page

English

INISB

Download

Schematic for Protocol Station Regulator with Transducers

English

ADI3243

Download

Schematic for Dual Regulator Switchover with Transducers

English

ADI3244

Related Products

522 Series AutoSwitch

Enclosed pressure differential switchover with brass internals for high purity gas applications

523 Series AutoSwitch

Enclosed pressure differential switchover with stainless steel internals for ultra-high purity gas applications

526 Series Switchover

Stainless steel pressure differential automatic switchover with brass internals for ultra-high purity gas applications

526 LC Series Switchover

Brass pressure differential liquid primary, high-pressure reserve switchover for high purity gas applications

527 Series Switchover

Stainless steel pressure differential switchover for high purity gas applications

Altos 2™ Alarm

Two-channel annunciator for use with transducers or pressure switch input

529 Series Protocol Monitor Station

Single station manifold with remote pressure monitor for high purity gas applications

529 Series Protocol Switchover Monitor Station

Manual switchover with remote pressure monitor for high purity gas applications
