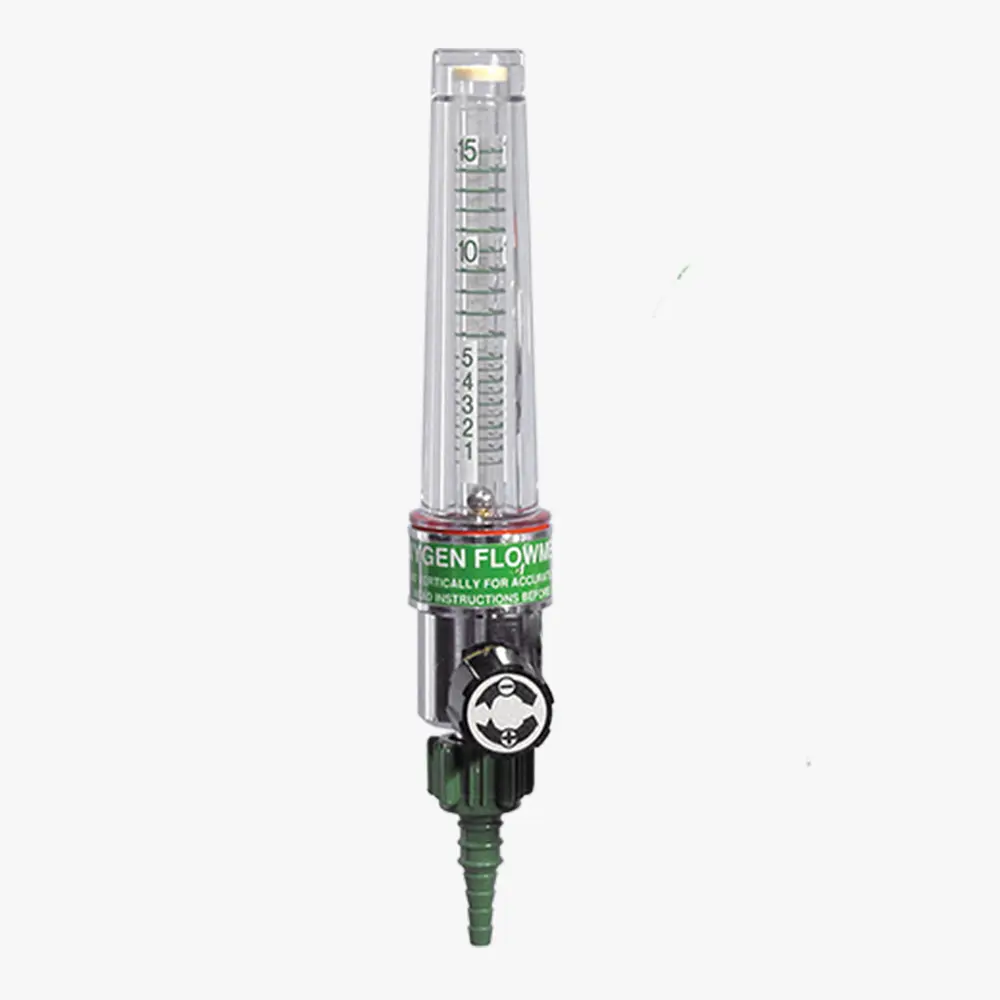

Medical Oxygen Flowmeter
The 2000 Series Medical Oxygen Flowmeter precisely measures the flow rate of medical oxygen from a low-pressure supply. This flowmeter is used to closely monitor and control the level of oxygen delivered in medical applications. The 2000 Series medical oxygen flowmeter may be fitted with different medical-grade inlet adapters as required based on user needs.
- Compensated at 50 PSIG (3.5 BAR) ensures accurate reading
- Resettable relief mechanism lowers maintenance costs
- Variety of optional medical-grade inlet adapters permit system customization
- Gas service: Oxygen
- Body: Chrome-plated brass
- Flowtube: Polycarbonate
- Compensation: 50 PSIG (3.5 BAR)
- Conformances: FDA-listed; CRN OF15806.5
Part Number | Description | Flowmeter Range (@ 50 PSIG) |
---|---|---|
8052081-01-1 | Medical Oxygen Flowmeter with 1/4 in MNPT Inlet Connection and DISS 1240 Outlet Connection |
1-8 LPM |
8052082-01-1 | Medical Oxygen Flowmeter with 1/8 in FNPT Inlet Connection and DISS 1240 Outlet Connection |
1-8 LPM |
8052151-01-1 | Medical Oxygen Flowmeter with 1/4 in MNPT Inlet Connection and DISS 1240 Outlet Connection |
1-15 LPM |
8052152-01-1 | Medical Oxygen Flowmeter with 1/8 in FNPT Inlet Connection and DISS 1240 Outlet Connection |
1-15 LPM |
8052201 | Flowmeter Inlet Adapter for Medical Oxygen with Diamond Long Inlet Connection and 1/8 in MNPT Outlet Connection |
N/A |
8052204 | Flowmeter Inlet Adapter for Medical Oxygen with Med Star Inlet Connection and 1/8 in MNPT Outlet Connection |
N/A |
8052205 | Flowmeter Inlet Adapter for Medical Oxygen with Schrader Inlet Connection and 1/8 in MNPT Outlet Connection |
N/A |
8052207 | Flowmeter Inlet Adapter for Medical Oxygen with Union Gland Inlet Connection and 1/8 in MNPT Outlet Connection |
N/A |
8052208 | Flowmeter Inlet Adapter for Medical Oxygen with Union Nut Inlet Connection and 1/8 in MNPT Outlet Connection |
N/A |
8052209 | Flowmeter Inlet Adapter for Medical Oxygen with NGC Inlet Connection and 1/8 in MNPT Outlet Connection |
N/A |
8052210 | Flowmeter Inlet Adapter for Medical Oxygen with Hand-I-Twist Inlet Connection and 1/8 in MNPT Outlet Connection |
N/A |
8052211 | Flowmeter Inlet Adapter for Medical Oxygen with Puritan Inlet Connection and 1/8 in MNPT Outlet Connection |
N/A |
8052212 | Flowmeter Inlet Adapter for Medical Oxygen with OES Inlet Connection and 1/8 in MNPT Outlet Connection |
N/A |
8052213 | Flowmeter Inlet Adapter for Medical Oxygen with Diamond Short Inlet Connection and 1/8 in MNPT Outlet Connection |
N/A |
8052270-01-1 | Medical Oxygen Flowmeter with Hand-I-Twist Inlet Connection and DISS 1240 Outlet Connection |
1-8 LPM |
8052275-01-1 | Medical Oxygen Flowmeter with Diamond Long (Ohmeda) Inlet Connection and DISS 1240 Outlet Connection |
1-8 LPM |
8052277-01-1 | Medical Oxygen Flowmeter with Puritan Inlet Connection and DISS 1240 Outlet Connection |
1-8 LPM |
8052290-01-1 | Medical Oxygen Flowmeter with Hand-I-Twist Inlet Connection and DISS 1240 Outlet Connection |
1-15 LPM |
8052291-01-1 | Medical Oxygen Flowmeter with Union Nut and Gland Inlet Connection and DISS 1240 Outlet Connection |
1-15 LPM |
8052293-01-1 | Medical Oxygen Flowmeter with Med Star Inlet Connection and DISS 1240 Outlet Connection |
1-15 LPM |
8052294-01-1 | Medical Oxygen Flowmeter with Diamond Short Inlet (with Ohmeda Power Outlet Extension) and DISS 1240 Outlet Connection |
1-15 LPM |
8052295-01-1 | Medical Oxygen Flowmeter with Diamond Long (Ohmeda) Inlet Connection and DISS 1240 Outlet Connection |
1-15 LPM |
8052296-01-1 | Medical Oxygen Flowmeter with 1/8 in OES Inlet Connection and DISS 1240 Outlet Connection |
1-15 LPM |
8052297-01-1 | Medical Oxygen Flowmeter with Puritan Inlet Connection and DISS 1240 Outlet Connection |
1-15 LPM |
8052298-01-1 | Medical Oxygen Flowmeter with Diamond Short (Ohmeda) Inlet Connection and DISS 1240 Outlet Connection |
1-15 LPM |
8052299-01-1 | Medical Oxygen Flowmeter with NCG (Allied) Inlet Connection and DISS 1240 Outlet Connection |
<1-15 LPM |
