Manifold Heater

Manifold heater for high flow carbon dioxide, argon, and nitrogen gas applications

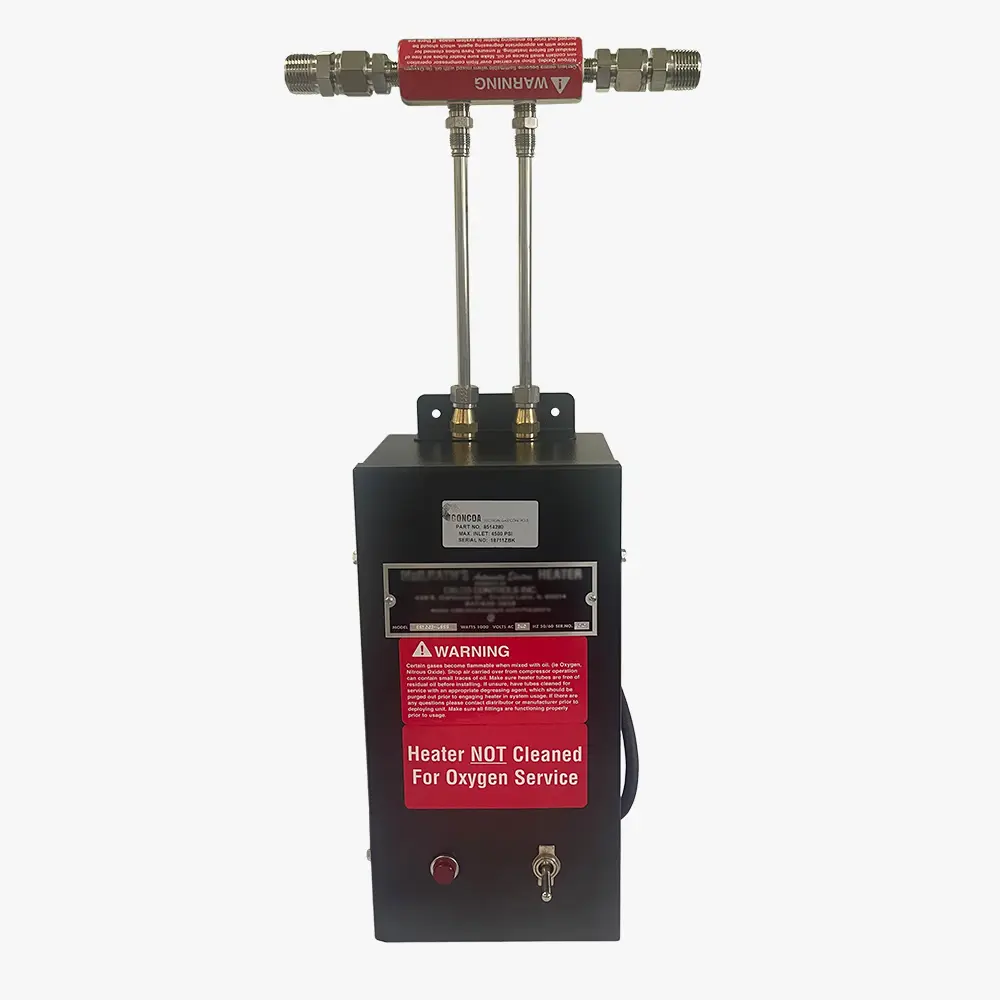

8514280 shown
Manifold heater for high flow carbon dioxide, argon, and nitrogen gas applications

Manifold heaters ensure gaseous withdrawal from liquid sources by counteracting the cooling effects of high flow rates. Installed between the gas cylinder valve and a suitable regulator, they warm the gas stream allowing flow rates up to 1000 SCFH (17 SCFM) without loss of efficiency or regulator freeze-up. Designed with continuous high pressure tubing and no internal joints, they have working pressures up to 4500 PSIG (310 BAR). The heavily insulated cabinet remains cool, and the unit can be left on even under no-flow conditions. For system flexibility, CONCOA offers manifold heaters with a standard enclosure, as well as encased in a weather-tight, or explosion-proof enclosure.

  • 1000-watt heater provides steady vaporization at 160°F ± 5˚F (70°C ± -15˚C) outlet temperature
  • Thermostatically controlled heater protects against thermal or electrical overload
  • Insulated cabinet remains cool to touch for added safety
  • Optional NEMA 4 weather-tight and explosion-proof enclosures offer system flexibility
  • Flow capacity (heating): 1000 SCFH @ 0°F (17 SCFM; 470 LPM; 115 lbs/hr; 52 kgs/hr @ -18°C)
  • Vaporization: 22 lbs/hr @ 0°F (10 kg/hr @ -18°C)
  • Temperature setting: 160°F (70°C)
  • Power: 1000 watts
  • Manifold connections: 1/2 in MNPT stainless steel
  • Cord length: 6 ft (180 cm)
◂ scroll to see more ▸
Part Number Description Max Inlet Pressure
8514274 1000-Watt Manifold Heater with Standard Enclosure, 120 Volts (8.3 amps), Copper Tubes, and Brass Manifold Block 2500 PSIG (170 BAR)
8514275 1000-Watt Manifold Heater with Standard Enclosure, 240 Volts (4.2 amps), Copper Tubes, and Brass Manifold Block 2500 PSIG (170 BAR)
8514278 1000-Watt Stainless Steel Manifold Heater with Standard Enclosure, 120 Volts (8.3 amps), and Stainless Steel Tubes and Manifold Block 4500 PSIG (310 BAR)
8514280 1000-Watt Stainless Steel Manifold Heater with Standard Enclosure, 240 Volts (4.2 amps), and Stainless Steel Tubes and Manifold Block 4500 PSIG (310 BAR)
8514285 1000-Watt Manifold Heater with NEMA 4 Weather-tight Enclosure, 120 Volts (8.3 amps), Copper Tubes, and Brass Manifold Block 2500 PSIG (170 BAR)
8514286 1000-Watt Manifold Heater with NEMA 4 Weather-tight Enclosure, 240 Volts (4.2 amps), Copper Tubes, and Brass Manifold Block 2500 PSIG (170 BAR)
8514287 1000-Watt Stainless Steel Manifold Heater with NEMA 4 Weather-tight Enclosure, 120 Volts (8.3 amps), and Stainless Steel Tubes and Manifold Block 4500 PSIG (310 BAR)
8514288 1000-Watt Stainless Steel Manifold Heater with NEMA 4 Weather-tight Enclosure, 240 Volts (4.2 amps), and Stainless Steel Tubes and Manifold Block 4500 PSIG (310 BAR)
8514301 1000-Watt Manifold Heater with Explosion Proof NEMA 4 Weather-tight Enclosure, 120 Volts (8.3 amps), Copper Tubes, and Brass Manifold Block 2500 PSIG (170 BAR)
8514302 1000-Watt Manifold Heater with Explosion Proof NEMA 4 Weather-tight Enclosure, 240 Volts (4.2 amps), Copper Tubes, and Brass Manifold Block 2500 PSIG (170 BAR)
8514303 1000-Watt Stainless Steel Manifold Heater with Explosion Proof NEMA 4 Weather-tight Enclosure, 120 Volts (8.3 amps), and Stainless Steel Tubes and Manifold Block 4500 PSIG (310 BAR)
8514304 1000-Watt Stainless Steel Manifold Heater with Explosion Proof NEMA 4 Weather-tight Enclosure, 240 Volts (4.2 amps), and Stainless Steel Tubes and Manifold Block 4500 PSIG (310 BAR)
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Manifold Heaters Catalog Page
English
RSHEAT
AH
