412 Series Regulator

Six-port, bare brass barstock, dual stage cylinder regulator for ultra-high purity inert gas applications

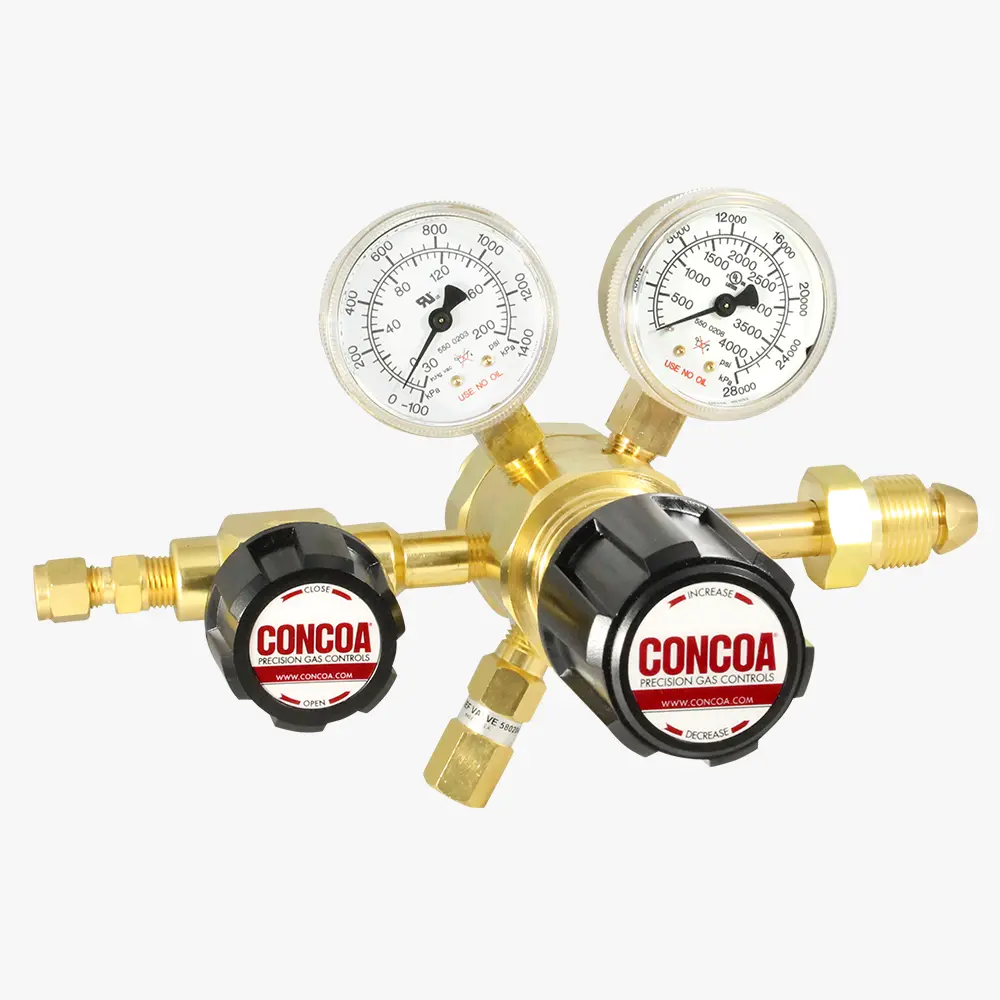

4123331-01-580 shown

The 412 Series regulator provides primary pressure control for ultra-high purity inert gases. Two stages of pressure regulation minimize pressure variation arising from inlet pressure changes, such as the depletion of the supply cylinder. The 412 Series dual stage regulator is ideal for applications such as gas supply to analytical instruments, where constant delivery pressure is critical. Available with a variety of options installed at the factory, the 412 Series regulator may be configured as a single station manifold with or without purge, low-pressure alarm, or multiple inlets.

  • Metal-to-metal diaphragm seal prevents gas contamination
  • CAPSULE® seat design features integral 360° filtration in both stages
  • Front panel mountable permits easy installation
  • Pipe away relief valve vents exhaust gases safely
  • Spectometric helium leak check verifies leak integrity
  • Cleanroom assembly eliminates contamination at installation
  • Captured vent capable bonnet prohibits exposure in the unlikely event of diaphragm failure
  • Max inlet pressure (bare body): 3000 PSIG (210 BAR); 3500 PSIG (240 BAR) optional; or 4500 PSIG (310 BAR) optional
  • Body: Brass barstock
  • Bonnet: Brass barstock
  • Gauges: 2 in (50 mm) diameter brass
  • Seat: PCTFE (first stage); PTFE (second stage)
  • Filter: 10-micron sintered bronze
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Diaphragm: 316L stainless steel
  • Cv: 0.1
  • Helium leak integrity: 1 x 10⁻⁹ scc/sec
  • Internal seals: PTFE
  • Ports (bare body): 1/4 in FNPT
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; PED 2014/68/EU; CRN OH5216
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
ID Number
412 Series Regulators Catalog Page
Regulators Installation and Operation
English, Spanish, French
CRN File OH5216
