529 Series Protocol Switchover Alarm Station
Manual switchover with remote pressure alarm for high purity gas applications

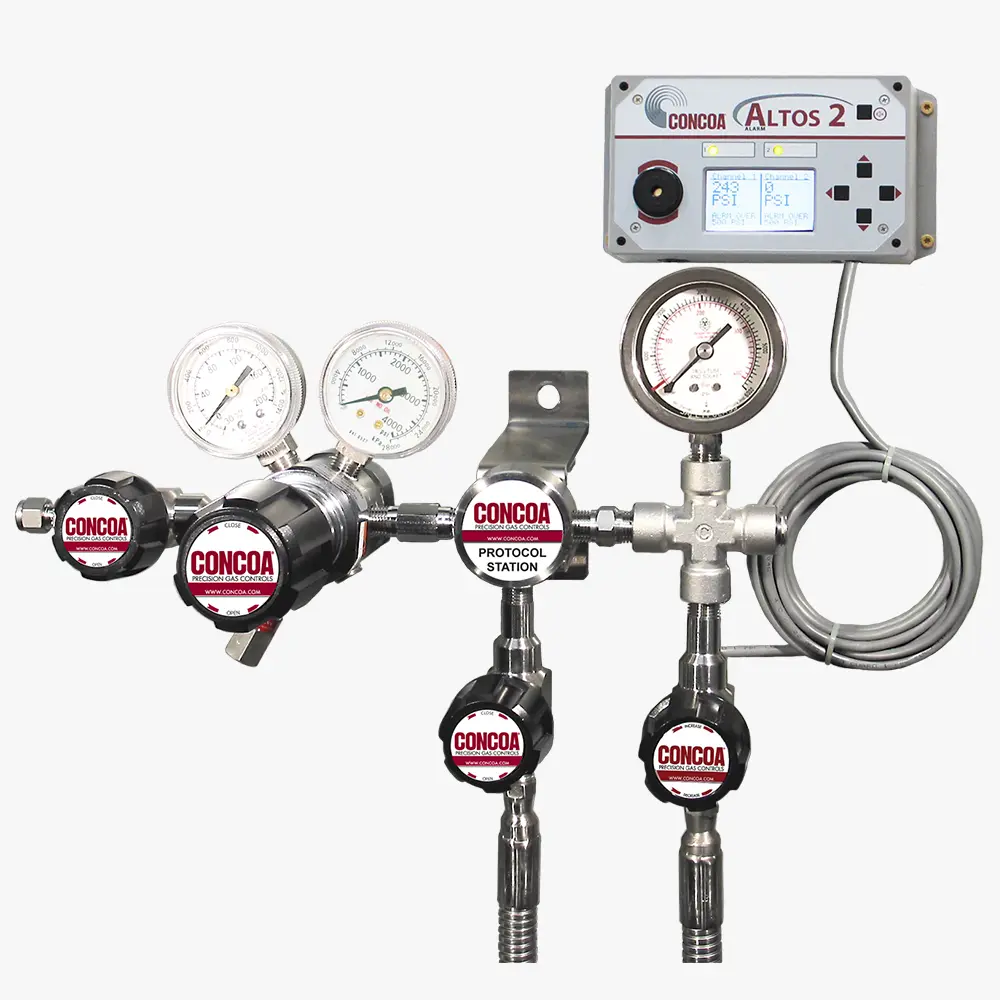

5290156-01-660 shown with regulator
The 529 Series Protocol Switchover Alarm Station provides remote annunciation when the source nears depletion. Equipped with a single pressure switch gauge that can be set in the field to the desired alarm point and an Altos 2™ System Monitor, the system notifies a remote location of the need to replace a cylinder and manually change cylinder priority. The protocol switchover alarm station is available in brass, chrome-plated brass, 316L stainless steel, or Silicon CVD coated 316L stainless steel, and may be used with many CONCOA single or dual stage regulators. To order the Protocol Switchover Alarm Station with regulator installed at the factory, add the letter "H" after any regulator part number. (For example, to order a 4221332-01-510 regulator with a factory-installed protocol switchover alarm station, the part number would be 4221332-01-510H.)
- Field adjustable pressure switch gauge provides cylinder depletion warning signal
- Altos 2 remote alarm signals audible and visible warnings of cylinder depletion
- Plugged port in gas block facilitates purging
- Integral check valve (in optional hose) inlet gland prohibits internal contamination during cylinder change
- Stainless bracket allows flexible mounting options
- Temperature range: -40°F to 140°F (-40°C to 60°C)
- Intrinsic safety barriers: Required for flammable gas service or use in hazardous environments
- Protocol tee: Brass; chrome-plated brass; 316L stainless steel barstock; or SilcoNert® 2000
- Flexible hose inner cores: 316L stainless steel; Monel® for oxygen service; PTFE for 6000 PSIG (415 BAR); or SilcoNert 2000
- Inlet connection: 316L stainless steel; brass barstock; or SilcoNert 2000
- Check valve seal: FKM (chloroprene for ammonia)
- Bracket: 304 stainless steel
- Weight (single stage): 4.4 lbs (2.0 kg)
- Weight (dual stage): 4.8 lbs (2.2 kg)
- Conformances: ANSI/ASME B40.1; CRN OA20418.5
◂ scroll to see more ▸
| Part Number | Description | Max Inlet Pressure |
|---|---|---|
| 5290151-01-CONH | Dual Protocol Manual Switchover Alarm for Brass Regulators (110/220 VAC) | 400 PSIG (27 BAR) |
| 5290152-01-CONH | Dual Protocol Manual Switchover Alarm for Chrome-plated Brass Regulators (110/220 VAC) | 400 PSIG (27 BAR) |
| 5290153-01-CONH | Dual Protocol Manual Switchover Alarm for 316L Stainless Steel Regulators (110/220 VAC) | 400 PSIG (27 BAR) |
| 5290154-01-CONH | Dual Protocol Manual Switchover Alarm for Brass Regulators (110/220 VAC) | 3000 PSIG (210 BAR) |
| 5290155-01-CONH | Dual Protocol Manual Switchover Alarm for Chrome-plated Brass Regulators (110/220 VAC) | 3000 PSIG (210 BAR) |
| 5290156-01-CONH | Dual Protocol Manual Switchover Alarm Station for 316L Stainless Steel Regulators (110/220 VAC) | 3000 PSIG (210 BAR) |
| 5290157-01-CONH | Dual Protocol Manual Switchover Alarm for Brass Regulators (110/220 VAC) | 4500 PSIG (310 BAR) |
| 5290158-01-CONH | Dual Protocol Manual Switchover Alarm for Chrome-plated Brass Regulators (110/220 VAC) | 4500 PSIG (310 BAR) |
| 5290159-01-CONH | Dual Protocol Manual Switchover Alarm for 316L Stainless Steel Regulators (110/220 VAC) | 4500 PSIG (310 BAR) |
| 5290160-01-CONH | Dual Protocol Manual Switchover Alarm for 316L Stainless Steel Regulators (110/220 VAC) | 6000 PSIG (415 BAR) |
| 5290405-01-CONH | Protocol Switchover Alarm Station for SilcoNert 2000 Regulators (110/220 VAC) | 600 PSIG (40 BAR) |
| 5290406-01-CONH | Protocol Switchover Alarm Station for SilcoNert 2000 Regulators (110/220 VAC) | 3000 PSIG (210 BAR) |
* Replace CON in Part Number with Appropriate Cylinder Connection (e.g., for CON 580, Part Number = 5290151-01-580)
