422 Series Regulator
Six-port, single stage, stainless steel cylinder regulator for ultra-high purity gas applications

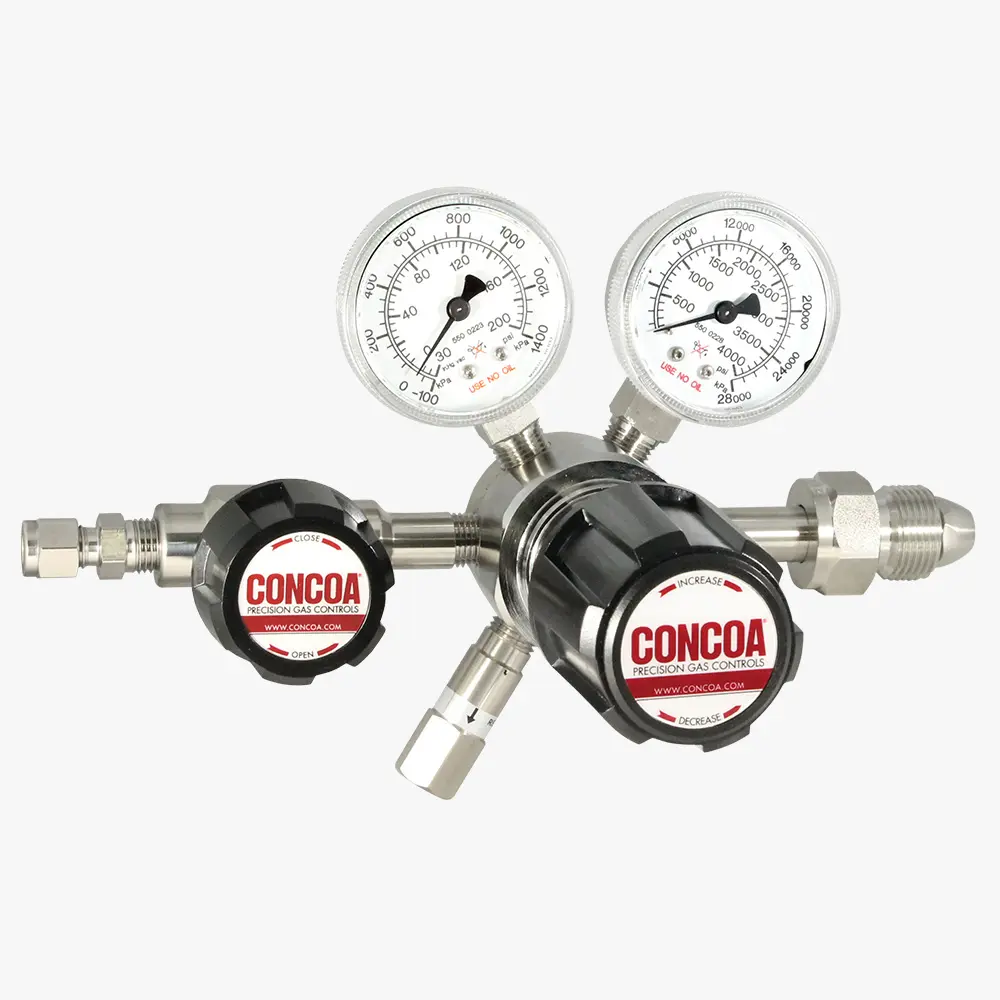

4223331-01-580 shown
The 422 Series regulator provides primary pressure control for ultra-high purity gases, including corrosive and toxic gases. Due to the pressure rise associated with high pressure cylinder depletion, CONCOA recommends single stage regulators for primary pressure control of cylinders filled under 500 PSIG (34 BAR) and in applications where minor fluctuations in outlet pressure due to diminishing inlet supply can be tolerated, or where inlet pressure is constant. Available with a variety of options installed at the factory, the 422 Series regulator may be configured as a single station manifold with or without purge, low-pressure alarm, or multiple inlets.
- Metal-to-metal diaphragm seal prevents gas contamination
- CAPSULE® seat design features integral 360° filtration
- Front and rear panel mountable permits easy installation
- Pipe away relief valve safely vents exhaust gases
- Spectrometric helium leak check verifies leak integrity
- Cleanroom assembly eliminates contamination at installation
- Captured vent capable bonnet prohibits exposure in the unlikely event of diaphragm failure
- Max inlet pressure (bare body): 3000 PSIG (210 BAR); 3500 PSIG (240 BAR) optional; or 4500 PSIG (310 BAR) optional
- Body: 316L stainless steel barstock
- Bonnet: Chrome-plated brass barstock
- Gauges: 2 in (50 mm) diameter stainless steel
- Seats: PTFE; PCTFE with 3500 PSIG (240 BAR) or 4500 PSIG (310 BAR) inlet option
- Filter: Patented 10-micron 316 stainless steel mesh
- Temperature range: -40°F to 140°F (-40°C to 60°C)
- Diaphragm: 316L stainless steel
- Cv: 0.1
- Helium leak integrity: 1 x 10⁻⁹ scc/sec
- Internal seals: PTFE
- Ports (bare body): 1/4 in FNPT
- Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; PED 2014/68/EU; CRN OH5216
