425 Series Regulator
Four-port, stainless steel barstock, point-of-use regulator for ultra-high purity gas applications

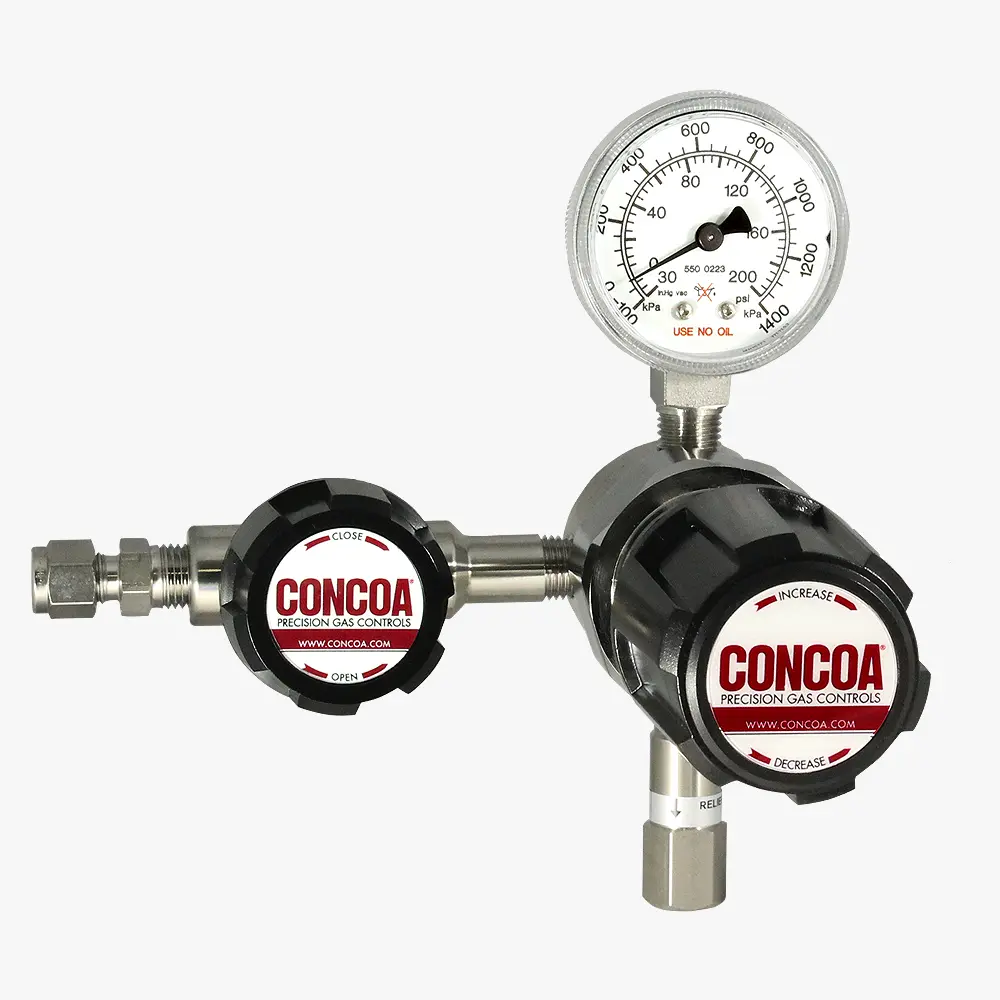

4253031-01-000 shown
The 425 Series regulator provides secondary pressure control for ultra-high purity gases, including corrosive and toxic gases, or point-of-use pressure monitoring and control in high purity gas distribution systems. Unlike most pipeline equipment, CONCOA line regulators are rated to full cylinder pressure to ensure safe use in the event of primary pressure control failure.
- Metal-to-metal diaphragm seal prevents gas contamination
- CAPSULE® seat design features integral 360° filtration
- Front and rear panel mountable permits easy installation
- Pipe away relief valve vents exhaust gases safely
- Spectrometric helium leak check verifies leak integrity
- Captured vent capable bonnet prohibits exposure in the unlikely event of diaphragm failure
- Max inlet pressure (bare body): 3000 PSIG (210 BAR)
- Body: 316L Stainless steel barstock
- Bonnet: Chrome-plated brass barstock
- Gauge: 2 in (50 mm) diameter stainless steel
- Seat: PTFE
- Filter: Patented 10-micron 316 stainless steel mesh
- Temperature range: -40°F to 140°F (-40°C to 60°C)
- Diaphragm: 316L stainless steel
- Cv: 0.1 Max outlet 50 PSIG (3.5 BAR) or less; 0.2 Max outlet above 50 PSIG (3.5 BAR)
- Helium leak integrity: 1 x 10⁻⁹ scc/sec
- Internal seals: PTFE
- Ports (bare body): 1/4 in FNPT
- Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; PED 2014/68/EU; CRN OH5216
◂ scroll to see more ▸
See catalog page for ordering information.
