54 Series Point-of-Use Panel

Point-of-use panel featuring 400 Series ultra-high purity regulators

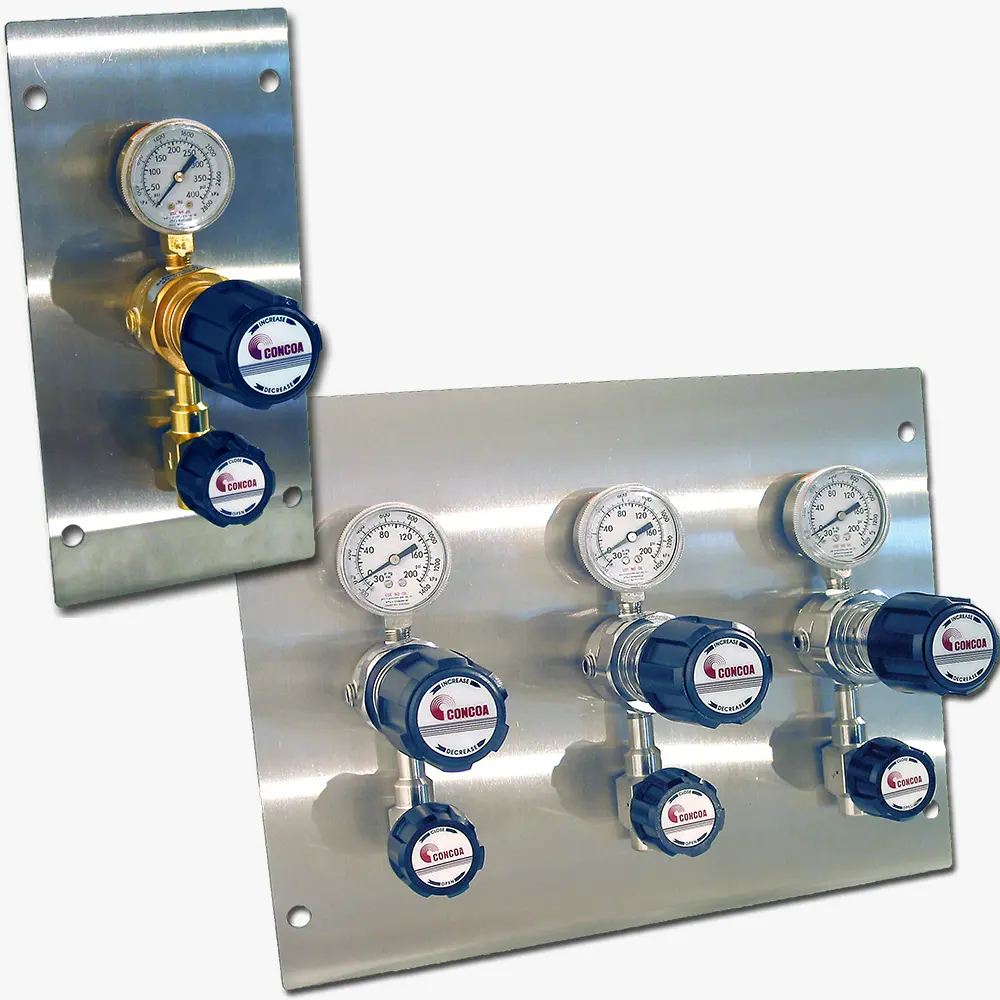

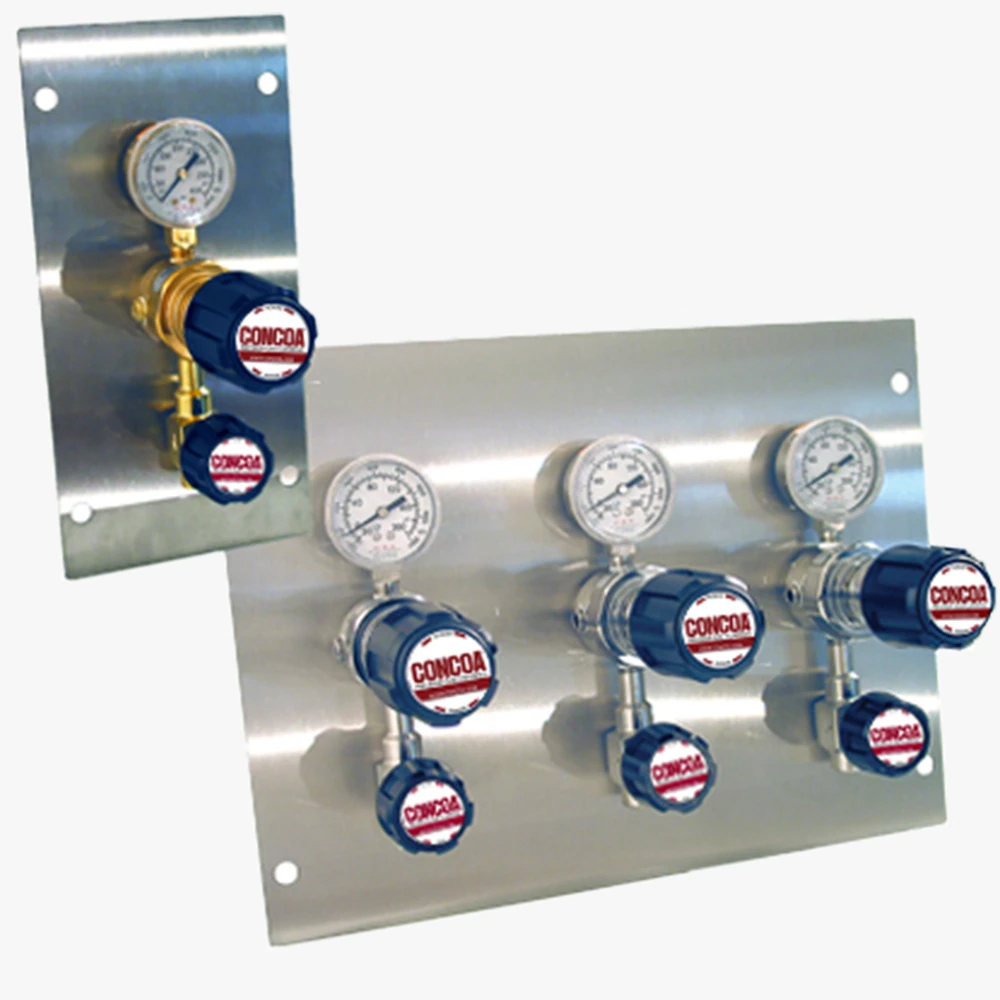

54C3330-01-001, 54S5000-01-001 shown

The 54 Series Point-of-Use Panel provides a modular design to mount and locate 400 Series regulators at the point-of-use for the most demanding gas applications. The panel is intended to provide final pressure control for research and ultra-high purity gases or, as with the stainless steel model (54S), even corrosive service gases or mixtures.  With up to six different delivery pressures, the user can select the pressure that is best for a specific application. Supplied with up to four regulators per panel, the CONCOA 54 Series point-of-use panel is ideal for the primary support gases used in ultra-high purity gas calibration systems.

  • Modular, custom configured design permits flexible installation and operation
  • Rear entry regulator inlet port enables on or in-wall piping
  • Individually selectable pressure ranges support a broad range of applications
  • 14-gauge stainless steel panel provides clean corrosion resistant installation
  • Stainless steel diaphragm prevents inboard diffusion
  • High purity diaphragm outlet valve allows gas flow control and positive shut-off
  • Max inlet pressure: 3000 PSIG (210 BAR)
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Cv: 0.1 Max outlet 50 PSIG (3.5 BAR) or below; 0.2 Max outlet above 50 PSIG (3.5 BAR)
  • Inlet/Outlet connections: 1/4 in FNPT
  • Gauges (54B): 2 in (50 mm) brass case with brass stem and phosphor bronze tube
  • Gauges (54C): 2 in (50 mm) brass case with chrome-plated stem and phosphor bronze tube
  • Gauges (54S): 2 in (50 mm) stainless steel case with stainless steel stem and tube
  • Panels: 14-gauge 304 stainless steel
  • Regulator and valve bodies: Brass barstock (54B); Chrome-plated brass barstock (54C); 316L stainless steel (54S)
  • Bonnets: Brass barstock (54B); Chrome-plated brass barstock (54C and 54S)
  • Seats: PTFE (regulator); PCTFE (valve)
  • Filters: 10-micron 316L stainless steel mesh or sintered bronze
  • Diaphragms: 316L stainless steel
  • Internal seals: PTFE
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; PED 2014/68/EU; ANSI/ASME B40.1; CRN OH5216.5
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
ID Number
54 Series Point-Of-Use Panels Catalog Page
Regulators Installation and Operation
English, Spanish, French
CONCOA Cyclotron Gas Delivery Systems
CRN File OH5216
