492 Series Line Regulator
Four-port, chrome-plated brass barstock, single stage line regulator for ultra-high pressure applications

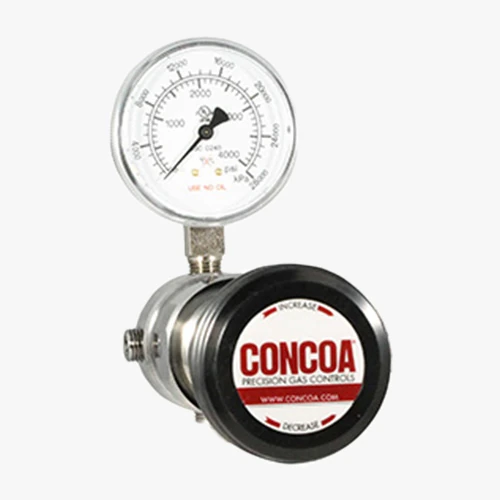

492201N-01-000 shown
The CONCOA 492 Series four-port line regulator is engineered to deliver reliable secondary pressure regulation or precise point-of-use control of non-corrosive high purity gases at a maximum inlet pressure of 6000 PSIG (415 BAR). Instead of a diaphragm, the 492 Series uses a rugged piston assembly to ensure safe pressure control at high inlet pressures. A range of factory-installed options is available to meet specific application needs.
- Large piston pressure sensor safely controls up to 6000 PSIG (415 BAR)
- CAPSULE® seat design features integral 360° filtration
- Front and rear panel-mountable allows easy installation
- Field-adjustable pressure limit safeguards downstream equipment
- Low wetted surface area minimizes purge requirements
