526 CD Series Switchover

Brass pressure differential switchover for high purity carbon dioxide or nitrous oxide

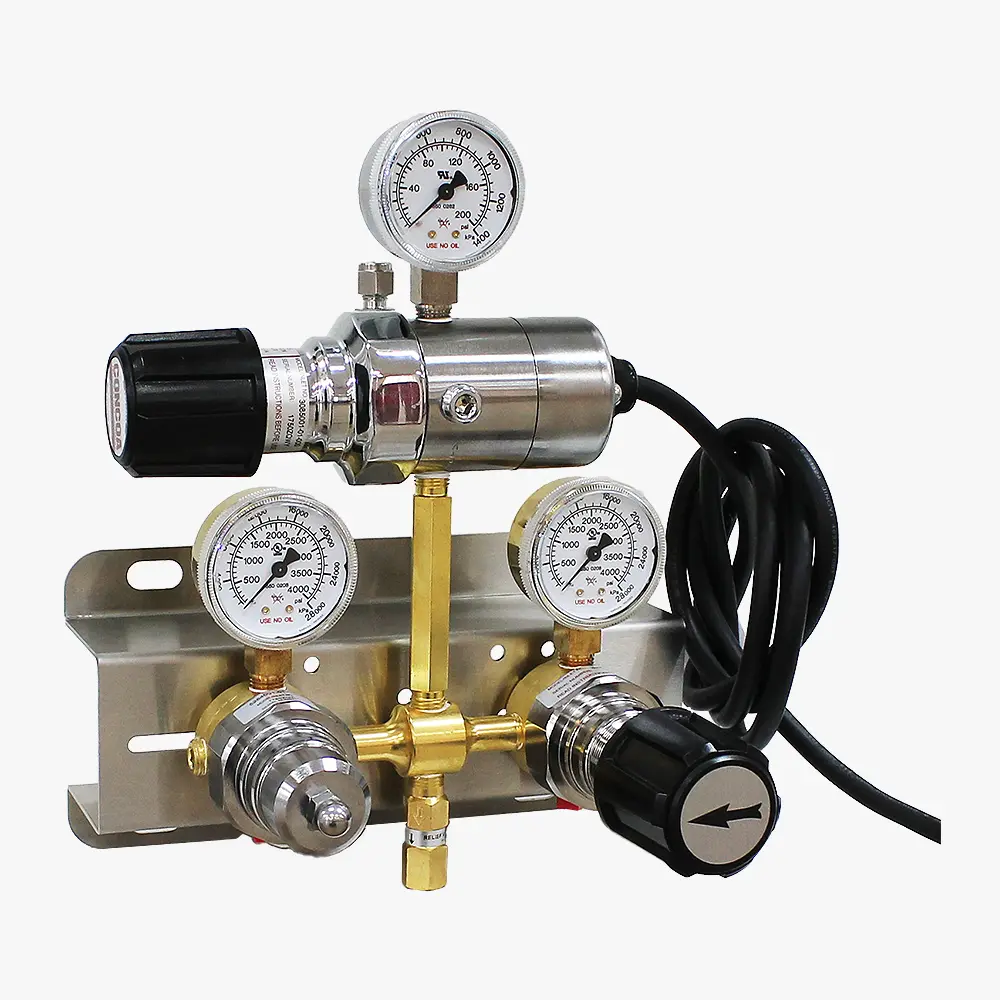

526D121-01-320 shown

The 526 CD Series Switchover is a pressure differential switchover system with a heated line regulator designed to deliver a continuous supply high purity carbon dioxide or nitrous oxide. The integral heaters in the line regulator ensure a high flow of inert gases that are prone to freezing due to flow or the Joule-Thomson effect. The switchover may be used with one cylinder per side or with a manifold that has increased storage capacity, like the CONCOA 52B (brass), 52C (chrome-plated brass), and 52S (stainless steel) Series maniflex manifold system. The CONCOA 526 CD Series switchover may be purchased with or without standard transducers or intrinsically safe transducers and barriers, and with or without the Altos 2™ remote alarm.

  • Regulators with CAPSULE® seat design provide increased life and serviceability
  • User-friendly priority valve permits easy switch of cylinder priority
  • Three 50-watt heaters maintain gas flow without freezing or particulate formation
  • Line regulator offers stable line pressure during changeover
  • Check valve in optional regulator hose inlet gland prevents contamination and backflow
  • Optional purge valve enables purging after cylinder changeover
  • Optional outlet valve allows isolation of pipeline
  • Optional Altos 2 remote alarm provides audible and visible warnings of cylinder depletion
  • Max working pressure: 3000 PSIG (210 BAR)
  • Temperature range (Thermostat): 95°F to 120°F (35°C to 49°C)
  • Heaters: 3 @ 50 watts each (110 or 220 VAC)
  • Gauges: 2 in (50 mm) diameter brass
  • Outlet connections: 1/4 in FNPT
  • Helium Leak Integrity: 1 x 10⁻⁸ scc/sec
  • Cv: 0.1
  • Regulator bodies: Chrome-plated brass barstock (line regulators); Brass barstock (inlet regulators)
  • Diaphragms: 316L stainless steel
  • Seats: PTFE (line regulators); PCTFE (inlet regulators)
  • Filters: 25-micron sintered bronze
  • Internal seals: PTFE
  • Weight: 8.5 lbs (3.85 kg)
  • Optional standard transducers: 0-6000 PSIG (4-20 mA output)
  • Optional intrinsically safe transducers : 0-5000 PSIG (4-20 mA output)
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; PED 2014/68/EU; ANSI/ASME B40.1; CRN OH5216.5; CRN OH15806.5
