544 Series IntelliSwitch IIv

Electronic switchover without integral pressure regulation

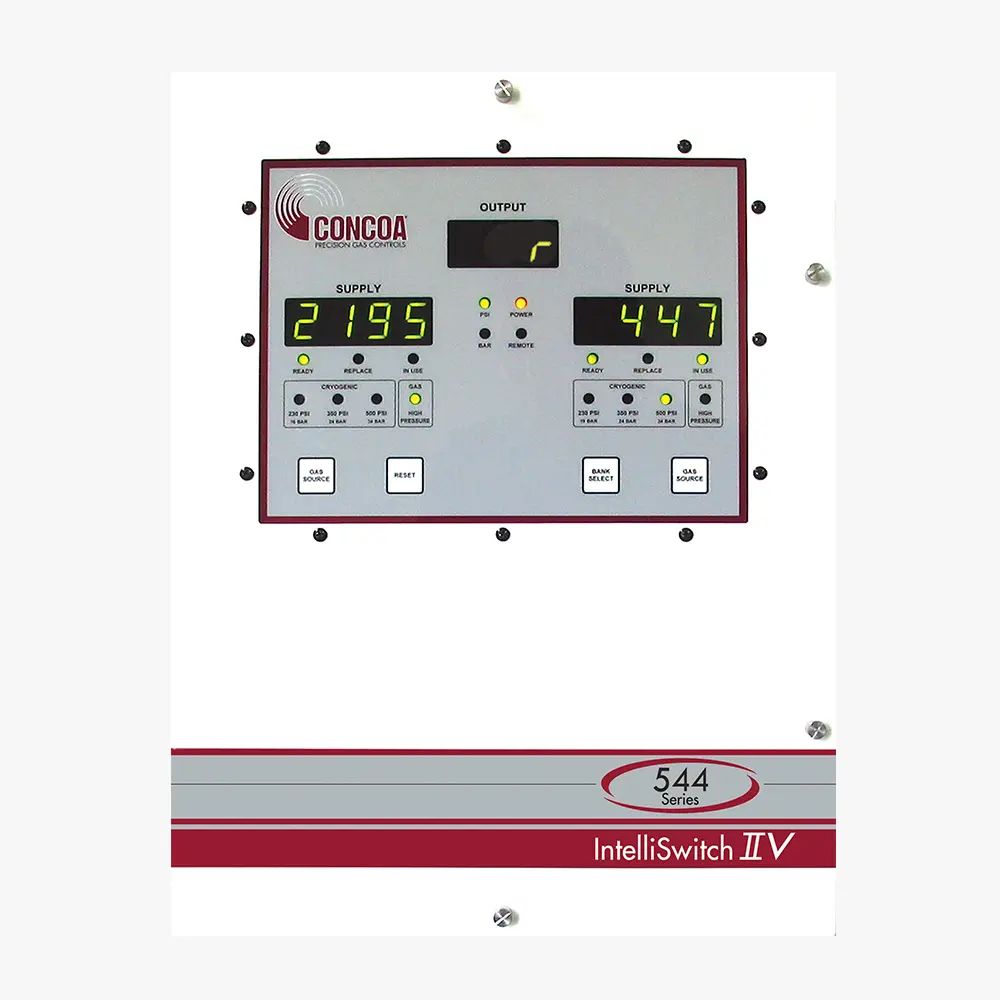

544B004-01-001 shown

The electronic 544 Series IntelliSwitch™ IIv is used to monitor, control, and switch the flow of gas from cryogenic or high pressure cylinders from either of two independent sources. It provides the intelligence and switching capacity of an IntelliSwitch system without an integral regulator. With the simple push of a button, the user can select any model of delivery from liquid cylinders to high pressure cylinders. The outlet pressure will be equal to the pressure in the side selected and will vary or decrease as that source pressure varies or decreases. The CONCOA 544 Series IntelliSwitch IIv features proprietary web server technology allowing remote monitoring, secure system configuration, and email notification of real-time system status and events.

  • Microprocessor control provides fully automatic priority assignment
  • On-site or remote source selection supports liquid cylinder or high pressure service
  • Process gas pilot valve facilitates simple installation
  • Onboard web server and field-adjustable technology allow remote monitoring and process flexibility
  • Low loss technology reduces residual return
  • Electronic economizer eliminates liquid cylinder vent loss
  • Standard NEMA 4 enclosure provides protection in rugged indoor and outdoor environments
  • Max inlet pressure: 3000 PSIG (210 BAR); 4500 PSIG (310 BAR) (requires external pilot gas)
  • Power requirement: 100-240 VAC (terminal block provided with 1/2 in conduit hole)
  • Temperature range: 0°F to 140°F (-18°C to 60°C)
  • Cv: 1.0
  • Filter: 40-micron
  • Inlet/Outlet connections: 1/2 in FNPT
  • Valve bodies: Brass barstock
  • Valve stems: 316L stainless steel
  • Valve seats: PCTFE
  • Seals: PTFE, PCTFE, and FKM
  • Enclosure: NEMA 4, powder-coated steel
  • Weight: 67 lbs (30.4 kg)
  • Conformances: CE marked; CRN: OH17950.5
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
Document
Language
ID Number
Revision
544 Series IntelliSwitch™ llv Catalog Page
English
RS544IS
AG
IntelliSwitch™ IIv Installation and Operation
English
ADI9527
F
IntelliSwitch™ Webserver Installation and Users Guide
English
ADI9530
B
CRN File OH17950
English
CRNOH17950
26
