52L Series Gas MicroManifold

Compact manifold system for laboratory gas applications

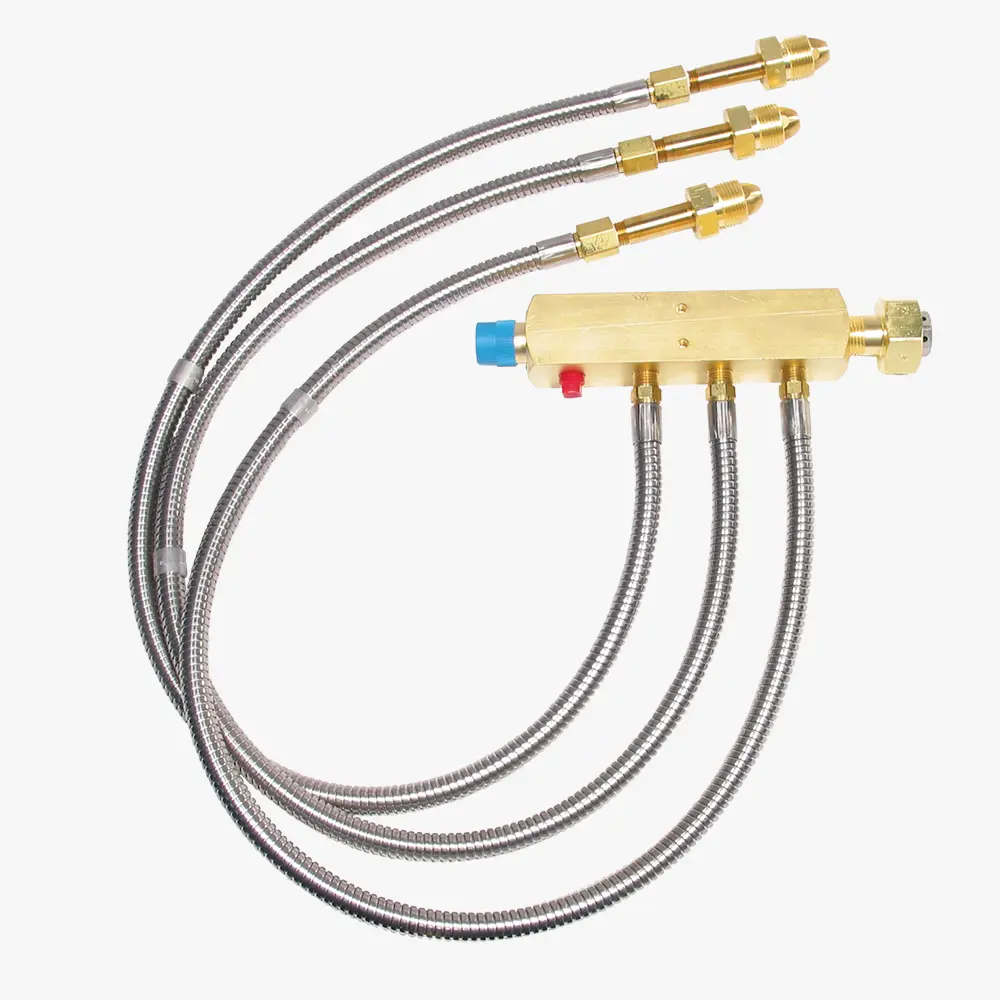

52L1053-01-580 shown

The 52L Series Gas MicroManifold is a flexible, non-corrosive gas distribution system. Configured as a gas manifold, the 52L offers excellent gaseous flow capacity from either liquid cans or high-pressure cylinders to a CONCOA pressure control device. Its flexible compact design makes it ideally suited for use with many CONCOA 500 Series and 600 Series switchover systems.

  • Safety disk protects manifold from overpressurization
  • Compact modular design provides simple field expandability
  • Multiple cylinder hose options allow universal gas compatibility
  • Max inlet pressure: 3000 PSIG (207 BAR); 4500 PSIG (310 BAR) optional
  • Temperature range: 0°F to 140°F (-18°C to 60°C)
  • Inlet connections: Four 1/4 in FNPT; One 1/2 in FNPT
  • Outlet connection: 1/2 in MNPT
  • Weight: 4.20 lbs (1.91 kg)
  • Body: Brass barstock
  • Flexible hoses: 316L stainless steel; Monel® inner core for oxygen service
  • Conformances: CRN OH15806.5
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
ID Number
52 L Series Gas/Vent MicroManifolds Catalog Page
52L / 629 Series MicroManifold and Vent Kits Installation and Operation
CRN File OH15806
