5600 Series Cylinder Regulator

Rugged, single stage cylinder regulator for medium duty heating and cutting applications

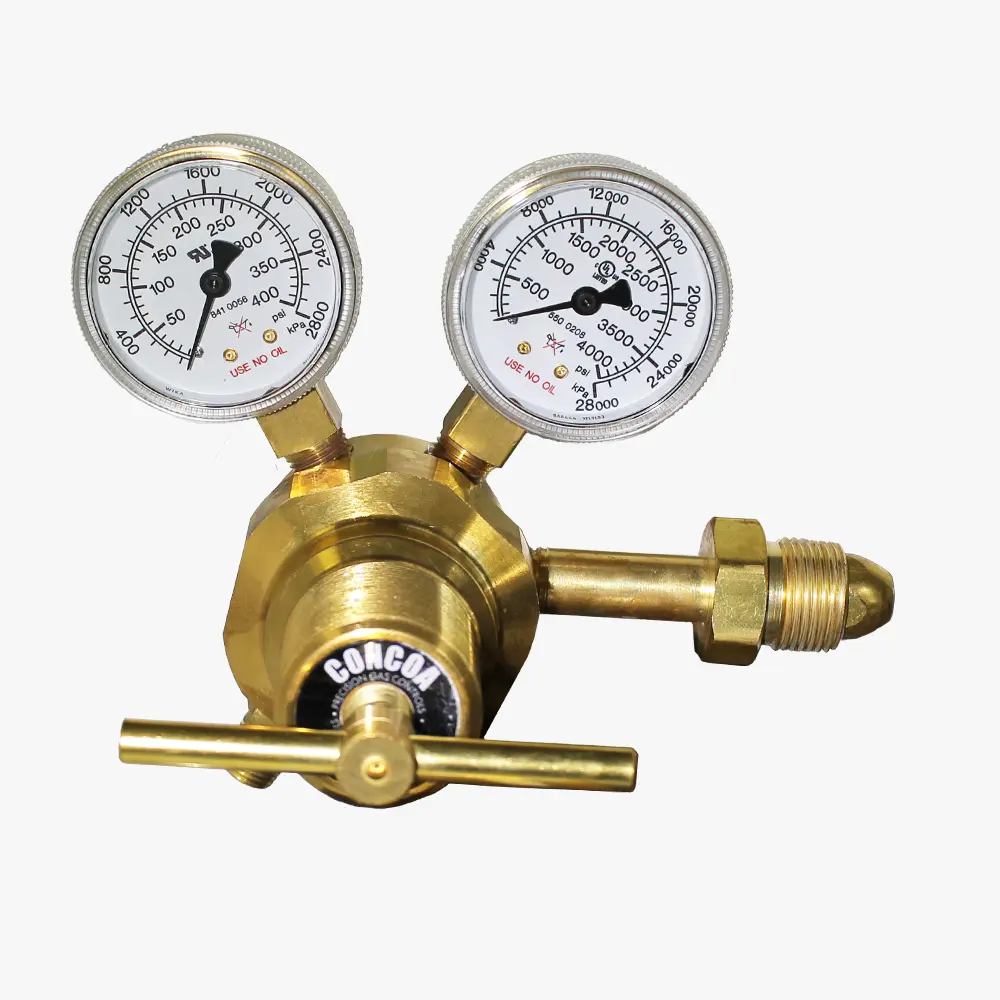

8065611-01-580 shown
Rugged, single stage cylinder regulator for medium duty heating and cutting applications

The 5600 Series regulator provides primary pressure control of industrial gas cylinders in applications requiring inlet pressures up to 3000 PSIG (210 BAR) and outlet pressures up to 250 PSIG (17 BAR) where small changes in the gas delivery pressure will not affect performance. With higher delivery pressure ranges suitable for a variety of standard industry gases, the CONCOA 5600 Series cylinder regulator is the right choice for any high-pressure welding, heating, and cutting applications.

  • Heavy brass bonnet and machined brass body ensures high durability
  • Chloroprene diaphragm maintains steady pressure control
  • Medium-large seat displacement supports high flow capacity
  • CAPSULE® seat design provides maximum reliability and easy maintenance
  • Body: Forged brass
  • Bonnet: Brass barstock
  • Gauges: 2 in (50 mm) diameter brass
  • Seat: PTFE
  • Filter: 25-micron sintered bronze
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Diaphragm: Chloroprene
  • Cv: 0.15
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; CRN OH5216.5R2
◂ scroll to see more ▸
Part Number Gas Service Inlet Connection Max Inlet Pressure Outlet Connection Max Delivery Pressure Pressure Gauges
8065601-01-1 Argon, Nitrogen, Helium (inert gas) CGA 580 3000 PSIG
(210 BAR) 		5/8 in -18 (B)
RH Int 		120 PSIG
(8 BAR) 		0-200 PSIG/0-1400 kPa
and 0-4000 PSIG/0-28,000 kPa
8065602-01-1 Acetylene CGA 300 300 PSIG
(21 BAR) 		9/16 in -18 (B) LH Ext 15 PSIG
(1 BAR) 		0-30 PSIG/0-200 kPa
and 0-400 PSIG/0-2800 kPa
8065603-01-1 Industrial Air CGA 590 3000 PSIG
(210 BAR) 		1/4 in MNPT 120 PSIG
(8 BAR) 		0-200 PSIG/0-1400 kPa
and 0-4000 PSIG/0-28,000 kPa
8065606-01-1 Oxygen CGA 540 3000 PSIG
(210 BAR) 		9/16 in -18 (B) RH Ext 120 PSIG
(8 BAR)		 200 PSIG/0-1400 kPa
and 0-4000 PSIG/0-28,000 kPa
8065608-01-1 Breathing Air CGA 346 3000 PSIG
(210 BAR) 		1/4 in MNPT 120 PSIG
(8 BAR) 		0-200 PSIG/0-1400 kPa
and 0-4000 PSIG/0-28,000 kPa
8065609-01-1 Acetylene CGA 510 300 PSIG
(21 BAR)		 9/16 in -18 (B) LH Ext 15 PSIG
(1 BAR) 		0-30 PSIG/0-200 kPa
and 0-400 PSIG/0-2800 kPa
8065611-01-1 Argon, Nitrogen, Helium (inert gas) CGA 580 3000 PSIG
(210 BAR) 		1/4 in MNP 250 PSIG
(17 BAR) 		0-400 PSIG/0-2800 kPa
and 0-4000 PSIG/0-28,000 kPa
8065613-01-1 Industrial Air CGA 590 3000 PSIG
(210 BAR) 		1/4 in MNPT 250 PSIG
(17 BAR) 		0-400 PSIG/0-2800 kPa
and 0-4000 PSIG/0-28,000 kPa
8065616-01-1 Oxygen CGA 540 3000 PSIG
(210 BAR) 		1/4 in MNPT 250 PSIG
(17 BAR) 		0-400 PSIG/0-2800 kPa
and 0-4000 PSIG/0-28,000 kPa
8065618-01-1 Breathing Air CGA 346 3000 PSIG
(210 BAR) 		1/4 in MNPT 250 PSIG
(17 BAR) 		0-400 PSIG/0-2800 kPa and
0-4000 PSIG/0-28,000 kPa
8065632-01-1 Fuel Gas CGA 510 300 PSIG
(21 BAR) 		9/16 in -18 (B) LH Ext 40 PSIG
(3 BAR) 		0-60 PSIG/0-400 kPa and
0-400 PSIG/0-2800 kPa
8065681-01-1 Hydrogen CGA 350 3000 PSIG
(210 BAR) 		9/16 in -18 (B) LH Ext 40 PSIG
(3 BAR) 		0-60 PSIG/0-400 kPa
and 0-4000 PSIG/0-28,000 kPa
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
5600 Series Cylinder Regulators Catalog Page
English
IN5600CR
M
Download
Regulators Installation and Operation Instructions
English
ADI1608
L
Download
CRN File OH5216
English
CRNOH5216
26
