56H Series Industrial Cylinder Regulator

Single stage, six-port cylinder regulator for general industrial applications

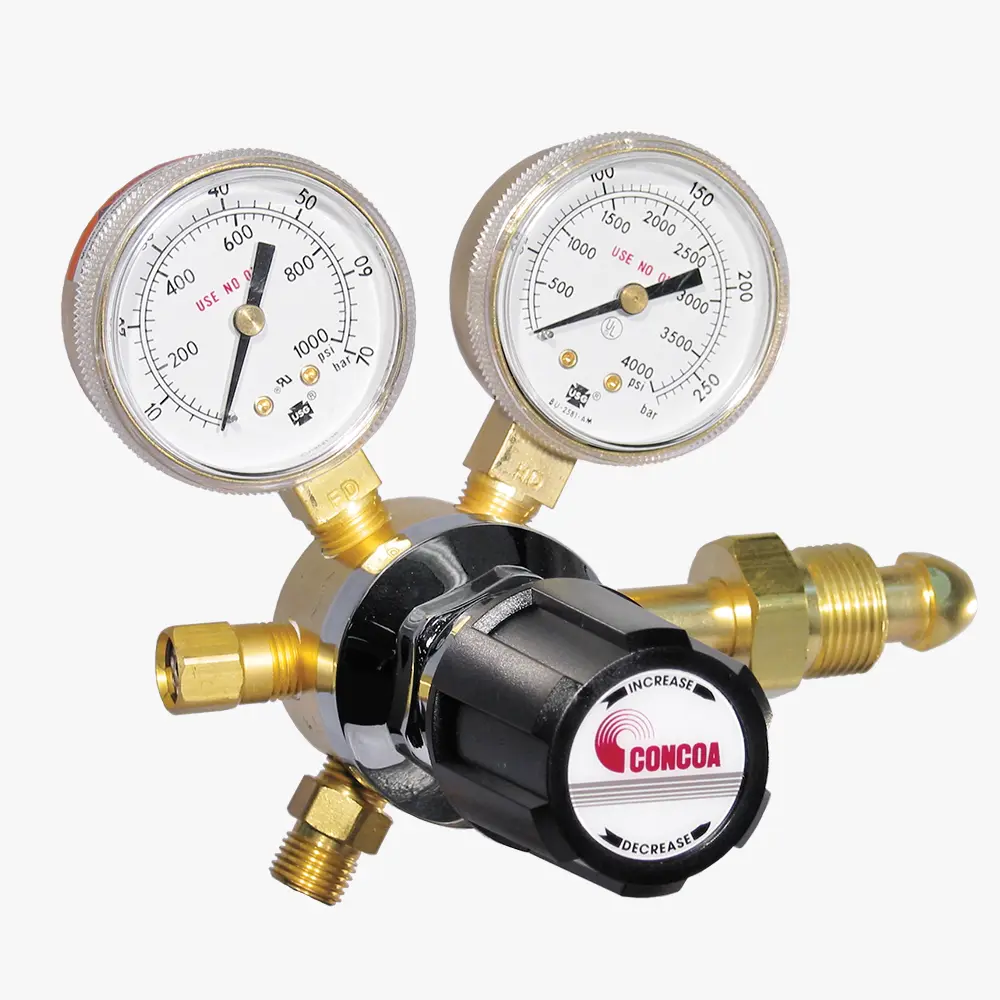

56H5311-01-580 shown
Single stage, six-port cylinder regulator for general industrial applications

The 56H Series medium heavy-duty welding, heating, and cutting regulator provides primary pressure control of industrial gas cylinders with outlet pressures up to 500 PSIG (35 BAR). The heavy-duty, brass barstock body provides high durability, while the encapsulated seat design provides steady and reliable pressure control with an extended component lifecycle. Combined with a wide range of delivery pressures and configurations, the 56H Series regulator is a flexible and durable choice for cylinder and pipeline applications.

  • 316L stainless steel diaphragm maintains cold climate performance
  • High leak integrity supports critical environment performance
  • CAPSULE® seat assembly ensures high cycle life and easy maintenance
  • Chrome-plated, die-cast zinc bonnet provides protection from corrosion
  • Body: Brass barstock
  • Bonnet: Chrome-plated, die-cast zinc
  • Gauges: 2 in (50 mm) diameter brass
  • Seat: PTFE
  • Filter: 25-micron sintered bronze
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Diaphragm: 316L stainless steel
  • Cv: 0.2
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; CRN OH5216.5R2
◂ scroll to see more ▸
Part Number Gas Service Inlet Connection Max Inlet Pressure Outlet Connection Max Delivery Pressure Pressure Gauges
56H5311-01-580 Argon, Nitrogen, Helium (inert gas) CGA 580 3000 PSIG
(210 BAR) 		1/4 in MNPT 500 PSIG
(35 BAR) 		0-1000 PSIG/0-70 BAR and
0-4000 PSIG/0-275 BAR
56H33B1-01-540 Oxygen CGA 540 3000 PSIG
(210 BAR) 		9/16 in -18 (B) RH Ext 100 PSIG
(7 BAR) 		30VAC-0-200 PSIG/-1VAC-0-14 BAR
and 0-4000 PSIG/0-275 BAR
56H73B1-01-540 Oxygen CGA 540 3000 PSIG
(210 BAR) 		9/16 in -18 (B) RH Ext 150 PSIG
(10 BAR)		 30VAC-0-200 PSIG/-1VAC-0-14 BAR
and 0-4000 PSIG/0-275 BAR
56H23C1-01-350 Hydrogen CGA 350 3000 PSIG
(210 BAR) 		9/16 in -18 (B) LH Ext 50 PSIG
(3.5 BAR) 		30VAC-0-100 PSIG/-1VAC-0-7 BAR
and 0-4000 PSIG/0-275 BAR
56H73C1-01-350 Hydrogen CGA 350 3000 PSIG
(210 BAR) 		9/16 in -18 (B) LH Ext 150 PSIG
(10 BAR) 		30VAC-0-200 PSIG/-1VAC-0-14 BAR
and 0-4000 PSIG/0-275 BAR
56H87C1-01-300 Acetylene CGA 300 300 PSIG
(20 BAR) 		9/16 in -18 (B) LH Ext 15 PSIG
(1 BAR) 		0-30 PSIG/0-2 BAR and
0-400 PSIG/0-27 BAR
56H87C1-01-510 Acetylene CGA 510 300 PSIG
(20 BAR) 		9/16 in -18 (B) LH Ext 15 PSIG
(1 BAR) 		0-30 PSIG/0-2 BAR and
0-400 PSIG/0-27 BAR
56H23D1-01-320 Carbon Dioxide CGA 320 3000 PSIG
(210 BAR)		 5/8 in -18 (B) RH Int 50 PSIG
(3.5 BAR)		 30VAC-0-100 PSIG/-1VAC-0-7 BAR
and 0-4000 PSIG/0-275 BAR
56H33D1-01-580 Argon, Nitrogen, Helium (inert gas) CGA 580 3000 PSIG
(210 BAR) 		5/8 in -18 (B) RH Int 100 PSIG
(7 BAR) 		30VAC-0-200 PSIG/-1VAC-0-14 BAR
and 0-4000 PSIG/0-275 BAR
56H73D1-01-320 Carbon Dioxide CGA 320 3000 PSIG
(210 BAR) 		5/8 in -18 (B) RH Int 150 PSIG
(10 BAR) 		30VAC-0-200 PSIG/-1VAC-0-14 BAR
and 0-4000 PSIG/0-275 BAR
56H73D1-01-580 Argon, Nitrogen, Helium (inert gas) CGA 580 3000 PSIG
(210 BAR) 		5/8 in -18 (B) RH Int 150 PSIG
(10 BAR) 		30VAC-0-200 PSIG/-1VAC-0-14 BAR
and 0-4000 PSIG/0-275 BAR
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
56H Series Cylinder Regulators Catalog Page
English
IN56HR
M
Download
Regulators Installation and Operation Instructions
English
ADI1608
L
Download
CRN File OH5216
English
CRNOH5216
26
