577 Series CryoWiz Cryogenic Switchover System

Cryogenic liquid nitrogen supply systems for critical cryogenic applications

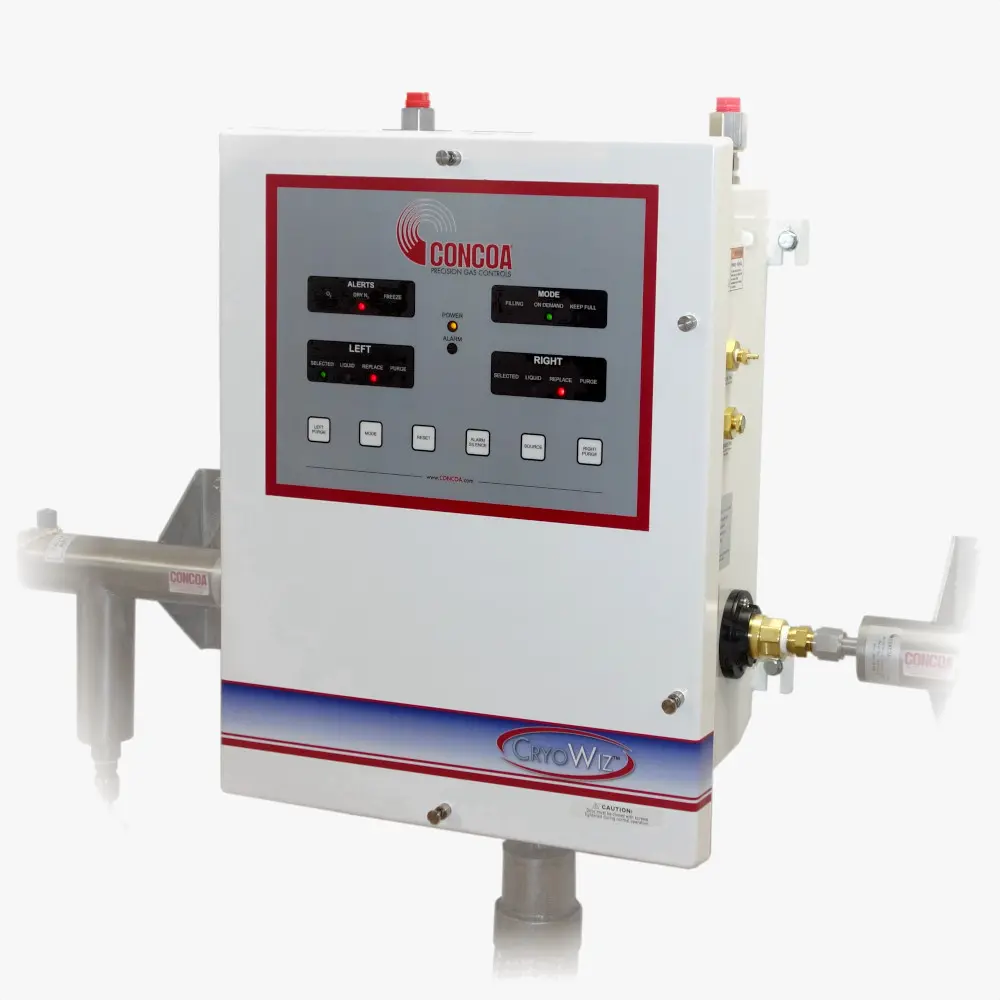

5771113-01-100 shown

The 577 Series CryoWiz™ revolutionizes the supply of cryogenic liquid nitrogen to freezers, environmental chambers, and other critical cryogenic applications. Using proprietary algorithms and dynamic hot-gas bypass, the CryoWiz Cryogenic Switchover System automatically switches between primary and secondary sources to deliver a seamless supply of cryogen with minimal temperature change. Proprietary onboard web server technology allows remote monitoring, secure system configuration, and email notification of real-time system status and events. With an unprecedented emphasis on safety and efficiency, the fully customizable CryoWiz can accommodate new usage profiles with a push of a button. The CONCOA CryoWiz is specifically designed for cryogenic applications. To effectively manage cryogenic liquid cylinders in gas phase applications, CONCOA recommends the IntelliSwitch family of products.

  • Automatic proprietary control algorithm ensures continuous efficient supply
  • Insulated switching mechanism minimizes flash loss of liquid
  • High flow cryogenic valves deliver an optimal supply of liquid nitrogen
  • Compact NEMA 12 enclosure with condensate drain eliminates moisture buildup
  • Oxygen deficiency relay contact allows easy connection of oxygen deficiency monitor to ensure safe use
  • Local audible and visual alarm provides onboard emergency monitoring
  • Ethernet port/webserver enables remote monitoring of functions, e-mail alerts, and remote configuration
  • Button selectable "Keep-full" and "On Demand" modes accommodate new applications
  • Max inlet pressure: 35 PSIG (2.5 BAR)
  • Internals: Brass barstock
  • Cryogenic relief valves: 50 PSIG (3.5 BAR); 1/2 in FNPT
  • Hot gas bypass: 1/2 in FNPT
  • Inlet/Outlet connections: CGA 295
  • Drain: 1/2 in PVC
  • Alarm output: 1 or 5 dry contact NC
  • Alarm input: From oxygen deficiency monitor output relay
  • Pneumatic gas: 95 PSIG (6.5 BAR) - 105 PSIG (7.5 BAR) gaseous dry nitrogen
  • Pneumatic input: 1/8 in FNPT
  • Communication ports: Ethernet & USB (maintenance only)
  • Enclosure: NEMA 12 powder-coated steel
  • Power: 90-264 VAC; 47-63 Hz (US, UK, European, Australian, and Chinese adapters included)
  • Weight: 40 lbs (18 kg)
  • Conformances (power supply): Safety approvals CCC, CE, FCC, PSE, RCM, UKCA, UL/cUL; CRN OH17950.5
  • Conformances: CE marked; Cleanliness meets or exceeds CGA G-4.1; CRN OH5216.5
◂ scroll to see more ▸
Part NumberDescription
5771113-01-100 CryoWiz Liquid Nitrogen Automatic Switchover System with Web Server Technology. Please Note: This Unit Requires Dry Nitrogen Gas Supplied at 95-105 PSIG for Pneumatic Operation.
◂ scroll to see more ▸
Document
Language
ID Number
Revision
577 Series CryoWiz™ Catalog Page
English
RS577CW
AH
CryoWiz Installation and Operating Instructions
English
ADI5770
P
CryoWiz Webserver Configuration Instructions
English
ADI5774
B
CONCOA CryoWiz™ Brochure
English
SPF450
E
CONCOA Life Sciences Brochure
English
SPF1010
B
CRN File OH17950
English
CRNOH17950
26
