619 Series Switchover
Pressure differential switchover for carbon dioxide laser resonator gases

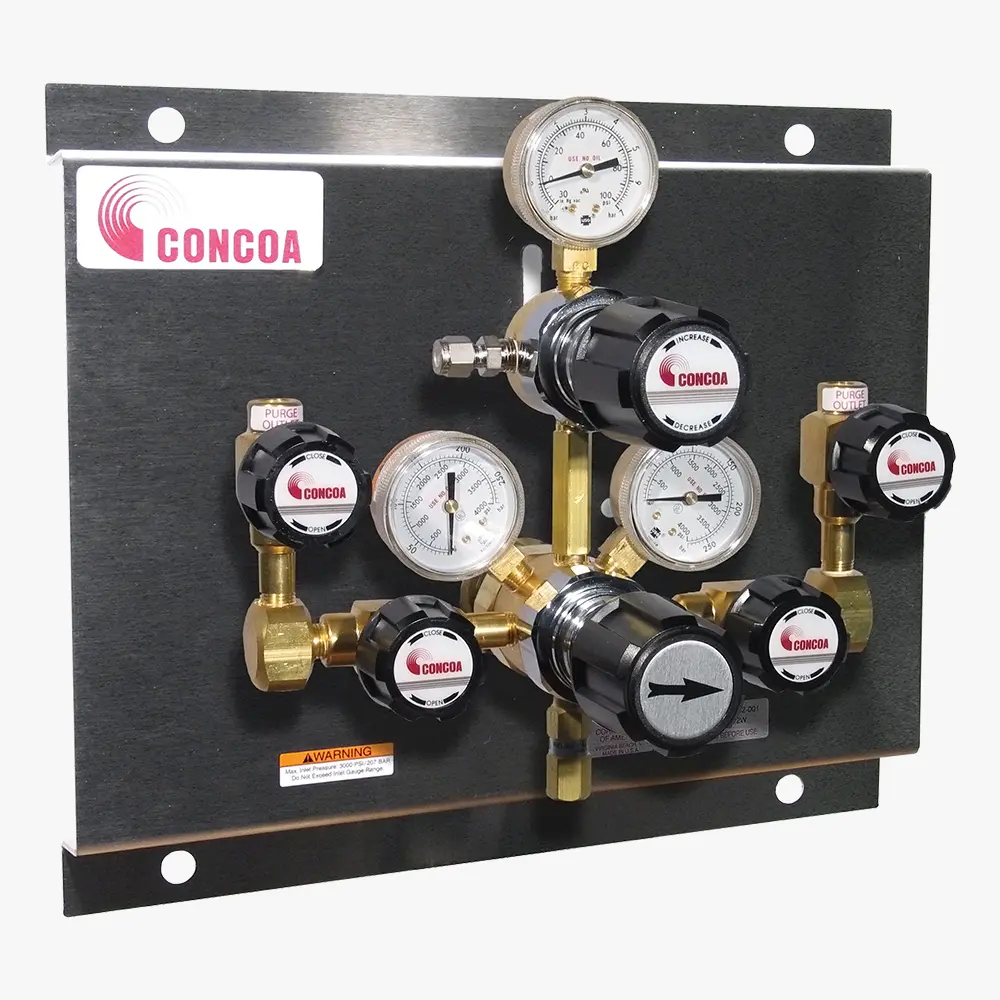

6192001-01-001M shown
The 619 Series Switchover is an automatic pressure differential switchover that delivers a continuous supply of resonator gas without compromising purity. Low internal volume coupled with an optional inlet micro-purge virtually eliminates gas contamination. In addition, the stainless steel diaphragms and double-seal relief valve allow the 619 Switchover to achieve 1 x 10⁻⁸ scc/sec helium leak integrity. Optional remote alarm capability provides visual and audible notification of cylinder depletion for continuous system operation.
- 316L stainless steel diaphragm protects against inboard diffusion
- CAPSULE® seat design features integral 360° filtration
- Metal-to-metal seal prevents leaks and system contamination
- Low wetted surface area minimizes purge requirements
