620 Series Switchover

Pressure differential automatic switchovers for carbon dioxide laser resonator gases

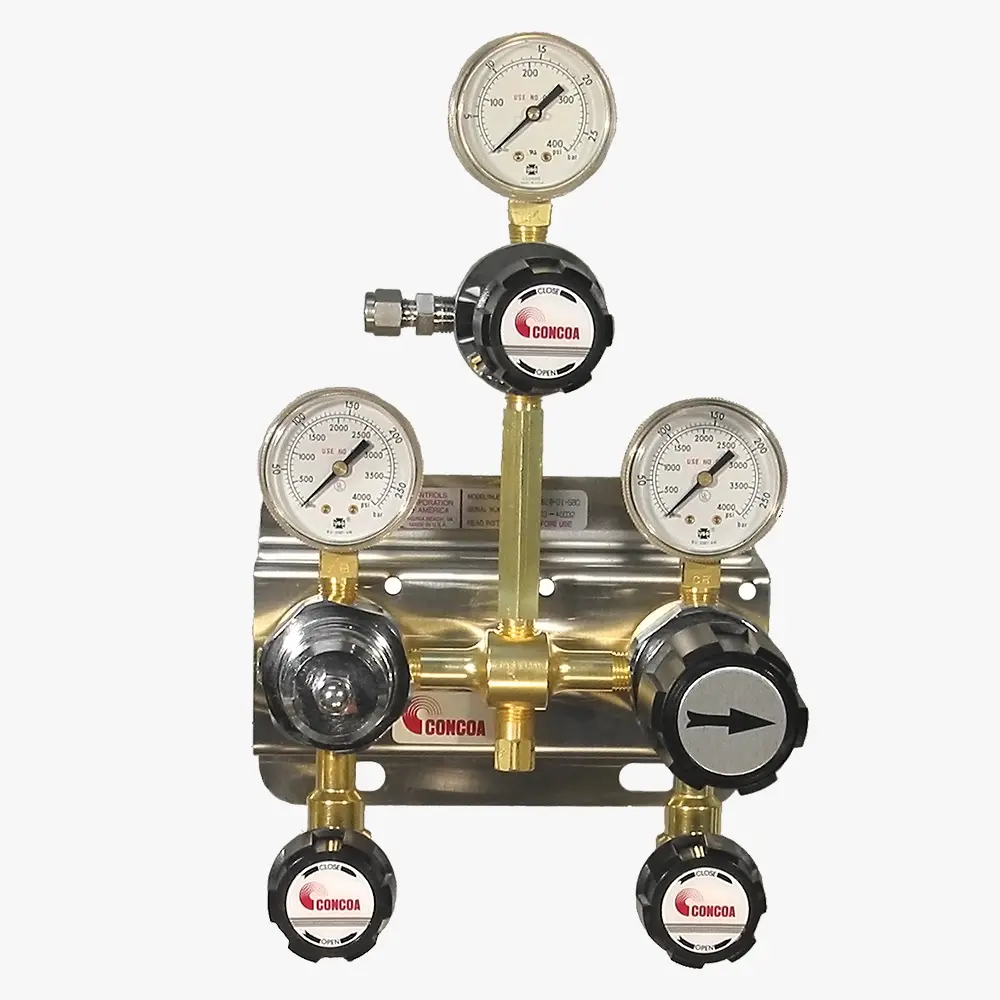

6203008-01-000 shown

The 620 Series Switchover is an automatic system designed to provide a continuous supply of laser purity gas. The system comes with either flexible hoses for use with two cylinders (one per side), or manifolds for two or more cylinders per side. CONCOA 620 Series Laser Gas Switchovers require final pressure regulation, which may be ordered integrally to the system, or separately for installation at the point-of-use.

Note: This item has been discontinued. Please see the CONCOA 526 Series Automatic Switchover for all applications previously using the 620 Series Automatic Switchover.

  • CAPSULE® seat features integral 360° filtration
  • User-friendly priority valve allows easy, one-knob switch of cylinder priority
  • Laser quality diaphragm and seals limits contamination
  • Inlet gland check valve in optional hose prevents contamination and backflow
  • Max inlet pressure: 3000 PSIG (210 BAR)
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Gauges: 2 in (50 mm) diameter brass
  • Outlet connections: 1/4 in stainless steel compression tube fittings
  • Helium leak integrity: 1 x 10⁻⁸ scc/sec
  • Cv: 0.2
  • Regulator bodies: Brass barstock
  • Seats: PTFE
  • Filters: 10-micron sintered bronze
  • Diaphragms: 316L stainless steel
  • Internal seals: PTFE
  • Conformances: ANSI/ASME B40.1; CRN OH15806.5
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
ID Number
620 Series Switchovers Catalog Page
620 Series Switchover Systems Installation and Operation
CRN File OH15806
