622 Series Dome-Loaded Regulator

High flow, integral dome-loaded regulator for industrial laser process gases

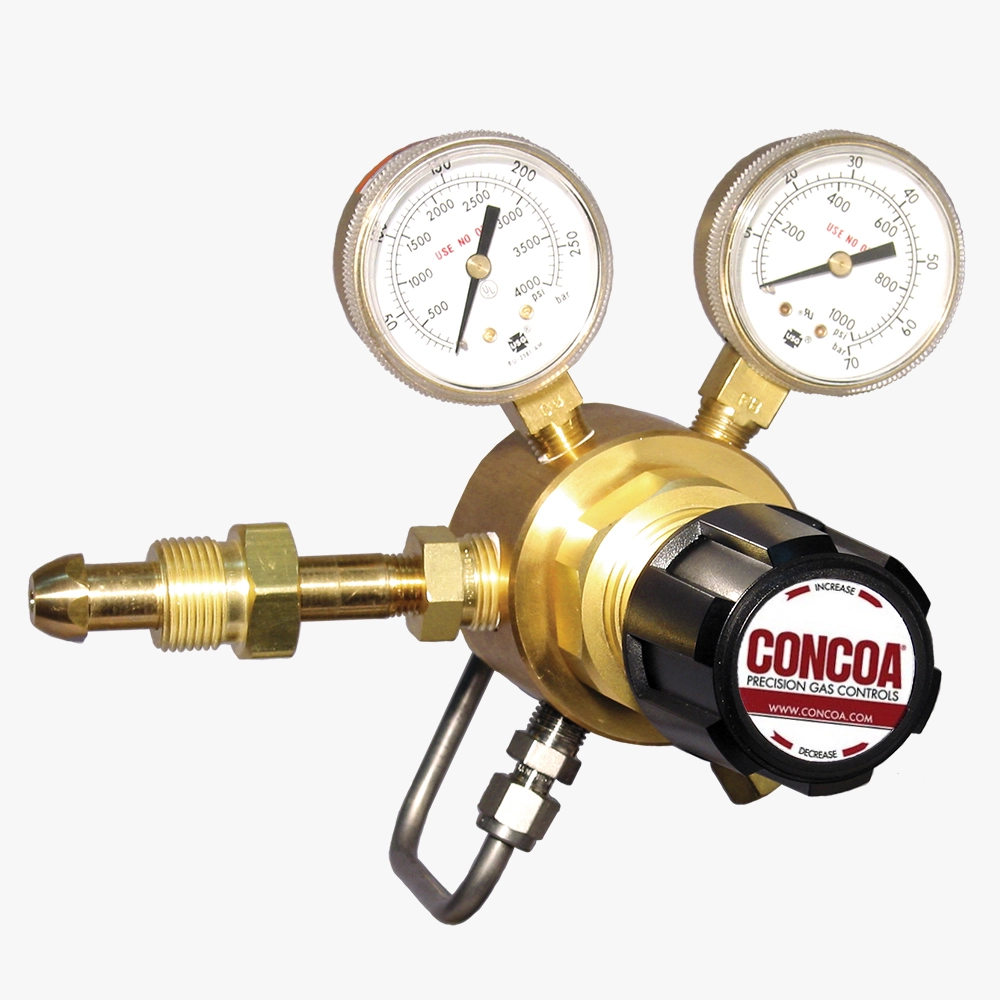

6223503-01-580 shown
622 Series High flow dome-loaded regulator for industrial laser process gases

The 622 Series dome-loaded regulator is suitable for flows of up to 5,200 cubic feet per hour. The single-body design of the 622 Series offers high flow and high pressure in a compact purge regulator assembly. Achieve precise, stable pressure control with the CONCOA 622 Series dome-loaded regulator, ideal for high-flow, high-sensitivity gas delivery in critical laboratory and industrial applications.

  • Inlet pressures from 600 PSIG (42 BAR) to 4500 PSIG (310 BAR) permits liquid or high pressure use
  • 40-micron internal filter limits the possibility of gas contamination
  • CAPSULE® seat increases serviceability and life
  • Optional wall/panel mounting kit provides diverse system configurations
  • Right and left-hand inlets offer flexible installation options
  • Max inlet pressure: 600 PSIG (42 BAR); 3000 PSIG (210 BAR); or 4500 PSIG (310 BAR)
  • Max flow (nitrogen): 5200 SCFH (2454 lpm)
  • Body: Brass barstock
  • Bonnet: Brass barstock
  • Filter: 40-micron sintered bronze
  • Gauges: 2 in (50 mm) diameter brass
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Tube and fitting: 316L stainless steel
  • Inlet connections: 1/2 in FNPT
  • Outlet connections: 1/2 in FNPT
  • Weight: 5.4 lbs (3.5 kg)
  • Conformances: Cleaned for oxygen service; ANSI/ASME B40.1; CRN OH5216.5R2
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
622 Series Dome-Loaded Regulator Catalog Page
English
LA622DR
J
Download
622 Series Dome-Loaded Regulator Installation and Operation
English
ADI3219
A
Download
CRN File OH5216
English
CRNOH5216
26
