800 Series Torch Handle

Heavy-duty torch handle for heating, welding, and cutting applications

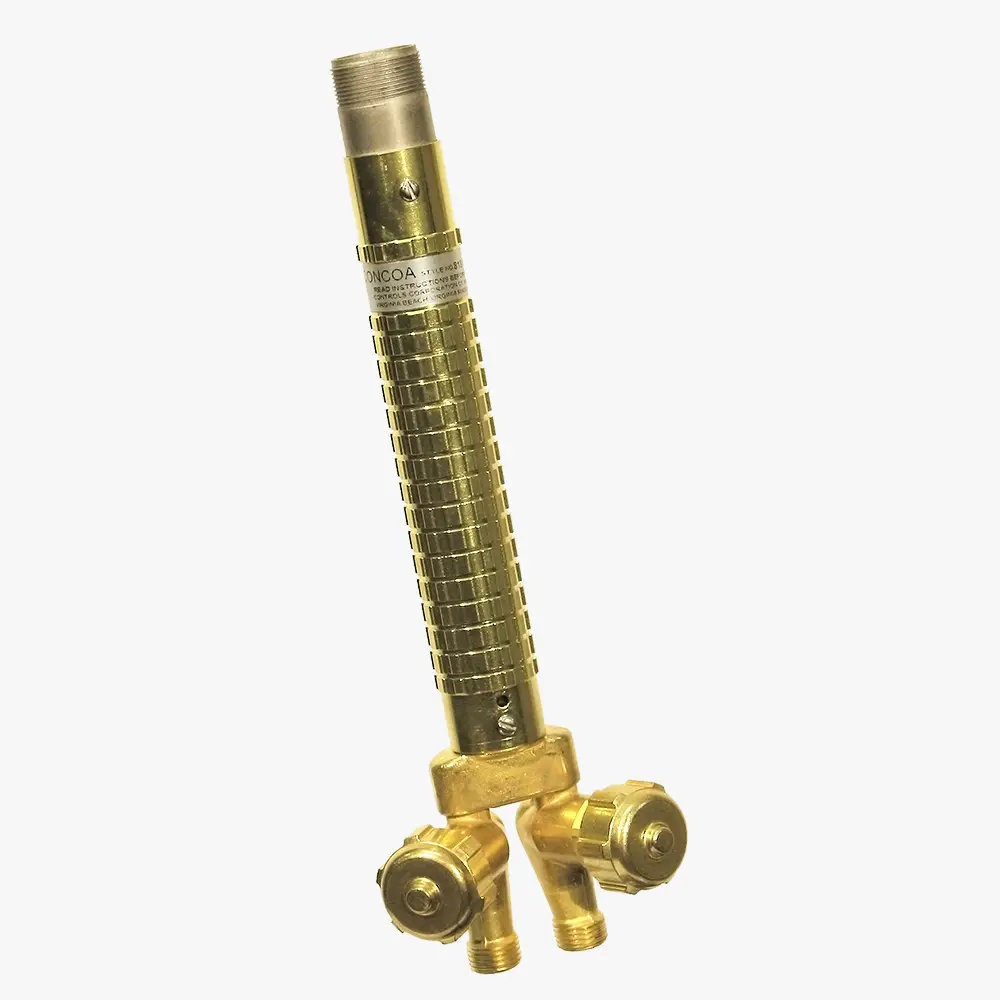

8190800-01-1 shown

CONCOA 800 Series torch handle is suitable for the most demanding heating, welding, and cutting applications. With a superior flow for heavy heating, the 800 Series torch handle can provide up to 1.35 million BTUs per hour with an appropriate tip.

  • All-silver, brazed construction ensures safety and durability
  • Stainless steel ball seat maintains a finger-tight seal
  • Spring-loaded valves provide smooth torque control and anti-backlash flame control
  • Large-diameter valve stems increase strength and durability
  • Straight-through oxygen and fuel tubes avoid mixed gases in the handle
  • Length: 10 in (25 cm)
  • Handle: Brass
  • Connections: 9/16 in -18 (B) Ext
  • Hose sizes: 1/4 in or 5/16 in (6.3 mm or 7.9 mm)
  • Weight (without tip): 1.3 lbs (0.6 kg)
◂ scroll to see more ▸
Part NumberDescription
8190800-01-1Style 800 Series Brass Torch Handle
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
800 Series Torch Handle and Attachments Catalog Page
English
IN800TH
M
Download
Hand Welding and Cutting Torches and Cutting Attachments Installation and Operation
English
ADI1647
J
Download
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872AD
AD
