9600 Series Continuous Carbon Dioxide Analyzer

Carbon dioxider continuous process analyzer for shielding gases

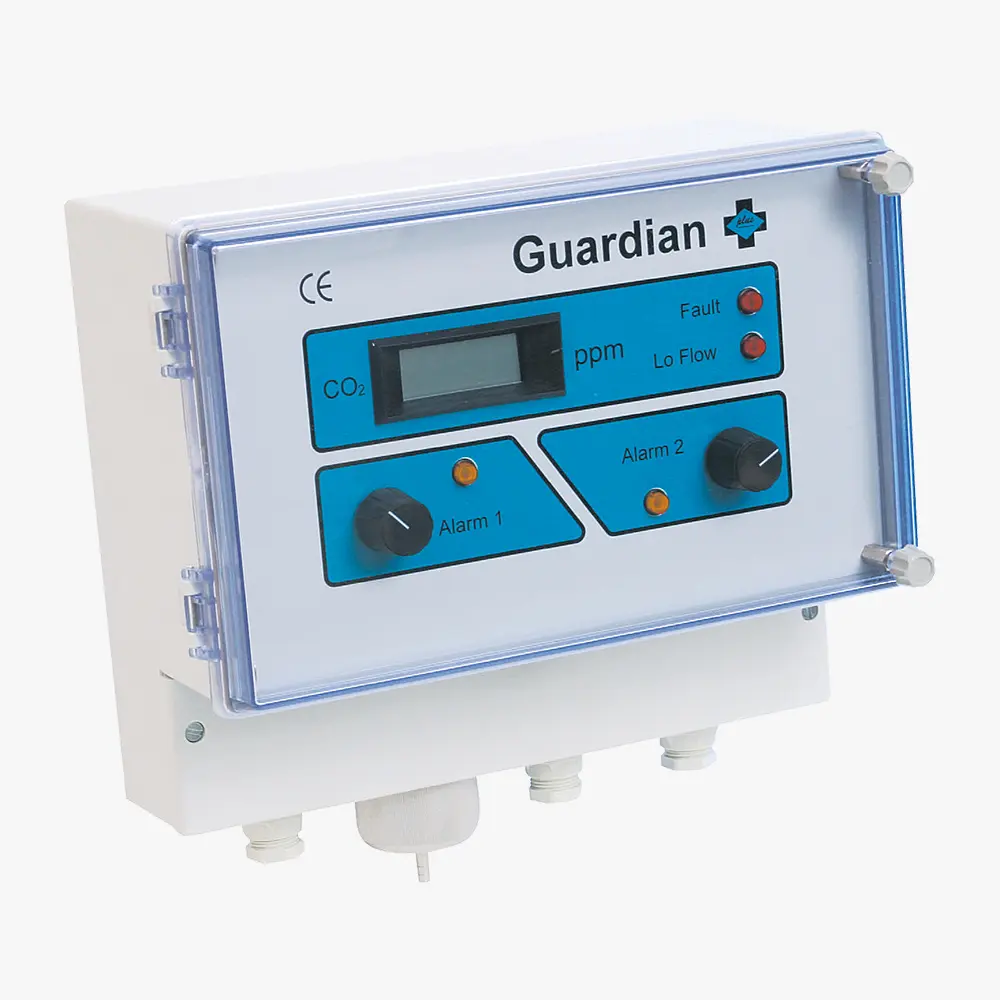

8309600 shown

The Guardian 9600 Series Carbon Dioxide Analyzer is designed to monitor carbon dioxide in argon or nitrogen from a fixed point. The Guardian 9600 Analyzer is suitable for metal fabrication, landfill, horticulture, brewing, and food processing applications. Coupled with the innovative AutoBlend or BlendMaster gas mixer, CONCOA provides a complete gas blending system that ensures long-term quality.

  • Gas-measuring sensors feature high accuracy and excellent long term stability characteristics
  • Graphic screen display provides historic readings over a user-defined period
  • Local high/low visual and audible alarm permits user-selectable set points and high and low triggers for the set points
  • Two standard output capabilities enable greater flexibility in controlling the analog output range
  • IP54 rated enclosure prevents the ingress of particulates and water
  • Password protection prohibits accidental or deliberate change of settings
  • Front panel buttons offer an easy-to-use scrollable menu system
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Accuracy: ± 2% full scale
  • Power requirement: 24V DC (18 - 36V DC)
  • Output capability: 4-20mA/0-20 mA
  • Response time: <30 seconds to 90% step change
  • Enclosure rating: IP54 (NEMA 3.8)
◂ scroll to see more ▸
Part NumberDescription
83096000-30% Carbon Dioxide in Argon 110V Continuous Analyzer, Wall Mountable
83096010-100% Carbon Dioxide in Argon110V Continuous Analyzer, Wall Mountable
◂ scroll to see more ▸
ID Number
9600 Series Continuous Carbon Dioxide Analyzers Catalog Page
