Style 164 Cutting Tip

One-piece, heavy preheat acetylene cutting tip

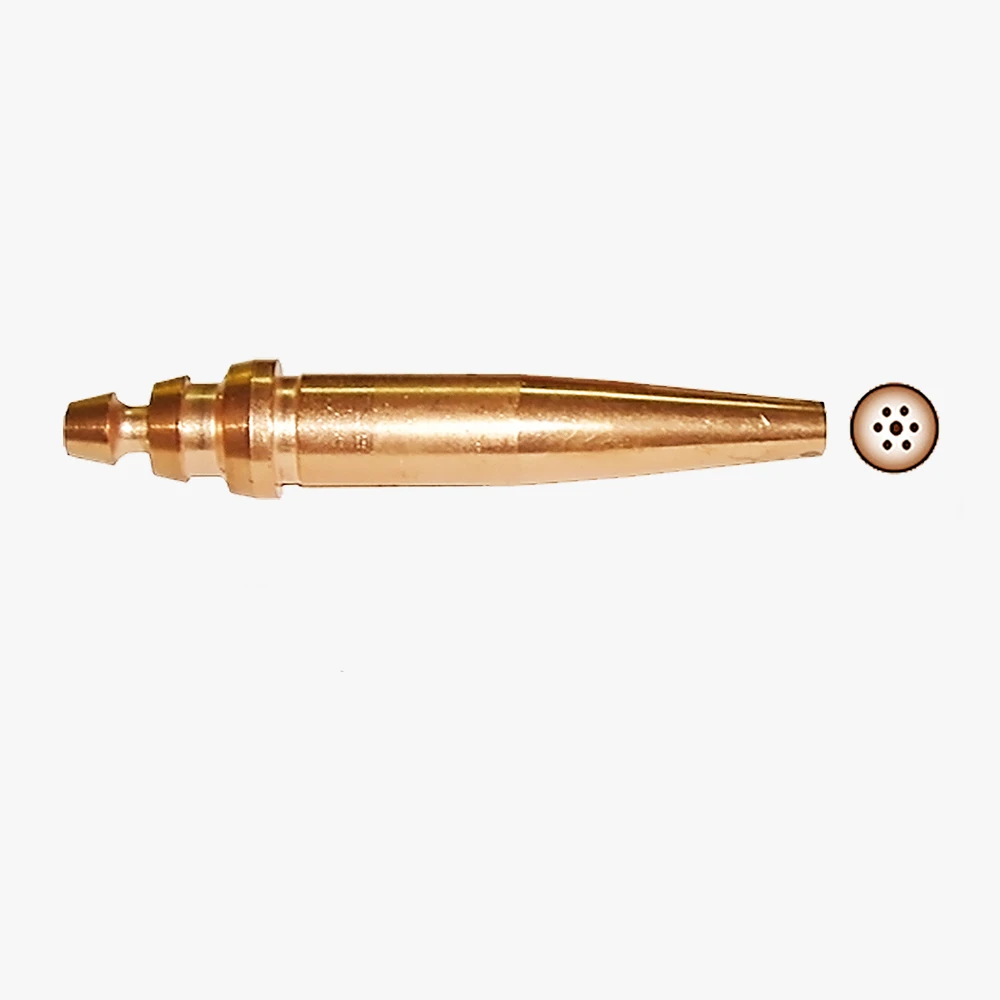

8546402-01-1 shown

Style 164 one-piece cutting tip is a general-purpose tip suitable for work that requires heavy preheating, such as with rusted or heavily painted plate surfaces. The tip is made of high-quality tellurium copper and has a 3/4 inch (2 cm) diameter with six preheat flames. Style 164 cutting tip can be used to cut material up to 16 inches (41 cm) in thickness with acetylene, at speeds of 2 to 24 inches per minute (IPM) based on tip size and material thickness.

Ordering Information

◂ scroll to see more ▸

Part Number	Tip Size	Drill Size	Material Thickness	Speed	Oxygen	Fuel
8546499-01-1	#00	69 (.029 in)	1/8 in (.3 cm)	22-26 IPM	25 PSIG/33 SCFH	1.5 PSIG/13 SCFH
8546400-01-1	#0	64 (.036 in)	5/16 in (.8 cm)	20-24 IPM	30 PSIG/60 SCFH	2 PSIG/17 SCFH
8546401-01-1	#1	57 (.043 in)	1/2 in (1.3 cm)	17-20 IPM	40 PSIG/105 SCFH	3 PSIG/25 SCFH
8546402-01-1	#2	55 (.052 in)	1 in (2.5 cm)	14-16 IPM	50 PSIG/160 SCFH	3 PSIG/27 SCFH
8546403-01-1	#3	53 (.059 in)	1.75 in (4.4 cm)	11-15 IPM	50 PSIG/210 SCFH	3 PSIG/29 SCFH
8546404-01-1	#4	50 (.070 in)	2.5 in (6.3 cm)	9-13 IPM	50 PSIG/275 SCFH	3 PSIG/31 SCFH
8546405-01-1	#5	47 (.078 in)	4 in (10.2 cm)	7-10 IPM	60 PSIG/400 SCFH	4 PSIG/45 SCFH
8546406-01-1	#6	42 (.093 in)	6 in (15.2 cm)	5-8 IPM	55 PSIG/505 SCFH	5 PSIG/52 SCFH
8546407-01-1	#7	36 (.106 in)	8 in (20.3 cm)	4-6 IPM	60 PSIG/680 SCFH	6 PSIG/70 SCFH
8546408-01-1	#8	1/8 (.125 in)	10 in (25.4 cm)	3.5-5 IPM	55 PSIG/760 SCFH	6 PSIG/70 SCFH
8546410-01-1	#10	19 (.345 in)	12 in (30.0 cm)	3-5 IPM	55 PSIG/950 SCFH	6 PSIG/78 SCFH
8546411-01-1	#11	10 (.193 in)	14 in (35.5 cm)	2.5-4 IPM	90 PSIG/1260 SCFH	8 PSIG/85 SCFH
8546412-01-1	#12	2 (.221 in)	16 in (40.6 cm)	2.5-3.5 IPM	105 PSIG/1450 SCFH	7 PSIG/125 SCFH

Product Documents

◂ scroll to see more ▸

Document

Language

ID Number

Revision

Download

Style 164 and Style 144 Cutting Tips Catalog Page

English

IN164T

Download

Safe Practices in Oxy-Fuel Welding and Cutting Brochure

English

ADE0872AD
