9700 Series Cutting Torch

Heavy-duty cutting torch with triangular tubes and brass heads

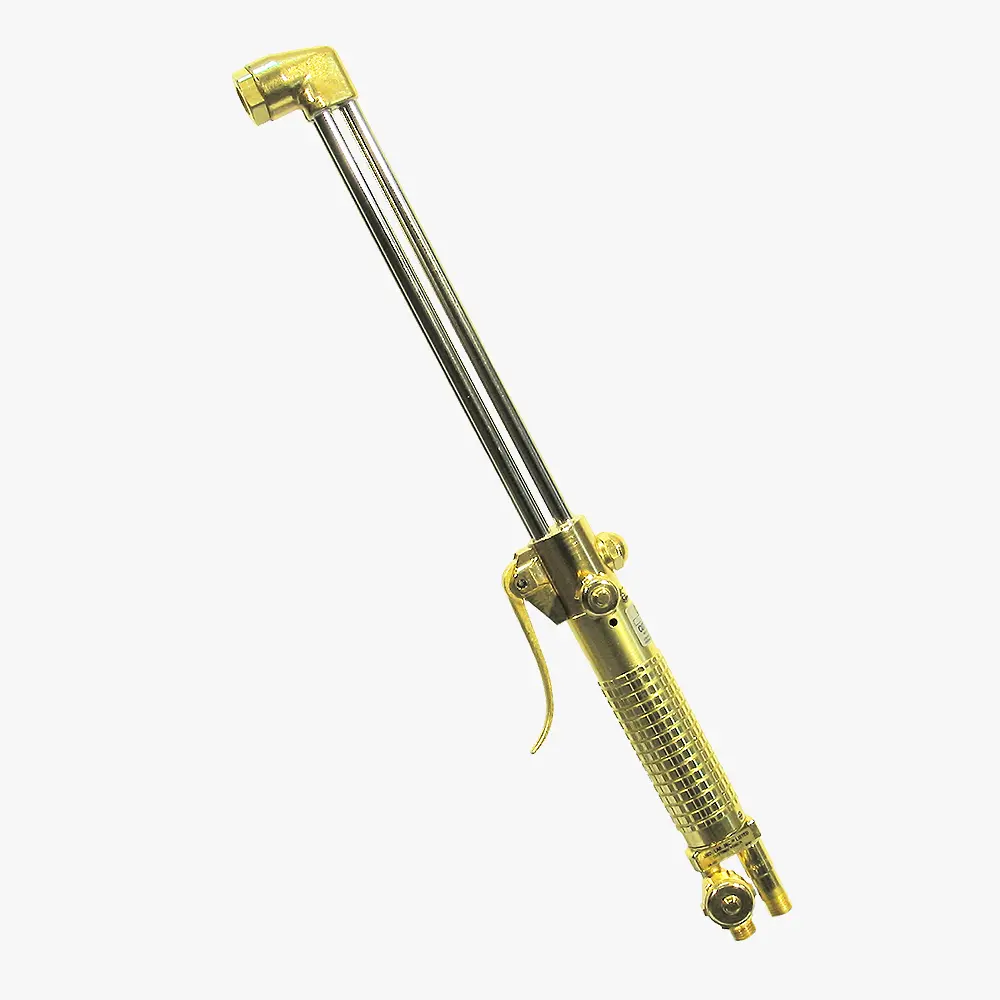

8229706-01-1 shown

CONCOA 9700 Series cutting torch is the leader in high-capacity, heavy duty cutting torches. The three-tube design with brazed connections includes a separate tube for the fuel gas and the pre-heat oxygen, with a third tube for the cutting oxygen. This provides a smooth, sufficient oxygen flow for optimal performance, especially while cutting thicker material. The triangular tube construction maintains superior strength and rigidity, extending from 21 inches (53 cm) to 48 inches (122 cm). The 9700 Series torch is also available with 75°, 90°, and 180° head angle configurations, making it suitable for jobs requiring long reach or access to tight spaces. CONCOA 9700 Series heavy-duty cutting torch is designed for use with all fuel gases and meets the rigorous demands of any high-capacity industrial application.

  • Rugged brass head ensures low maintenance and longer life
  • Nickel alloy triangular tubes maintain superior strength and rigidity
  • Corn Cob® style brass handle provides comfortable and secure, non-slip grip
  • Ease-on cutting oxygen lever offers an exceptionally smooth supply of cutting oxygen and reduces keyholing and slag blowback
  • Three-tube construction permits high gas flow while keeping gases separated to mix safely in the cutting tip
  • Head: Brass
  • Tubes: Nickel alloy
  • Handle: Extruded brass
  • Hose connections: 9/16 in -18 (B) LH
◂ scroll to see more ▸
Part NumberDescription
8229705-01-121 in (53 cm) Hand Cutting Torch with 75° Angled Head; 3.1 lbs (1.4 kgs)
8229706-01-121 in (53 cm) Hand Cutting Torch with 90° Angled Head; 3.1 lbs (1.4 kgs)
8229710-01-121 in (53 cm) Hand Cutting Torch with 180° Angled Head; 3.1 lbs (1.4 kgs)
8229740-01-136 in (91 cm) Hand Cutting Torch with 180° Angled Head; 3.5 lbs (1.6 kgs)
8229755-01-136 in (91 cm) Hand Cutting Torch with 75° Angled Head; 3.5 lbs (1.6 kgs)
8229756-01-136 in (91 cm) Hand Cutting Torch with 90° Angled Head; 3.5 lbs (1.6 kgs)
8229760-01-148 in (122 cm) Hand Cutting Torch with 180° Angled Head; 6.5 lbs (2.9 kgs)
8229785-01-148 in (122 cm) Hand Cutting Torch with 75° Angled Head; 6.5 lbs (2.9 kgs)
8229786-01-148 in (122 cm) Hand Cutting Torch with 90° Angled Head; 6.5 lbs (2.9 kgs)
◂ scroll to see more ▸
Document
Language
ID Number
Revision
9700 Series Cutting Torch Catalog Page
English
IN9700CT
M
Hand Welding and Cutting Torches and Cutting Attachments Installation and Operation
English
ADI1647
K
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872
AE

WARNING: This product can expose you to chemicals including Lead, Chromium, Nickel, and 1-3 Butadiene, which are known to the state of California to cause cancer, birth defects, or other reproductive harm. And, this product can expose you to chemicals including Bisphenol A (BPA) which is known to the State of California to cause female reproductive harm. For more information go to www. PSWarnings.ca.gov.

Corn Cob® is a registered trademark of Controls Corporation of America
