Style 245 Cutting Tip

Two-piece, straight bore cutting tip for use with propylene

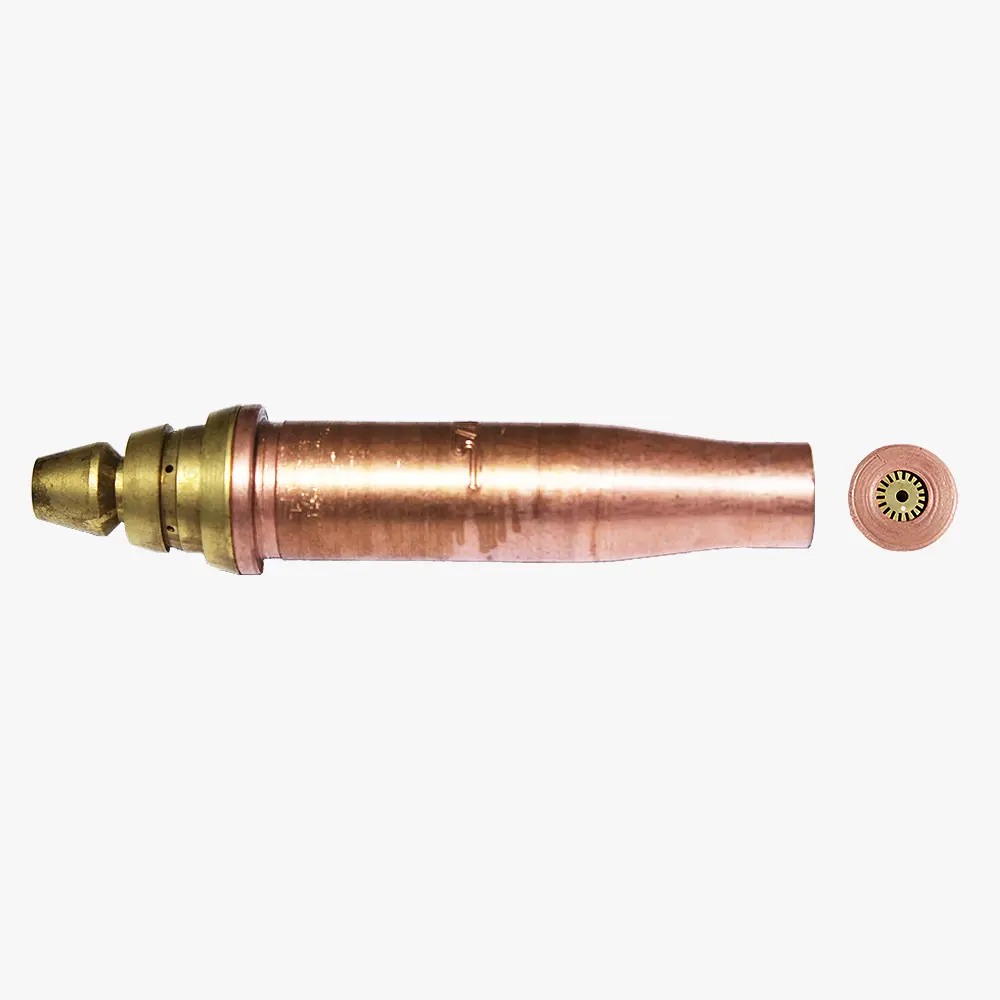

8132499-00-1 shown

CONCOA Style 245 two-piece, straight bore tip features a thin rectangular spline (fine spline) design. This design provides uniform preheat flames with maximum heat transfer. This general-purpose cutting tip is a superior performer for cutting material up to 14 inches (35.5 cm) with propylene. Style 245 cutting tip is for use with the CONCOA 4800-5800 Series cutting attachments and CONCOA Series 3000, 9000, 9500, and 9700 one-piece cutting torches.

◂ scroll to see more ▸
Part Number Tip Size Drill Size Material Thickness Speed Oxygen Fuel Gas
8132499-00-1 #00 72 (.025 in) 3/16 in (0.5 cm) 17-24 IPM 55 PSIG/40-45 SCFH 2-3 PSIG/6-8 SCFH
8132450-00-1 #0 68 (.031 in) 1/4 in (0.6 cm) 16-23 IPM 40 PSIG/55-65 SCFH 2-3 PSIG/6-8 SCFH
8132450-00-1 #0 68 (.031 in) 3/8 in (0.9 cm) 16-23 IPM 45 PSIG/55-65 SCFH 3-4 PSIG/7-10 SCFH
8132451-00-1 #1 62 (.038 in) 1/2 in (1.3 cm) 14-18 IPM 50 PSIG/80-90 SCFH 3-4 PSIG/7-10 SCFH
8132452-00-1 #2 56 (.046 in) 1 in (2.5 cm) 10-14 IPM 55 PSIG/115-120 SCFH 4-5 PSIG/10-14 SCFH
8132453-00-1 #3 54 (.055 in) 1.5 in (3.8 cm) 9-13 IPM 55 PSIG/165-180 SCFH 4-5 PSIG/10-14 SCFH
8132454-00-1 #4 52 (.063 in) 2.5 in (6.3 cm) 8-12 IPM 55 PSIG/230-245 SCFH 5-6 PSIG/14-18 SCFH
8132455-00-1 #5 49 (.073 in) 3 in (7.6 cm) 7-11 IPM 50 PSIG/285-300 SCFH 5-6 PSIG/14-18 SCFH
8132456-00-1 #6 39 (.099 in) 6 in (15.2 cm) 6-9 IPM 60 PSIG/670-685 SCFH 6-7 PSIG/14-18 SCFH
8132456-00-1 #6 39 (.099 in) 8 in (20.3 cm) 6-9 IPM 65 PSIG/715-730 SCFH 6-7 PSIG/14-18 SCFH
8132457-00-1 #7 30 (.128 in) 10 in (25.4 cm) 5-8 IPM 65 PSIG/935-945 SCFH 7-8 PSIG/18-20 SCFH
8132457-00-1 #7 30 (.128 in) 12 in (30.5 cm) 5-8 IPM 70 PSIG/985-1000 SCFH 7-8 PSIG/18-20 SCFH
8132458-00-1 #8 18 (.169 in) 14 in (35.6 cm) 4-6 IPM 70 PSIG/1075-1090 SCFH 7-8 PSIG/18-20 SCFH
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Style 245 and Style 345 Cutting Tips Catalog Page
English
IN245T
M
Download
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872AD
AD
