Style 195 Cutting Tip

One-piece, medium preheat acetylene cutting tip

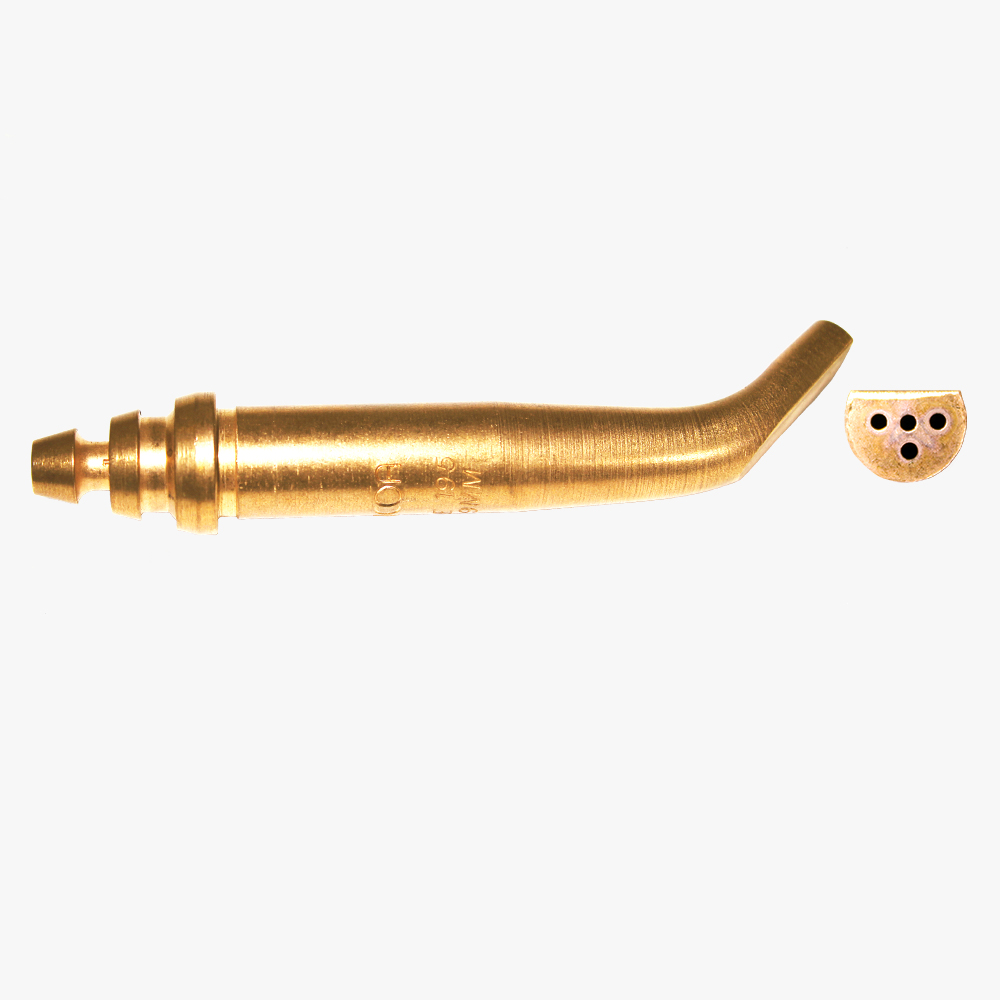

8549501-00-1 shown

CONCOA Style 195 one-piece cutting tip is a medium preheat tip with one side milled flat. It has a flared cutting orifice that provides a large, low-velocity oxygen stream. Style 195 tip has three preheat flames and a 45° angle. For use with acetylene, the tip is suitable for general maintenance and repair applications such as hand-cutting rivet heads, bulkheads, and material up to 2 inches (5 cm).

◂ scroll to see more ▸
Part Number Tip Size Drill Size Material Thickness Speed Oxygen Acetylene
8549501-00-1 #1 56 (.046 in) 3/8 in (1 cm) 20-24 IPM 30-35 PSIG 3-5 PSIG
8549502-00-1 #2 54 (.055 in) 1/2 in (1.3 cm) 14-18 IPM 35-40 PSIG 3-7 PSIG
8549503-00-1 #3 52 (.063 in) 3/4 in (1.9 cm) 12-15 IPM 40-45 PSIG 5-10 PSIG
8549504-00-1 #4 50 (.070 in) 1 in (2.5 cm) 9-12 IPM 40-50 PSIG 5-11 PSIG
8549505-00-1 #5 52 (.063 in) 2 in (5 cm) 8-11 IPM 45-55 PSIG 6-13 PSIG
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Style 195 Cutting Tips Catalog Page
English
IN195T
M
Download
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872AD
AD
