Style 287 Cutting Tip

Two-piece natural gas and propane gouging tip

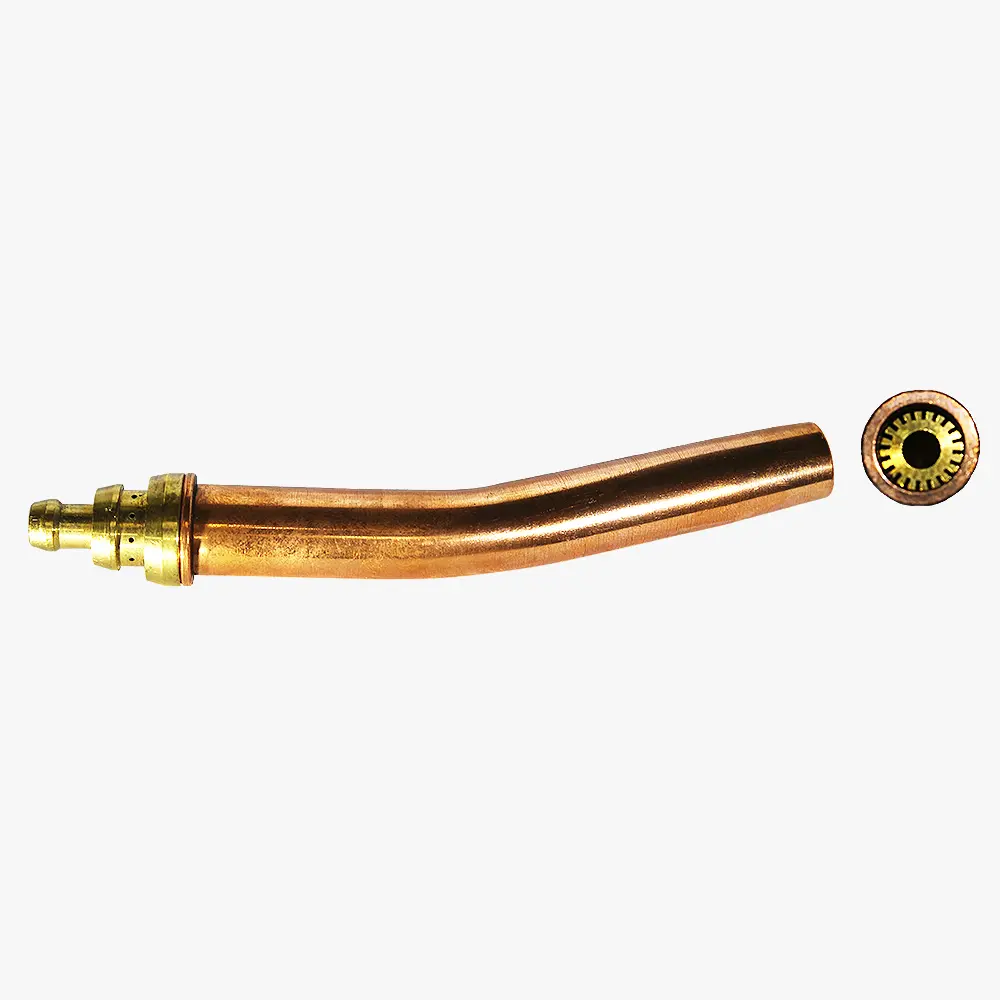

8131880-00-1 shown

CONCOA Style 287 two-piece cutting tip is a heavy preheat tip with a low-velocity oxygen stream designed for cutting, gouging, grooving, and removing imperfect welds using propane or natural gas. It is angled at 15° for more visibility and better arc control while protecting the user from the high heat generated by the gouging process. To control the depth of a gouge, variations to the angle of the torch, the speed of travel, arc stretch, and amperage adjustments must be made. Style 287 cutting tip is compatible with CONCOA Series 3000, 9000, 9500, or 9700 hand-cutting torches.

◂ scroll to see more ▸
Part Number Tip Size Material Thickness Speed Oxygen Natural Gas/Propane
8131876-00-1 #6 3 in (7.6 cm) 5-7 IPM 45-55 PSIG/400-500 SCFH 6-10 PSIG/22-110 SCFH
8131878-00-1 #8 6 in (15 cm) 4-6 IPM 55-65 PSIG/450-500 SCFH 8-12 PSIG/22-110 SCFH
8131880-00-1 #10 8 in (20 cm) 3-5 IPM 60-70 PSIG/750-850 SCFH 10-14 PSIG/25-120 SCFH
8131882-00-1 #12 10 in (25 cm) 3-4 IPM 45-55 PSIG/1000-1200 SCFH 10-16 PSIG/25-120 SCFH
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Style 297~ Style 287~ and Style 244 Cutting Tips Catalog Page
English
IN297T
M
Download
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872AD
AD
