Style 375 Cutting Tip

Two-piece, natural gas and propane cutting tip

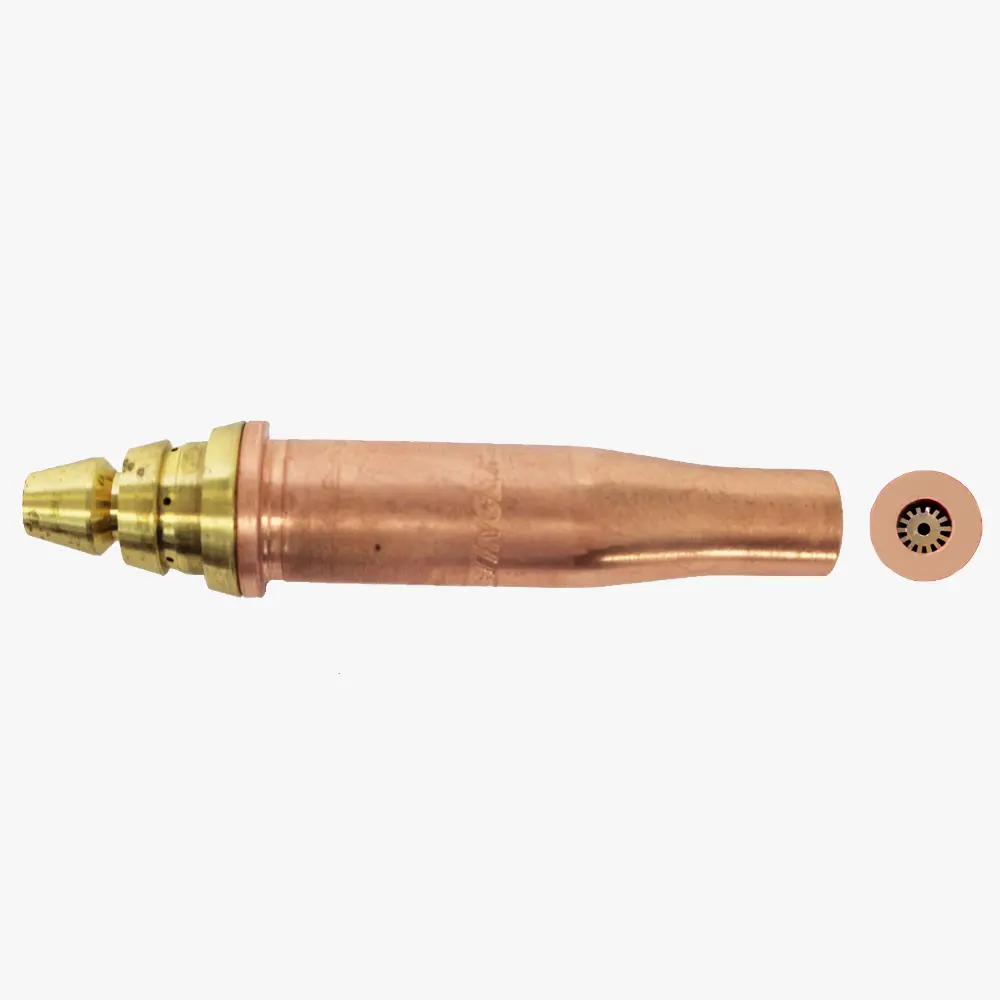

8133751-00-1 shown

CONCOA Style 375 two-piece, machine cutting tip is identical to Style 275 cutting tip, except the cutting oxygen bore is diverged to allow higher cutting oxygen pressure for increased speed in machine cutting operation. Style 375 cutting tip is suitable for cutting plate up to 4 inches (10.2 cm) with natural gas or propane. For plate over 4 inches (10.2 cm), the CONCOA Style 275 cutting tip may be used.

◂ scroll to see more ▸
Part Number Tip Size Drill Size Material Thickness Speed Oxygen Natural Gas Propane
8133750-00-1 #0 68 (.031 in) 3/8 in (0.9 cm) 20-22 IPM 70 PSIG/62 SCFH 2-4 PSIG/25-33 SCFH 2-3 PSIG/11-14 SCFH
8133751-00-1 #1 62 (.038 in) 1/2 in (1.3 cm) 18-22 IPM 80 PSIG/115 SCFH 3-5 PSIG/30-40 SCFH 3-4 PSIG/12-16 SCFH
8133751-00-1 #1 62 (.038 in) 5/8 in (1.6 cm) 18-21 IPM 85 PSIG/121 SCFH 3-5 PSIG/30-40 SCFH 3-4 PSIG/12-16 SCFH
8133752-00-1 #2 56 (.046 in) 1 in (2.5 cm) 18 IPM 95 PSIG/133 SCFH 3-5 PSIG/30-40 SCFH 3-4 PSIG/12-16 SCFH
8133753-00-1 #3 54 (.055 in) 1.5 in (3.8 cm) 16 IPM 90 PSIG/186 SCFH 4-6 PSIG/35-45 SCFH 4-5 PSIG/14-18 SCFH
8133754-00-1 #4 52 (.063 in) 2.5 in (6.4 cm) 12 IPM 90 PSIG/270 SCFH 4-6 PSIG/35-45 SCFH 4-5 PSIG/14-18 SCFH
8133755-00-1 #5 49 (.073 in) 3 in (7.6 cm) 11 IPM 90 PSIG/380 SCFH 5-7 PSIG/40-50 SCFH 5-6 PSIG/16-20 SCFH
8133755-00-1 #5 49 (.073 in) 4 in (10.2 cm) 10 IPM 90 PSIG/380 SCFH 5-7 PSIG/40-50 SCFH 5-6 PSIG/16-20 SCFH
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Style 275 and Style 375 Cutting Tips Catalog Page
English
IN275T
M
Download
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872AD
AD
