Style 345 Cutting Tip

Two-piece, propylene cutting tip

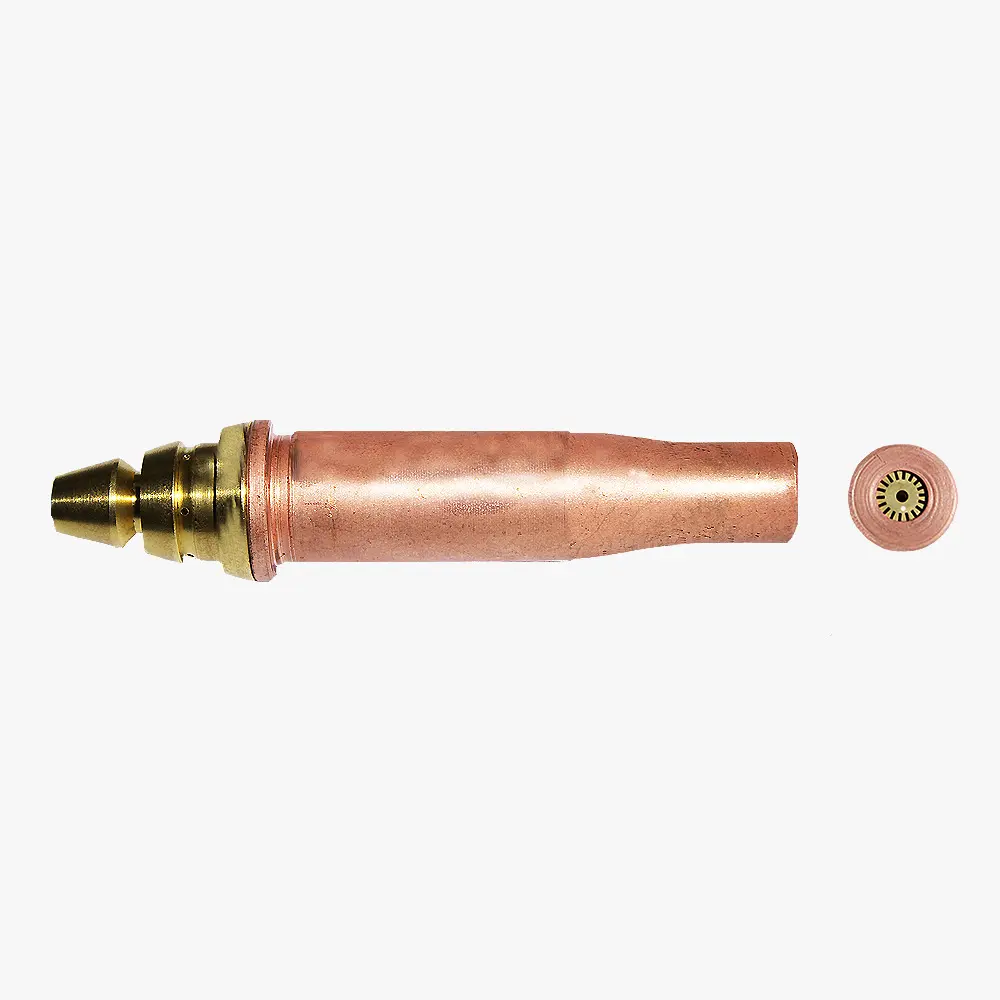

8133451-00-1 shown

Style 345 two-piece cutting tip is identical to Style 245 cutting tip, except that instead of a straight bore, it has a diverged cutting oxygen bore. Divergent bore cutting tips use higher cutting oxygen pressures, which allow for a 25 percent increased speed in machine-cutting operations. The Style 345 cutting tip is for use with CONCOA 4700 Series machine cutting torches and is suitable for cutting plate up to 4 inches (10.2 cm). For plate over 4 inches (10.2 cm), CONCOA Style 245 cutting tip may be used.

◂ scroll to see more ▸
Part Number Tip Size Drill Size Material Thickness Speed Oxygen Propylene
8133450-00-1 #0 68 (.031 in) 3/8 in (1 cm) 21-29 IPM 80 PSIG/65 SCFH 2-6 PSIG/4-10 SCFH
8133451-00-1 #1 62 (.038 in) 1/2 in-5/8 in (1.3 cm-1.6 cm) 19-26 IPM 90 PSIG/105 SCFH 2-6 PSIG/5-10 SCFH
8133452-00-1 #2 56 (.046 in) 1 in (2.5 cm) 17-24 IPM 90 PSIG/150 SCFH 2-6 PSIG/8-12 SCFH
8133453-00-1 #3 54 (.055 in) 1.5 in (3.8 cm) 12-16 IPM 90 PSIG/210 SCFH 2-8 PSIG/8-15 SCFH
8133454-00-1 #4 52 (.063 in) 2.5 in (6.4 cm) 10-15 IPM 90 PSIG/290 SCFH 4-10 PSIG/8-15 SCFH
8133455-00-1 #5 49 (.073 in) 2.75 in (7 cm) 9-13 IPM 80 PSIG/340 SCFH 2-6 PSIG/8-15 SCFH
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Style 245 and Style 345 Cutting Tips Catalog Page
English
IN245T
M
Download
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872AD
AD
