Style 759 Multi-Flame Heating Tip

Multi-flame heating tip for 800 Series torch

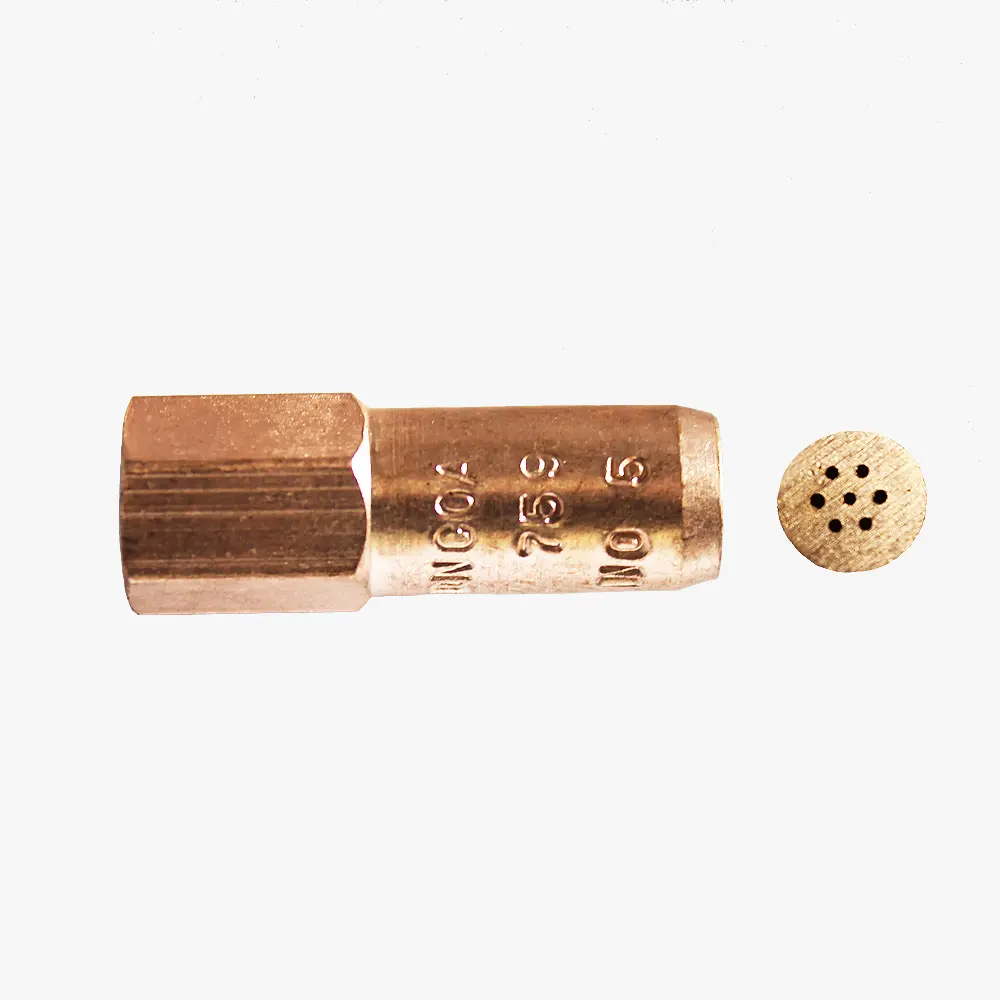

8100975-00-1 shown

Style 759 multi-flame heating tip efficiently concentrates heat using seven flames. This multi-flame heating tip is useful in light-range heating, soldering, and torch-brazing applications. CONCOA Style 759 heating tip is for use with CONCOA 800 Series torch handle and requires a mixer and either a 4-inch (10.2 cm) rigid extension, 9-inch (22.8 cm) flexible extension, or dual-tube flex extension, based on application needs.
Please note: The mixer assembly and a flexible extension are not included with Style 759 heating tip. They may be ordered separately based on application needs.

◂ scroll to see more ▸
Part Number Tip Size Requires Mixer
(not included)		 Requires Extension (not included)
8100975-00-1 #5
8110890 8100829-01-1 Dual Flexible Extension,
8111411 Flexible 9 in (22.8 cm) Extension,
8111412 Rigid 4 in (10.2 cm) Extension
8100977-00-1 #7 8110890 8100829-01-1 Dual Flexible Extension,
8111411 Flexible 9 in (22.8 cm) Extension,
8111412 Rigid 4 in (10.2 cm) Extension
8100978-00-1 #8 8110890 8100829-01-1 Dual Flexible Extension,
8111411 Flexible 9 in (22.8 cm) Extension,
8111412 Rigid 4 in (10.2 cm) Extension
8100979-00-1 #9 8110890 8100829-01-1 Dual Flexible Extension,
8111411 Flexible 9 in (22.8 cm) Extension,
8111412 Rigid 4 in (10.2 cm) Extension
8100980-00-1 #10 8110890 8100829-01-1 Dual Flexible Extension,
8111411 Flexible 9 in (22.8 cm) Extension,
8111412 Rigid 4 in (10.2 cm) Extension
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Style 759~ 757~ and Style 760 Heating Tips Catalog Page
English
IN759HT
M
Download
Safe Practices in Oxy-Fuel Welding and Cutting Brochure
English
ADE0872AD
AD
Download
The Universal Heating Tip for Any Gas Brochure
English
ADC1148H
H
