324 Series Regulator

Three-port, stainless steel barstock, point-of-use regulator for high purity gas applications

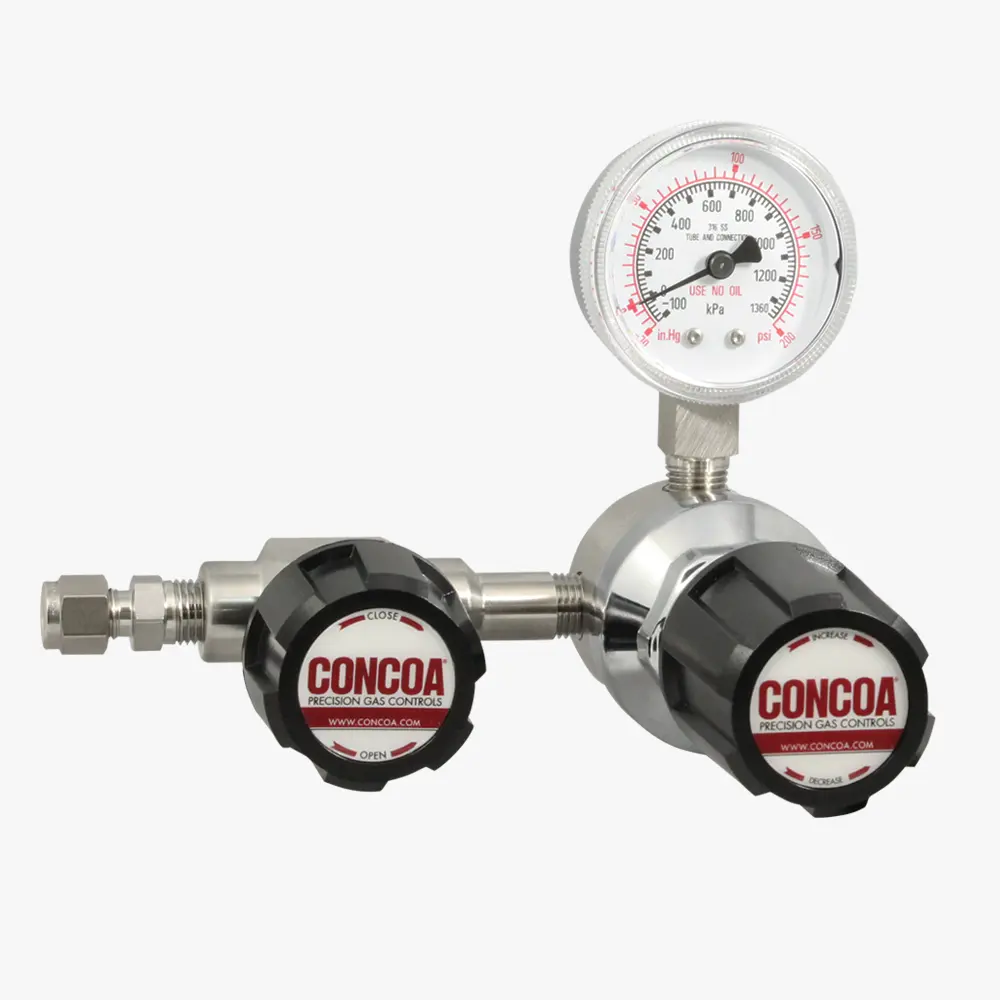

3243031-01-000 shown
Three-port, stainless steel barstock, point-of-use regulator for high purity gas applications

The 324 Series regulator is intended for secondary pressure control of high purity (up to grade 5.5) and corrosive gases. Unlike most pipeline equipment, the regulator is rated to full cylinder pressure, making it ideal for point-of-use pressure control in high purity gas distribution systems. While the 324 Series regulator may be used with mildly reactive gases, it is not for use with toxic or highly corrosive gases.

  • 316L stainless steel diaphragm prevents inboard diffusion
  • CAPSULE® seat design features integral 360° filtration
  • Low wetted surface area minimizes purge requirements
  • Rear panel mount eases installation
  • Spectometric helium leak check verifies leak integrity
  • Max inlet pressure (bare body): 3000 PSIG (210 BAR)
  • Body: 316L stainless steel barstock
  • Bonnet: Chrome-plated, die-cast zinc
  • Gauge: 2 in (50 mm) diameter stainless steel with plated case
  • Seat: PTFE
  • Filter: Patented 10-micron 316 stainless steel mesh
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Diaphragm: 316L stainless steel
  • Cv: 0.1
  • Helium leak integrity: 1 x 10⁻⁸ scc/sec
  • Internal seals: PTFE
  • Ports (bare body): 1/4 in FNPT
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; PED 2014/68/EU; ANSI/ASME B40.1; CRN OH5216
◂ scroll to see more ▸

See catalog page for ordering information.
