Active
53 Series Point-of-Use Panel

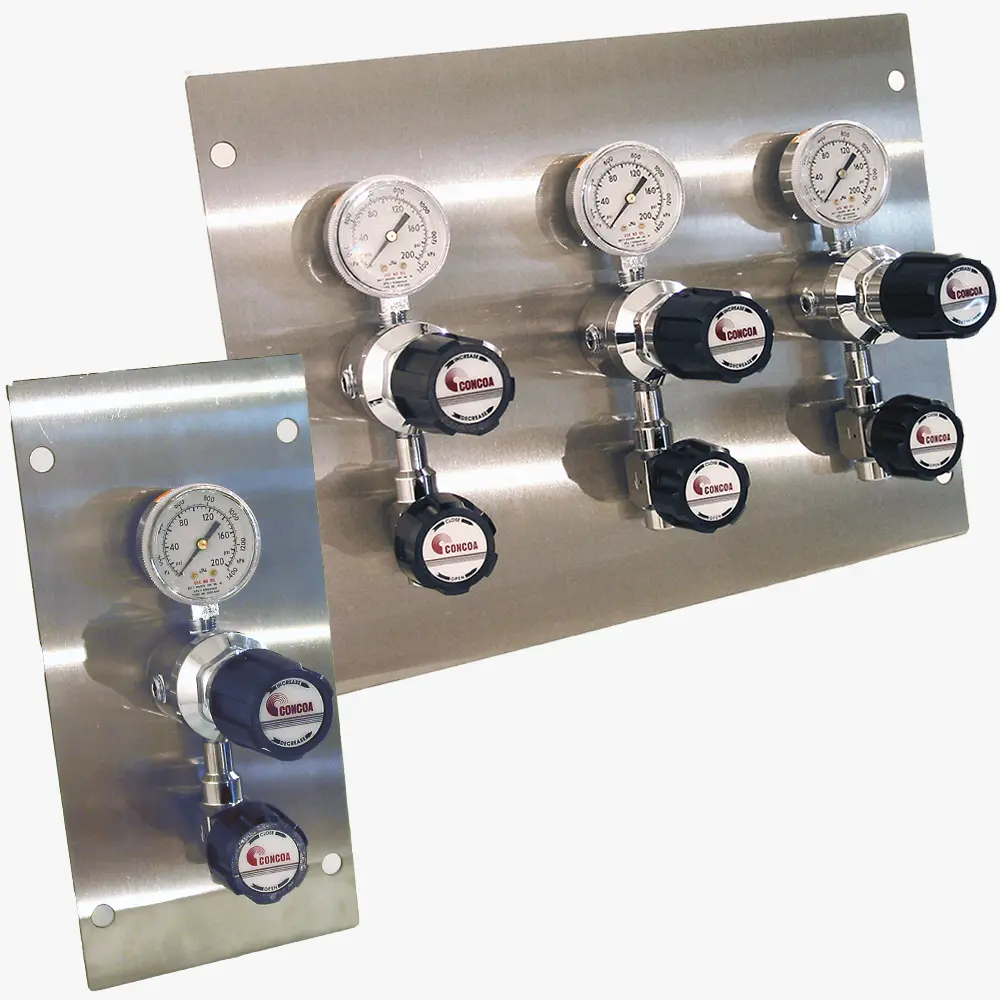

Point-of-use panel featuring 300 Series high purity regulators
53C3330-01-001, 53S5000-01-001 shown
The 53 Series Point-of-Use Panel provides a practical and economical means to control gas pressure and flow at the point-of-use in process or laboratory applications. The panel utilizes up to four 307 or 327 Series high purity regulators with rear entry inlet ports and diaphragm outlet valves. The back-port design allows for front panel mounting of the regulators while concealing the inlet piping behind the panel. The CONCOA 53 Series point-of-use panel is intended to provide final pressure control in gas distribution systems and is ideal for a wide range of laboratory applications.
- Modular, custom configured design enables flexible installation and operation
- Rear entry regulator inlet port allows front panel mounting with piping behind the panel
- Five individually selectable pressure ranges support a broad range of applications
- 14-gauge stainless steel panel provides clean corrosion resistant installation
- Stainless steel diaphragm prevents inboard diffusion
- High purity diaphragm outlet valve permits gas flow control and positive shut-off
