529 Series Cryogenic Transfer Hose

Flexible, all-metal hose for gas transfer applications

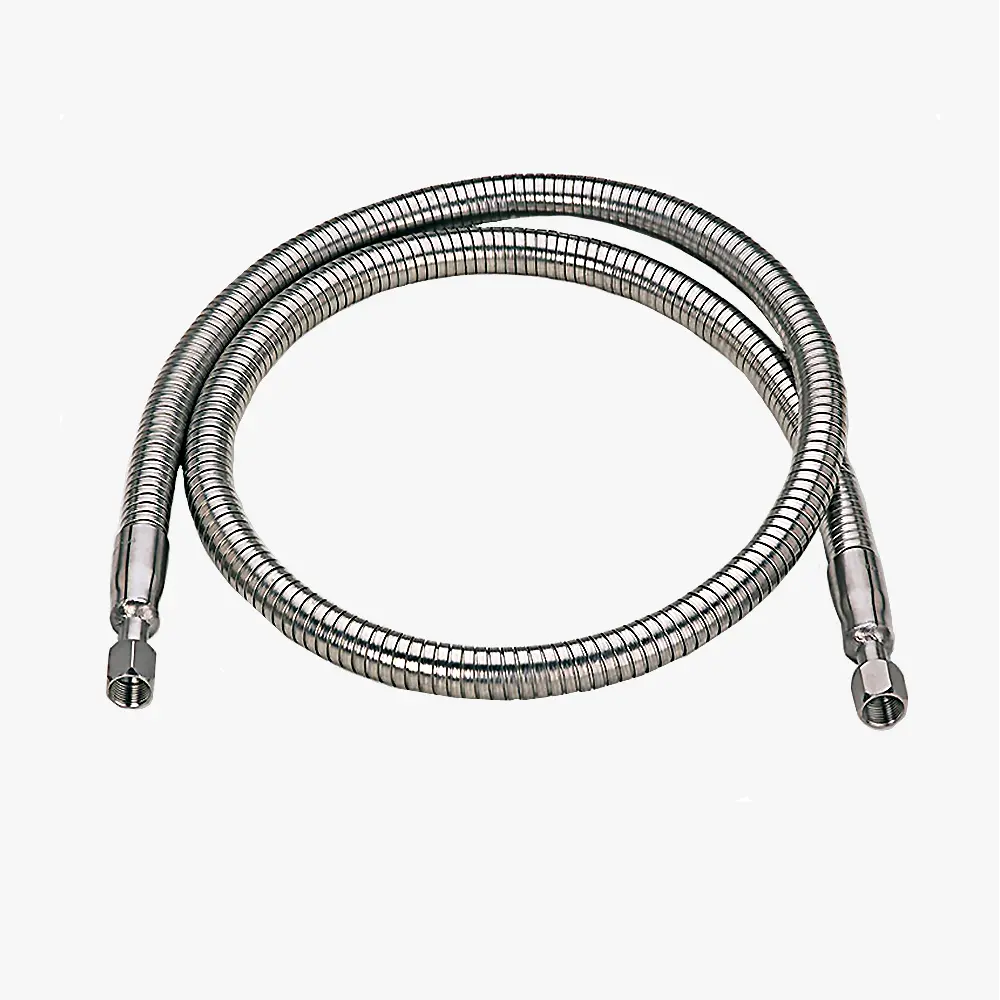

5290245 shown
Flexible, all-metal hose for gas transfer applications

The 529 Series Cryogenic Transfer Hose is specifically designed for the transfer of cryogenic gases in gas phase applications. The all stainless steel construction is virtually unaffected by cryogenic temperatures and offers complete flexibility and durability combined with fast cool-down and less product loss. The full armor casing protects the hose from abrasion and damage for increased serviceability and life. For liquid withdrawal in cryogenic applications, CONCOA recommends 551 Series vacuum-jacketed Hose.

  • All-welded construction eliminates permeation
  • Armor casing protects the hose from abrasion and provides anti-kink protection
  • Smooth transition from hose to fitting increases flow rate and decreases contamination
  • Max working pressure: 1000 PSIG (70 BAR)
  • Minimum burst pressure: 5500 PSIG (380 BAR)
  • Minimum bend radius: 6 in (152.4 mm)
  • Inner diameter: 0.500 in
  • Outer diameter: 1.00 in
  • Temperature range: -450°F to 1500°F (-265°C to 815°C)
  • Inner core: 321 stainless steel
  • Armor casing: 304L stainless steel armor
  • Conformances: Cleaned for oxygen service; CRN OD18143.5
◂ scroll to see more ▸
Part Number Description Weight
5290245 4 ft (1.2 m) Cryogenic Hose for Liquid Oxygen featuring 304 Stainless Steel CGA 440 (5/8 in flare) Cylinder Connections (both ends) 2.2 lbs (1 kg)
5290246 5 ft (1.5 m) Cryogenic Hose for Liquid Oxygen featuring 304 Stainless Steel CGA 440 (5/8 in flare) Cylinder Connections (both ends) 2.8 lbs (1.3 kg)
5290247 6 ft (2 m) Cryogenic Hose for Liquid Oxygen featuring 304 Stainless Steel CGA 440 (5/8 in flare) Cylinder Connections (both ends) 3.4 lbs (1.5 kg)
5290248 10 ft (3 m) Cryogenic Hose for Liquid Oxygen featuring 304 Stainless Steel CGA 440 (5/8 in flare) Cylinder Connections (both ends) 5.8 lbs (2.6 kg)
5290249 12 ft (3.6 m) Cryogenic Hose for Liquid Oxygen featuring 304 Stainless Steel CGA 440 (5/8 in flare) Cylinder Connections (both ends) 7.0 lbs (3.2 kg)
5290250 4 ft (1.2 m) Cryogenic Hose for Liquid Nitrogen and Argon featuring 304 Stainless Steel CGA 295 (1/2 in flare) Cylinder Connections (both ends) 2.2 lbs (1 kg)
5290251 5 ft (1.5 m) Cryogenic Hose for Liquid Nitrogen and Argon featuring 304 Stainless Steel CGA 295 (1/2 in flare) Cylinder Connections (both ends) 2.8 lbs (1.3 kg)
5290252 6 ft (1.8 m) Cryogenic Hose for Liquid Nitrogen and Argon featuring 304 Stainless Steel CGA 295 (1/2 in flare) Cylinder Connections (both ends) 3.4 lbs (1.5 kg)
5290253 10 ft (3 m) Cryogenic Hose for Liquid Nitrogen and Argon featuring 304 Stainless Steel CGA 295 (1/2 in flare) Cylinder Connections (both ends) 5.8 lbs (2.6 kg)
5290254 12 ft (3.6 m) Cryogenic Hose for Liquid Nitrogen and Argon featuring 304 Stainless Steel CGA 295 (1/2 in flare) Cylinder Connections (both ends) 7.0 lbs (3.2 kg)
5290266 4 ft (1.8 m) Cryogenic Hose for Liquid Carbon Dioxide featuring Brass CGA 622 Cylinder Connections (both ends) 2.2 lbs (1 kg)
5290267 6 ft (3.6 m) Cryogenic Hose for Liquid Carbon Dioxide featuring Brass CGA 622 Cylinder Connections (both ends) 3.4 lbs (1.5 kg)
5290268 CGA 622 x 1/2 in MNPT Brass Liquid Cylinder Withdrawal Adapter 0.5 lbs (0.3 kg)
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Liquid Cylinder Transfer Hoses Catalog Page
English
RS529H
AG
Download
CONCOA Life Sciences Brochure
English
SPF1010
B
