630 Series Cryogenic Manifold

Cryogenic liquid manifold for industrial gas applications

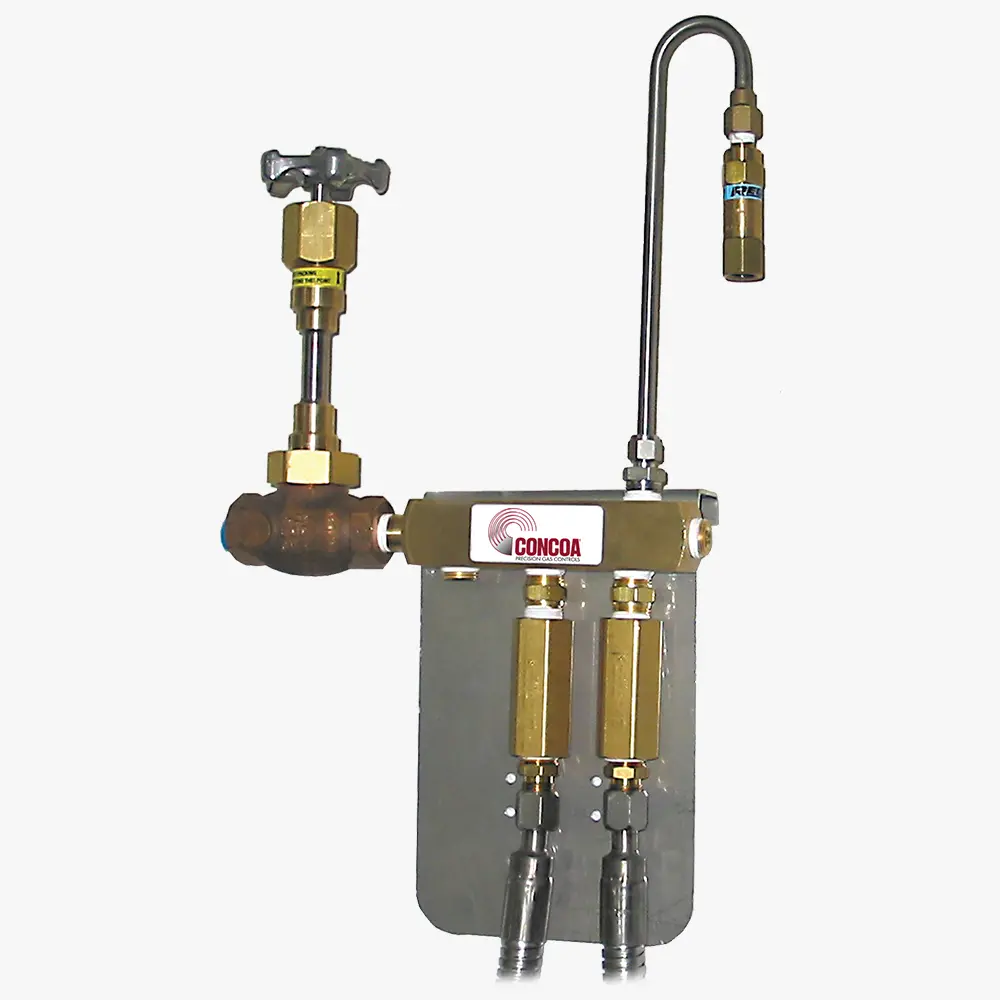

6301122-02-001 shown

The 630 Series Cryogenic Manifold is specifically designed for combining cryogenic liquid cylinders in gas phase applications. When coupled with the 629 Series Vent Kit, the 630 Series Cryogenic Manifold enables the user to extend the flow range of common liquid cylinders up to four times the rated gaseous flow capacity. Available with a wall or cylinder mount panel, the 630 Cryogenic Manifold allows the user to respond quickly to the ever-changing job shop environment. Rated up to 600 PSIG MWP, CONCOA's 630 Series Cryogenic Manifold has the flexibility to optimize 230, 350, and 500 PSIG-rated liquid cylinders. To manifold liquid cylinders in cryogenic applications, CONCOA recommends 57V Series Cryogenic Headers.

  • Extended stem isolation valve allows positive shut off under extreme temperatures
  • Spring-loaded check valve eliminates excess flash loss
  • Modular design offers simple field expandability
  • Stainless panel mount enables wall or portable mounting
  • Optional pipe-away relief prevents overpressurization
  • Max inlet pressure: 550 PSIG (38 BAR)
  • Manifold block: Brass
  • Temperature range: -320°F to 165°F (-195°C to 75°C)
  • Outlet connections: 1/2 in FNPT
  • Weight (manifold and bracket): 14.5 lbs (6.5 kg)
  • Conformances: CRN OH15806.5
◂ scroll to see more ▸
Part NumberDescription
630 Series Cryogenic ManifoldsSee Catalog Page for Ordering Information
5500760Brass CGA Adapter for Inerts with 1/2 in MNPT x CGA 295
8350046Stainless Steel CGA Apdapter for Oxygen with 1/2 in MNPT x CGA 440
5290002-320Stainless Steel CGA Adapter for Carbon Dioxide with 1/2 in MNPT x CGA 320
5290268Brass CGA Adapter for Carbon Dioxide with 1/2 in MNPT x CGA 622
8306475Stainless Steel Nipple, 1/2 in MNPT x 1 11/16 in (42.9 mm)
8306435Brass Nipple, 1/2 in MNPT x 1 11/16 in (42.9 mm)
8300034Cryogenic Check Valve, 1/2 in FNPT
◂ scroll to see more ▸
ID Number
630 Series Cryogenic Manifolds Catalog Page
630 Series Cryogenic Manifold Systems Installation and Operation
CONCOA Manifold Solutions Brochure
CRN File OH15806
