537 Series AutoSwitch GL
Liquid primary, high-pressure reserve switchover with stainless steel internals for ultra-high purity gas applications

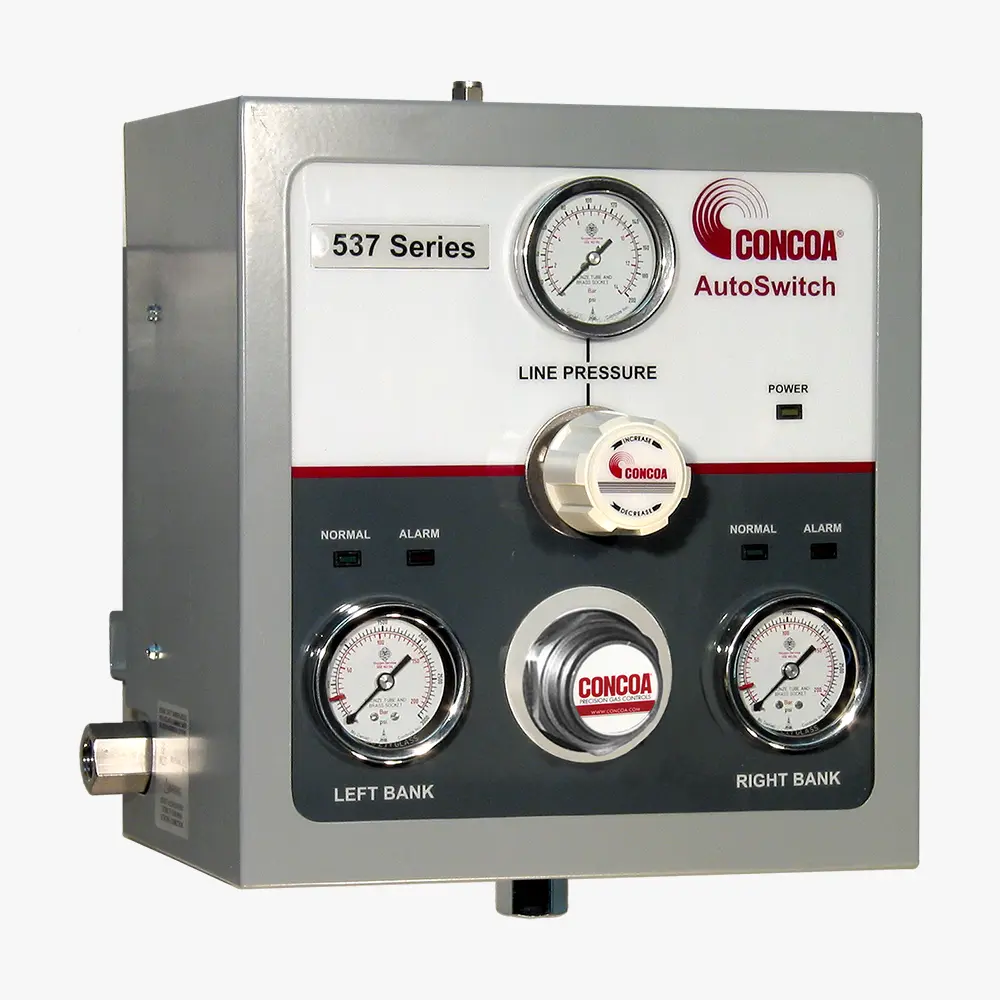

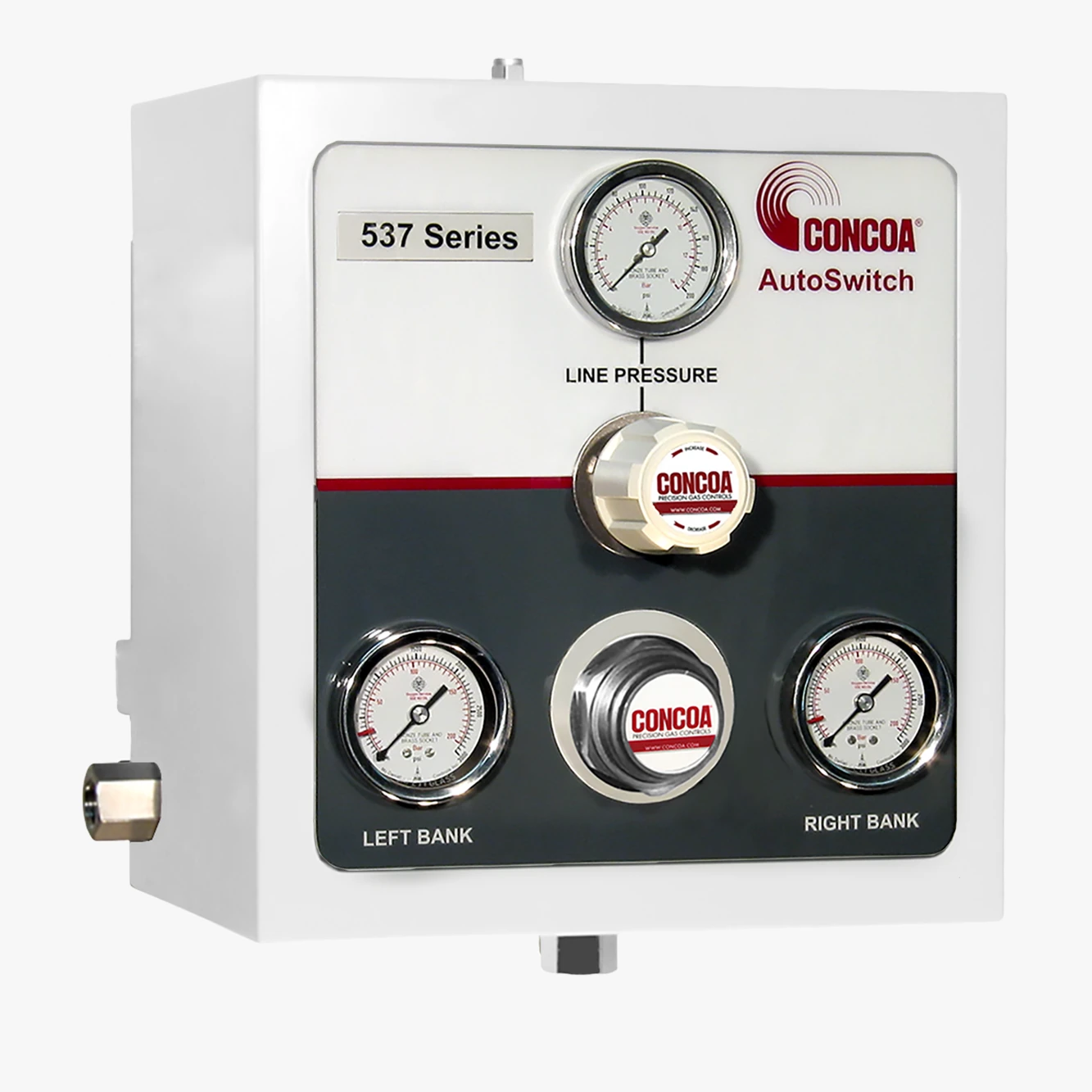

5373004-01-001 shown
The 537 AutoSwitch GL is a continuous gas delivery system for ultra-high purity gas service that automatically changes cylinder or bank priority from cryogenic sources to a reserve bank of high pressure cylinders without transmitting pressure fluctuations to the use line. The Autoswitch is equipped with LED status lights to indicate the condition of the gas cylinders. The CONCOA 537 Autoswitch can also be used in conjunction with the Altos 2™ remote alarm and includes a separate connector to construct an interface cable between the optional remote alarm and the Autoswitch. For complete flexibility in source selection, including low-loss technology, consider the CONCOA IntelliSwitch gas management system.
- 400 Series Regulators with CAPSULE® seat technology feature 360° filtration
- Metal-to-metal diaphragm seal prevents gas contamination
- Integral line regulator maintains stable line pressure during a changeover
- Variable line pressure allows on-site line pressure changes
- Preset switching pressure blocks tampering or adjustment
- Acrylic powdered-coated steel enclosure resists cracking and corrosion
- Optional manifold system provides easy installation
- Max inlet pressure: 3000 PSIG (210 BAR)
- Temperature range: -40°F to 140°F (-40°C to 60°C)
- Maximum flow: 400 SCFH (190 LPM) @100 PSIG (7 BAR)
- Cv: 0.1
- Inlet connections: 1/2 in FNPT
- Outlet connections: 1/4 in stainless steel compression tube
- Relief valve outlet: 1/2 in FNPT
- Helium leak integrity: 1 x 10⁻⁸ scc/sec
- Line regulator: 316L stainless steel barstock
- Diaphragms: 316L stainless steel
- Enclosure: Powder-coated steel
- Tubing and fittings: 316L stainless steel
- Internal seals: PTFE
- Seats: PTFE (line regulators); PCTFE (inlet regulators)
- Pressure gauges and switches: 316L stainless steel
- Check valves: 316L stainless steel with FKM seals
- Weight: 40 lbs (18 kg)
- Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; PED 2014/68/EU; CRN OH5216.5; CRN OH17950.5
◂ scroll to see more ▸
See catalog page for ordering information.
