535 Series Manual Control Valve

Manual control valve for high purity gases with low cylinder pressures

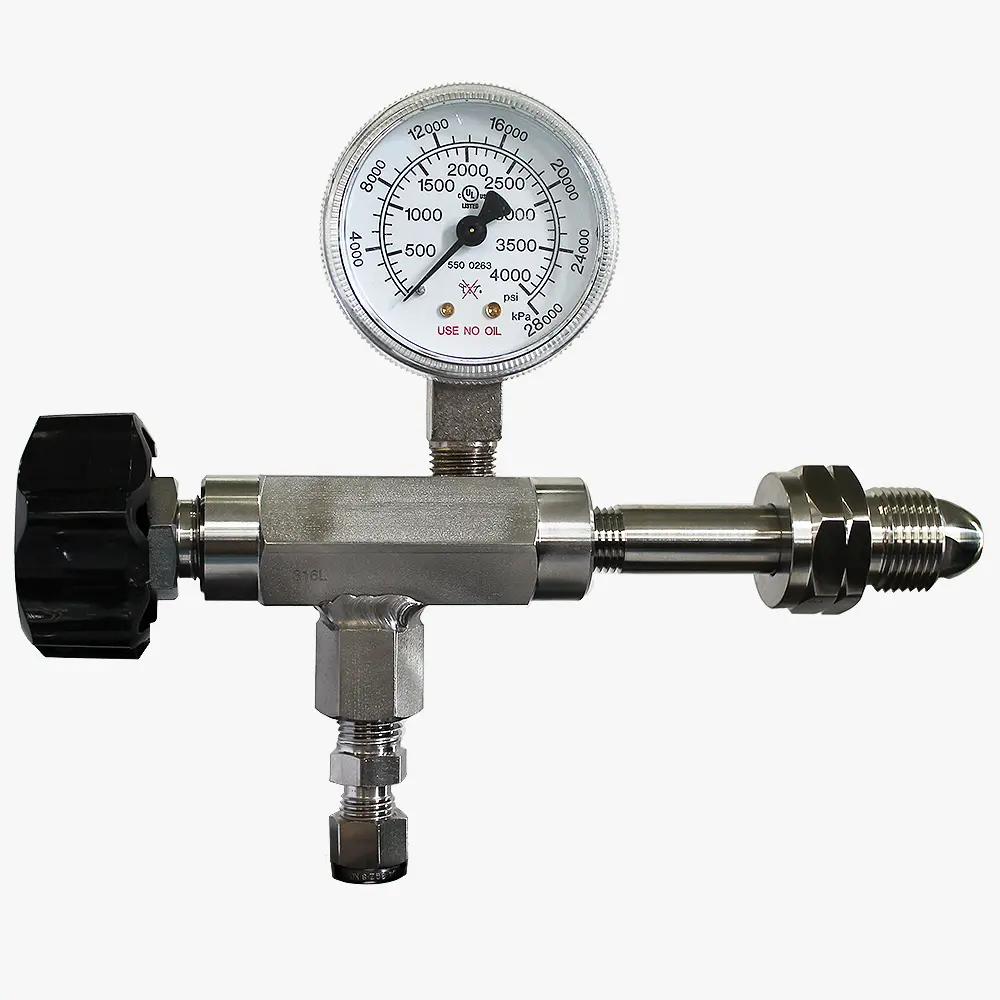

5352033-01-510 shown
Manual control valve for high purity gases with low cylinder pressures

The 535 Series Manual Control Valve provides an economical means of controlling gas flow directly from a cylinder for lower-pressure gases. The valve does not control pressure or back pressure in a system. If greater flow accuracy or pressure control is required, CONCOA recommends the use of an appropriate regulator. The 535 Series manual control valve is available with a variety of connections, with or without a pressure gauge.

  • PTFE packing ensures smooth, leak-free operation
  • 1/4 in FNPT outlet accommodates any pressure hose or gas tube assembly
  • Packed type design offers basic flow metering capability
  • Wide range of cylinder connections accommodates system flexibility
  • Max inlet pressure: 3000 PSIG (210 BAR)
  • Temperature range: -65°F to 450°F (-54°C to 232°C)
  • Packing: PTFE
  • Cv: 0.35
  • Weight: 1.1 lbs (.5 kg) with gauge; 1.0 lbs (.45 kg) without gauge
◂ scroll to see more ▸
Part Number Description Inlet/Outlet Connections
5352030-01-000Manual Control Valve with Plated Brass
Barstock Body (No Pressure Gauge) 		No Cylinder Connection Inlet x
1/4 in Compression Tube Fitting
5352030-01-CONManual Control Valve with Plated Brass
Barstock Body (No Pressure Gauge) 		CGA Inlet Connection x 1/4 in
Compression Tube Fitting
5352031-01-000Manual Control Valve with Plated Brass
Barstock Body and 0-4000 PSIG (0-28,000 kPa)
Dual-scale Inlet Pressure Gauge 		No Cylinder Connection Inlet x
1/4 in Compression Tube Fitting
5352031-01-CONManual Control Valve with Plated Brass
Barstock Body and 0-4000 PSIG (0-28,000 kPa)
Dual-scale Inlet Pressure Gauge		 CGA Inlet Connection x 1/4 in
Compression Tube Fitting
5352032-01-000Manual Control Valve with 316L Stainless Steel
Barstock Body (No Pressure Gauge) 		No Cylinder Connection Inlet x
1/4 in Compression Tube Fitting
5352032-01-CONManual Control Valve with 316L Stainless Steel
Barstock Body (No Pressure Gauge) 		CGA Inlet Connection x 1/4 in
Compression Tube Fitting
5352033-01-000Manual Control Valve with 316L Stainless Steel
Barstock Body and 0-4000 PSIG (0-28,000 kPa)
Dual-scale Inlet Pressure Gauge 		No Cylinder Connection Inlet x
1/4 in Compression Tube Fitting
5352033-01-CONManual Control Valve with 316L Stainless Steel
Barstock Body and 0-4000 PSIG (0-28,000 kPa)
Dual-scale Inlet Pressure Gauge		 CGA Inlet Connection x 1/4 in
Compression Tube Fitting
5352034-01-000Manual Control Valve with Dursan® Treated 316L
Stainless Steel Barstock Body (No Pressure Gauge) 		No Cylinder Connection Inlet x
1/4 in Compression Tube Fitting
5352034-01-CONManual Control Valve with Dursan Treated 316L
Stainless Steel Barstock Body (No Pressure Gauge) 		CGA Inlet Connection x 1/4 in
Compression Tube Fitting
5352035-01-000Manual Control Valve with Dursan Treated 316L
Stainless Steel Barstock Body and 0-4000 PSIG
(0-28,000 kPa) Dual-scale Inlet Pressure Gauge 		No Cylinder Connection Inlet x
1/4 in Compression Tube Fitting
5352035-01-CONManual Control Valve with Dursan Treated 316L
Stainless Steel Barstock Body and 0-4000 PSIG
(0-28,000 kPa) Dual-scale Inlet Pressure Gauge		CGA Inlet Connection x 1/4 in
Compression Tube Fitting

*Specify Inlet Fitting in Part Number, e.g., For CGA 320: Part Number = 5352030-01-320; 000 in Part Number = No Cylinder Connection Inlet

◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
Manual Control Valves Catalog Page
English
RS5VLV
AG
