Pneumatic Tubing

Soft polymer tubing for connecting 586 Series shut-off valves

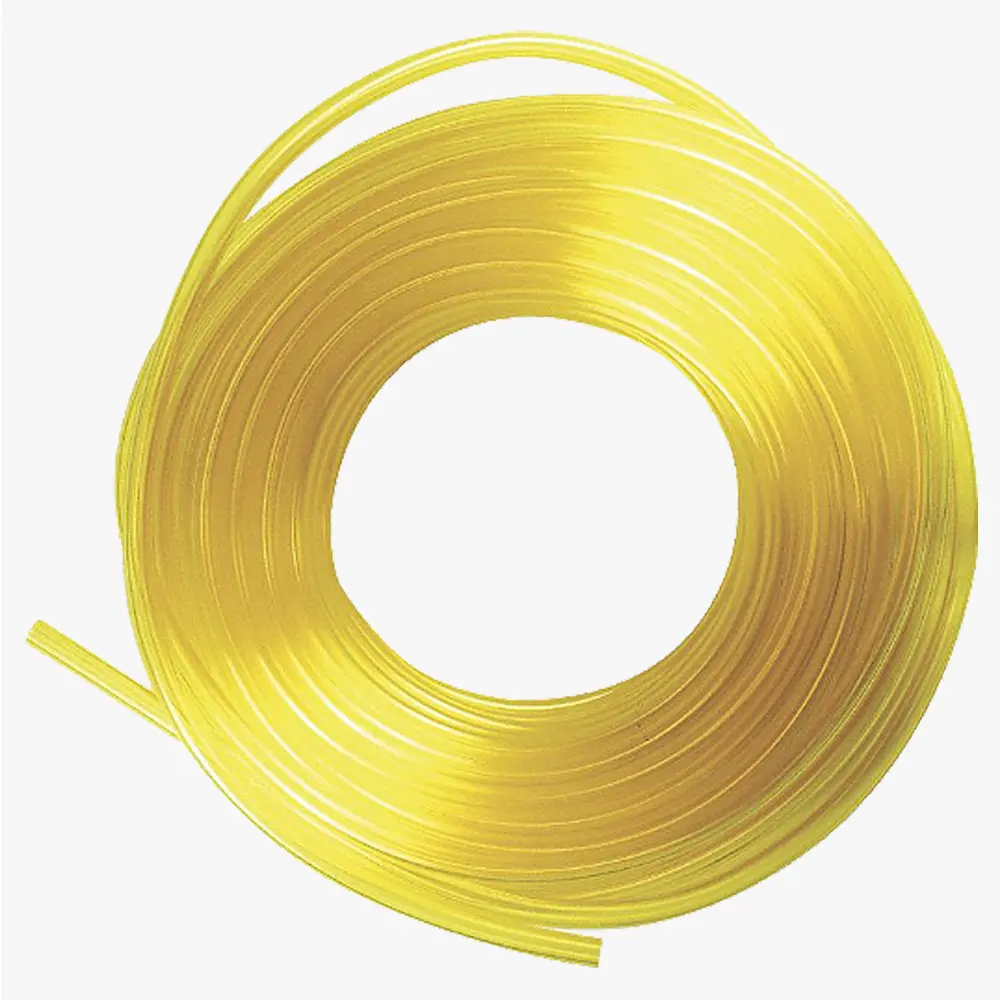

5869001-500 shown
Soft polymer tubing for connecting 586 Series shut-off valves

CONCOA single-tube, pneumatic tubing for connecting the outlets of a 585 Series shut-off controller to 586 Series emergency shut-off valves. This high-performance pneumatic tubing is strong, flexible, heat resistant, and suitable for laboratory gas delivery systems using non-corrosive, high purity, or flammable gases.

  • Chemical resistance offers reliable performance and long life
  • Fittings with hose barbs provide a secure and reliable connection without hose clamps
  • Material: Polyurethane
  • Diameter: 1/8 in ID x 1/4 in OD
  • Wall thickness: 1/16 in
  • Working pressure: 0 -105 PSIG (7 BAR)
  • Max temperature: 120°F (49°C)
  • Burst pressure: 425 PSI @ 70°F (21°C)
  • Minimum length: 25 ft (7.6 m)
  • Maximum length: 500 ft (152 m)
  • Color: Transparent yellow
◂ scroll to see more ▸
Part NumberDescription
5869001-25 25 ft (8 m) Soft 1/8 in Polymer Tubing to Connect a 585 Series Emergency Shut-Off Controller to
586 Series High Purity Pneumatic Shut-Off Valves
5869001-100 100 ft (30.5 m) Soft 1/8 in Polymer Tubing to Connect a 585 Series Emergency Shut-Off Controller to
586 Series High Purity Pneumatic Shut-Off Valves
5869001-500 500 ft (152.5 m) Soft 1/8 in Polymer Tubing to Connect a 585 Series Emergency Shut-Off Controller to
586 Series High Purity Pneumatic Shut-Off Valves
5869008-100 100 ft (30 m) of Eight-strand Ribbon of Soft 1/8-inch Tubing to Connect all Outlets of a 585 Series Emergency Shut-Off Controller
to 586 Series High Purity Pneumatic Shut-Off Diaphragm Valves
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
CONCOA Safe Handling of Flammable Gases in Laboratories Brochure
English
SPF650
C
